M80-5C11805M2 datasheet, PDF - EEWORLD Datasheet

M80-5C11805M2: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2x0.4, Black Insulator; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

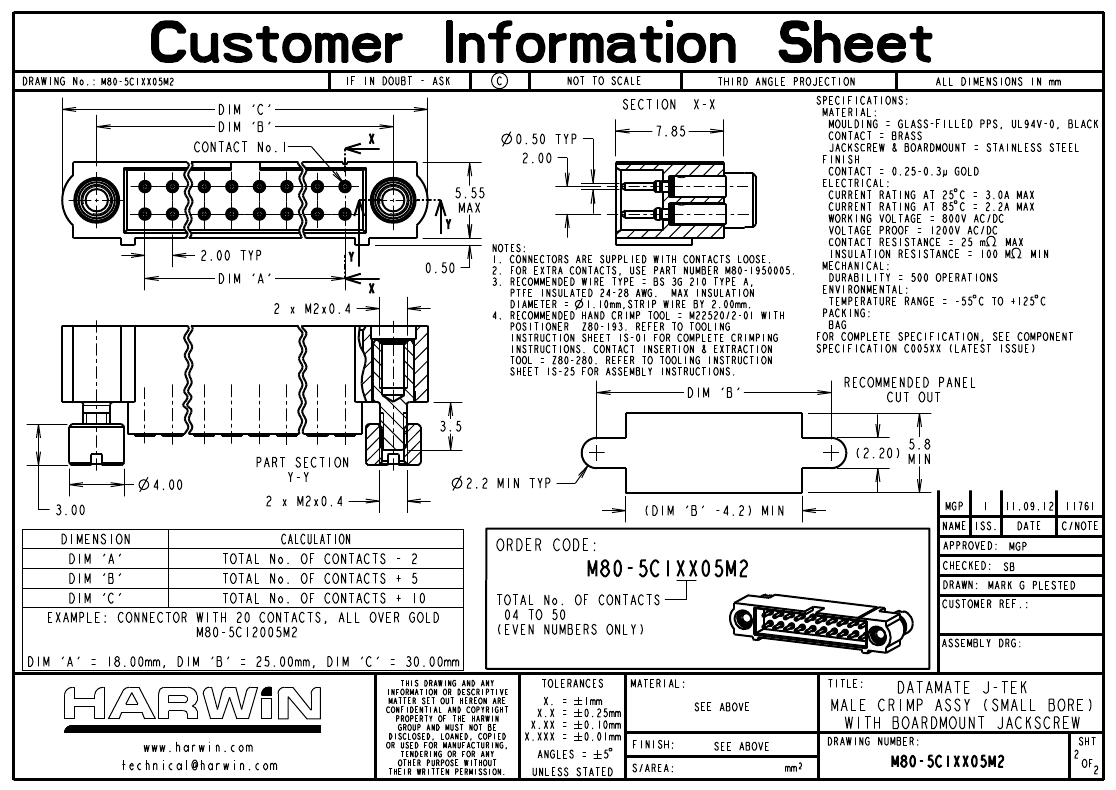

M80-5C11805M2 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2x0.4, Black Insulator

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.238 inch
subject depth	0.309 inch
body length	0.709 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Manufacturer's serial number	M80-5C1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	18
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG
