SY89464U
Precision LVPECL 1:10 Fanout with 2:1 Runt
Pulse Eliminator MUX and Internal Termination
General Description
The SY89464U is a low jitter 1:10 LVPECL fanout
buffer with a 2:1 differential input multiplexer (MUX)
optimized for redundant source switchover
applications. Unlike standard multiplexers, the
SY89464U’s unique 2:1 Runt Pulse Eliminator
(RPE) MUX prevents any short cycles or “runt”
pulses during switchover. In addition, a unique Fail-
Safe Input (FSI) protection prevents metastable
output conditions when the selected input clock fails
to a DC voltage (voltage between the pins of the
differential input drops below 100mV).
The differential input includes Micrel’s unique, 3-pin
internal termination architecture that allows
customers to interface to any differential signal (AC-
or DC-coupled) as small as 100mV (200mV
PP
)
without any level shifting or termination resistor
networks in the signal path. The outputs are 800mV,
100K-compatible LVPECL with fast rise/fall times
guaranteed to be less than 220ps.
The SY89464U operates from a 2.5V ±5% or 3.3V
±10% supply and is guaranteed over the full
industrial temperature range of –40°C to +85°C. The
SY89464U is part of Micrel’s high-speed, Precision
®
Edge product line.
All support documentation can be found on Micrel’s
web site at:
www.micrel.com.
Precision Edge
®
Features
•
Selects between two sources, and provides 10
precision LVPECL copies
•
Guaranteed AC performance over temperature and
supply voltage:
– Wide operating frequency: 1kHz to >1.5GHz
– < 1100ps In-to-Out t
pd
– < 220ps t
r
/t
f
•
Unique, patent-pending MUX input isolation design
minimizes adjacent channel crosstalk
•
Fail-Safe Input prevents oscillations
•
Ultra-low jitter design:
– <1ps
RMS
random jitter
– <1ps
RMS
cycle-to-cycle jitter
– <10ps
PP
total jitter (clock)
– <0.7ps
RMS
MUX crosstalk induced jitter
•
Unique patented internal termination and VT pin
accepts DC- and AC-coupled inputs (CML, PECL,
LVDS)
•
800mV LVPECL output
•
2.5V ±5% or 3.3V ±10% supply voltage
•
Output enable
•
-40°C to +85°C industrial temperature range
•
Available in 44-pin (7mm x 7mm) QFN package
Applications
•
Redundant clock switchover
•
Fail-safe clock protection
Markets
•
•
•
•
Precision Edge is a registered trademark of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
LAN/WAN
Enterprise servers
ATE
Test and measurement
December 2007
M9999-120607-C
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89464U
Typical Application

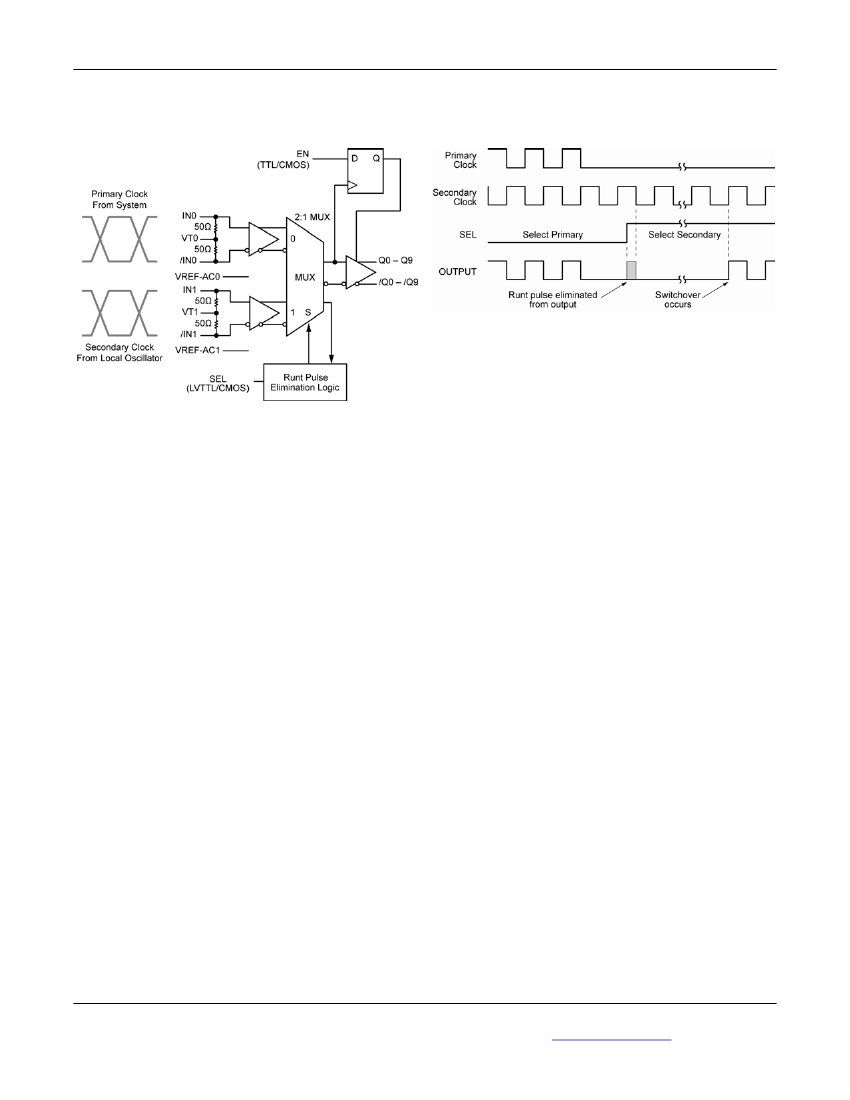

Simplified Example Illustrating Runt Pulse Eliminator
(RPE) when Primary Clock Fails
December 2007
2
M9999-120607-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89464U
Ordering Information
(1)
Part Number
SY89464UMY
SY89464UMYTR
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals Only.
2. Tape and Reel.
(2)
Package
Type
QFN-44
QFN-44
Operating
Range
Industrial
Industrial
Package Marking
SY89464U with
Pb-Free bar-line Indicator
SY89464U with
Pb-Free bar-line Indicator
Lead
Finish
Matte-Sn
Pb-Free
Matte-Sn
Pb-Free

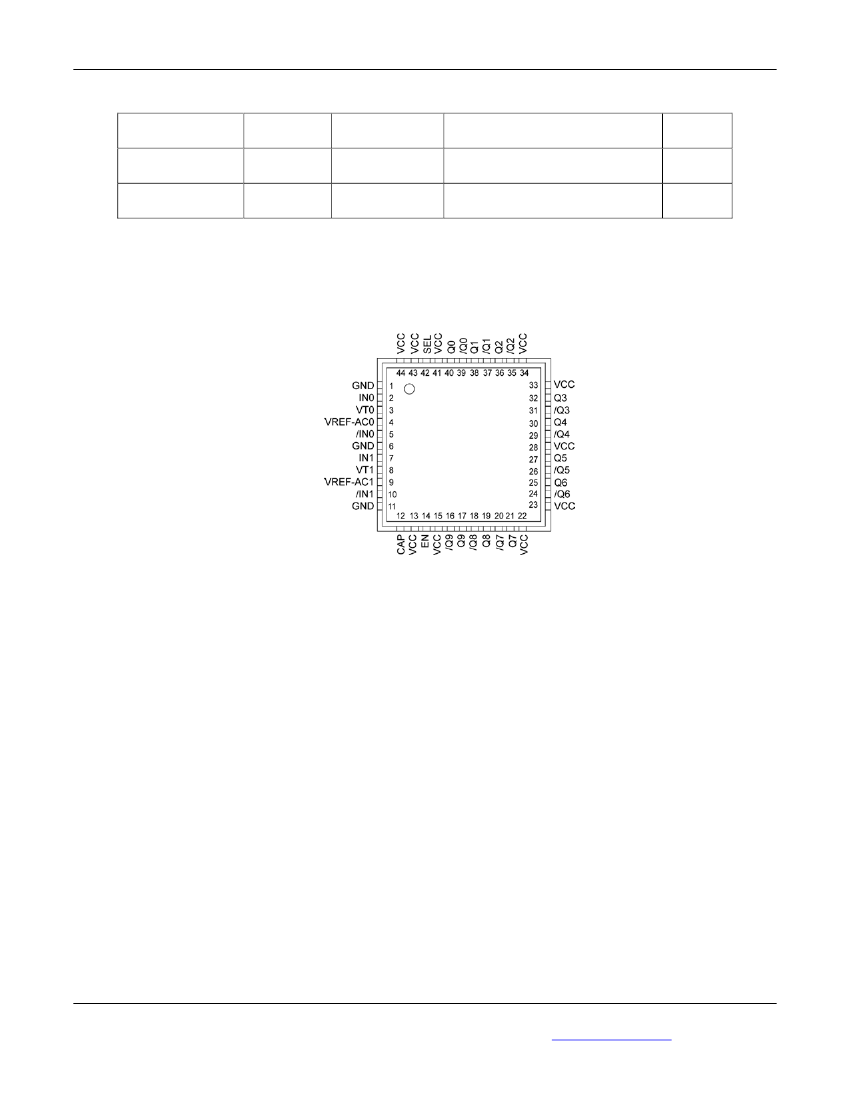

Pin Configuration
44-Pin QFN
December 2007
3
M9999-120607-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89464U
Pin Description
Pin Number
2, 5
7, 10
Pin Name
IN0, /IN0
IN1, /IN1
Pin Function
Differential Inputs: These input pairs are the differential signal inputs to the
device. These inputs accept AC- or DC-coupled signals as small as 100mV
(200mV
pp
). Each pin of a pair internally terminates to a V
T
pin through 50Ω.
Please refer to the “Input Interface Applications” section for more details.
Reference Voltage: These outputs bias to V
CC
–1.2V. They are used for AC-
coupling inputs IN and /IN. Connect V
REF-AC
directly to the corresponding V
T
pin.
Bypass with 0.01µF low ESR capacitor to V
CC
. Due to the limited drive capability,
the V
REF-AC
pin is only intended to drive its respective V
T
pin. Maximum
sink/source current is ±1.5mA. Please refer to the “Input Interface Applications”
section for more details.
Input Termination Center-Tap: Each side of the differential input pair terminates
to a V
T
pin. The V
T0
and V
T1
pins provide a center-tap to a termination network
for maximum interface flexibility. Please refer to the “Input Interface Applications”
section for more details.
Positive Power Supply: Bypass with 0.1µF||0.01µF low ESR capacitors as close
to the V
CC
pins as possible.
4, 9
VREF-AC0
VREF-AC1
3, 8
13, 15, 22, 23, 28
33, 34, 41, 43, 44
40, 39
38, 37
36, 35
32, 31
30, 29
27, 26
25, 24
21, 20
19, 18
17, 16
42
1, 6, 11
VT0, VT1
VCC
Q0, /Q0
Q1, /Q1
Q2, /Q2
Q3, /Q3
Q4, /Q4
Q5, /Q5
Q6, /Q6
Q7, /Q7
Q8, /Q8
Q9, /Q9
SEL
GND,
Exposed Pad
Differential Outputs: These differential LVPECL outputs are a logic function of
the IN0, IN1, and SEL inputs. Please refer to the “Truth Table” below for details.
This single-ended TTL/CMOS-compatible input selects the inputs to the
multiplexer. Note that this input is internally connected to a 25kΩ pull-up resistor
and will default to logic HIGH state if left open. V
TH
= V
CC
/2.
Ground: Ground and exposed pad must be connected to the same ground plane.
Power-On Reset (POR) initialization capacitor. When using the multiplexer with
RPE capability, this pin is tied to a capacitor to V
CC
. The purpose is to ensure the
internal RPE logic starts up in a known state. See “Power-On Reset (POR)
Description” section for more details regarding capacitor selection. If this pin is
tied directly to V
CC
, the RPE function will be disabled and the multiplexer will
function as a normal multiplexer. The CAP pin should never be left open or tied
directly to GND.
Single-Ended Input: This TTL/CMOS input disables and enables the Q0-Q9
outputs. It is internally connected to a 25kΩ pull-up resistor and will default to a
logic HIGH state if left open. When disabled, CLK output goes LOW and /CLK
goes HIGH. EN being synchronous, outputs will be enabled/disabled when they
are in LOW state. Thus, a runt pulse is avoided if the device is enable/disabled
by an asynchronous control. V
TH
= V
CC
/2.
12
CAP
14
EN
Truth Table
Inputs
IN0
0
1
X
X
/IN0
1
0
X
X
IN1
X
X
0
1
/IN1
X
X
1
0
SEL
0
0
1
1
Outputs
Q
0
1
0
1
/Q
1
0
1
0
December 2007
4
M9999-120607-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89464U
Absolute Maximum Ratings
(1)
Supply Voltage (V
CC
) .......................... –0.5V to +4.0V
Input Voltage (V
IN
) ..................................–0.5V to V
CC
LVPECL Output Current (I
OUT
) ....................................
Continuous ................................................. 50mA
Surge ........................................................ 100mA
Input Current (I
IN
) ........................................................
IN, /IN ....................................................... ±50mA
V
T
............................................................ ±100mA
V
REF-AC
Current
Source/Sink Current on V
REF-AC
.................. ±2mA
Lead Temperature (soldering, 20 sec.) .......... +260°C
Storage Temperature (T
s
) ..................–65°C to 150°C
Operating Ratings
(2)
Supply Voltage (V
CC
).................. +2.375V to +2.625V
......................................................+3.0V to +3.6V
Ambient Temperature (T
A
) ................ –40°C to +85°C
(3)
Package Thermal Resistance
QFN (θ
JA
)
Still-Air .................................................. 24.4°C/W
QFN (ψ
JB
)
Junction-to-Board ................................... 8.1°C/W
DC Electrical Characteristics
(4)
T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
CC
I
CC
R
IN
R
DIFF_IN
V
IH
V
IL
V
IN
V
DIFF_IN
V
IN_FSI
V
T_IN
V
REF-AC
Notes:
1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is
not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
2. The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. Package thermal resistance assumes exposed pad is soldered (or equivalent) to the devices most negative potential on the PCB.
θ
JA
and
ψ
JB
values are determined for a 4-layer board in still air unless otherwise stated.
4. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
5. V
IN
(max) is specified when V
T
is floating.
Parameter
Power Supply
Power Supply Current
Input Resistance
(IN-to-V
T
)
Differential Input Resistance
(IN-to-/IN)
Input High Voltage
(IN, /IN)
Input Low Voltage
(IN, /IN)
Input Voltage Swing
(IN, /IN)
Differential Input Voltage Swing
|IN-/IN|
Input Voltage Threshold that
Triggers FSI
IN-to-V
T
(IN, /IN)
Output Reference Voltage
Condition
Min
2.375
3.0
Typ
2.5
3.3
120
50
100
Max
2.625
3.6
160
55
110
V
CC
V
IH
–0.1
2.5
Units
V
V
mA
Ω
Ω
V
V
V
V
No load, max V
CC
45
90
1.2
0
See Figure 1a. Note 5.
See Figure 1b.
0.1
0.2
30
100
1.28
mV
V
V
V
CC
–1.3
V
CC
–1.2
V
CC
–1.1
December 2007
5
M9999-120607-B
