Technical Data Sheet
7343-2USRC/S1060
Features
․Popular
T-1 3/4package.
․High
efficiency.
․General
purpose leads.
․Selected
minimum intensities.
․Available
on tape and reel.
․Pb
free .
Descriptions
․The
series is specially designed for applications
requiring higher brightness.
․The
LED lamps are available with different
colors, intensities, epoxy colors ,etc.
․Superior
performance in outdoor environment.
Applications
․Status
indicators.
․Commercial
use.
․Advertising
Signs.
Device Selection Guide
LED Part No.
7343-2USRC/S1060
Chip
Material
AlGaInP
Emitted Color
Super Red
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number : DLE-734-R15
http\\:www.everlight.com
Prepared date:2004/07/30
Rev 1.0
Page: 1 of 5
Prepared by: M.T CHANG
7343-2USRC/S1060

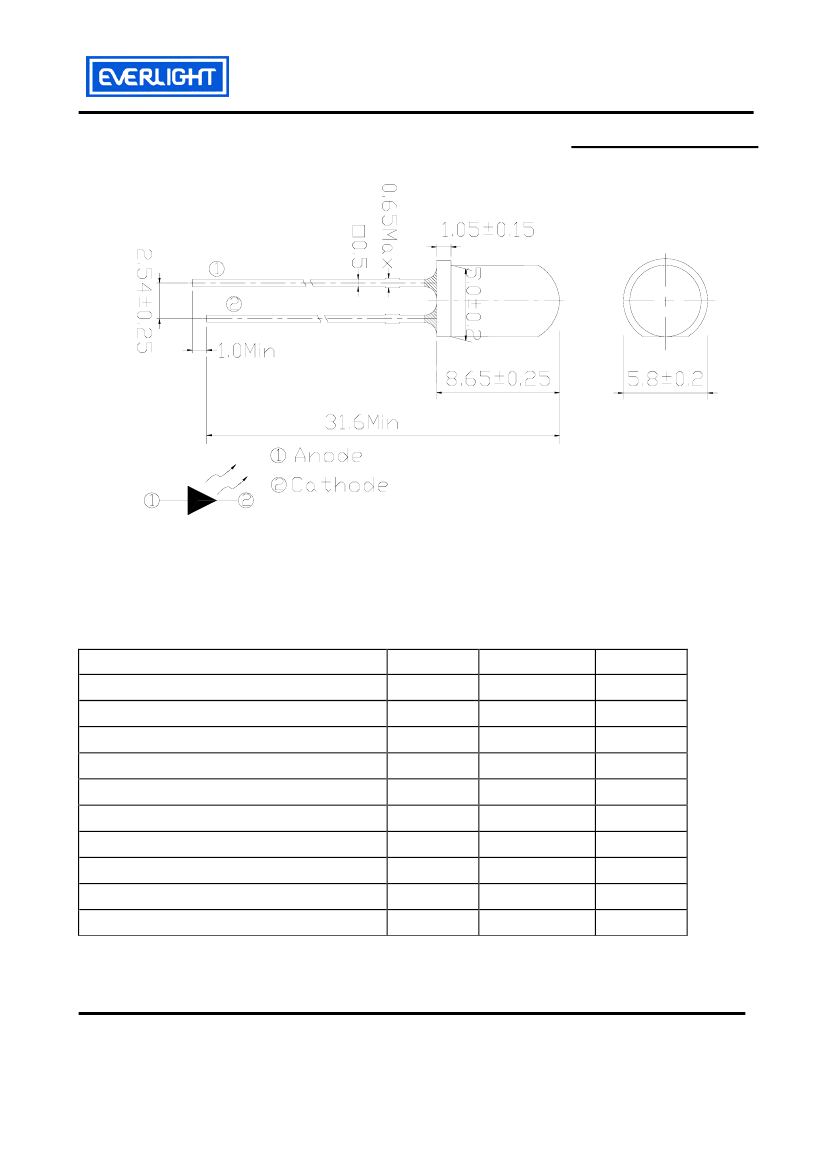

Package Dimensions
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Lead
spacing is measured where the lead emerges from the package.
․Protruded
resin under flange is 1.5mm Max LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward Current(Duty 1/10 @ 1kHz)
*1
Operating Temperature
Storage Temperature
LED Junction Temperature
Electrostatic Discharge
Soldering Temperature
*2
Through-the-Wave Preheat Temperature
Power Dissipation
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
Tj
max
ESD
T
sol
----
P
d
V
R
Rating
50
100
-40 ~ +85
-40 ~ +100
125
2000
260
±5
145
100
5
Units
mA
mA
℃
℃
℃
V
℃
℃
mW
V
Notes:
*1:I
FP
Conditions--Pulse Width≦10msec and Duty≦1/10.
*2:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device Number : DLE-734-R15
http\\:www.everlight.com
Prepared date:2004/07/30
Rev 1.0
Page: 2 of 5
Prepared by: M.T CHANG
7343-2USRC/S1060
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Radiane Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
I
R
I
V
2θ1/2
λ
p
λ
d
△λ
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
--
--
2500
--
--
--
--
Typ.
2.0
--
4000
30
639
631
20
Max.
2.6
10
--
--
--
--
--
Units
V
μA
mcd
deg
nm
nm
nm
Everlight Electronics Co., Ltd.
Device Number : DLE-734-R15
http\\:www.everlight.com
Prepared date:2004/07/30
Rev 1.0
Page: 3 of 5
Prepared by: M.T CHANG
7343-2USRC/S1060

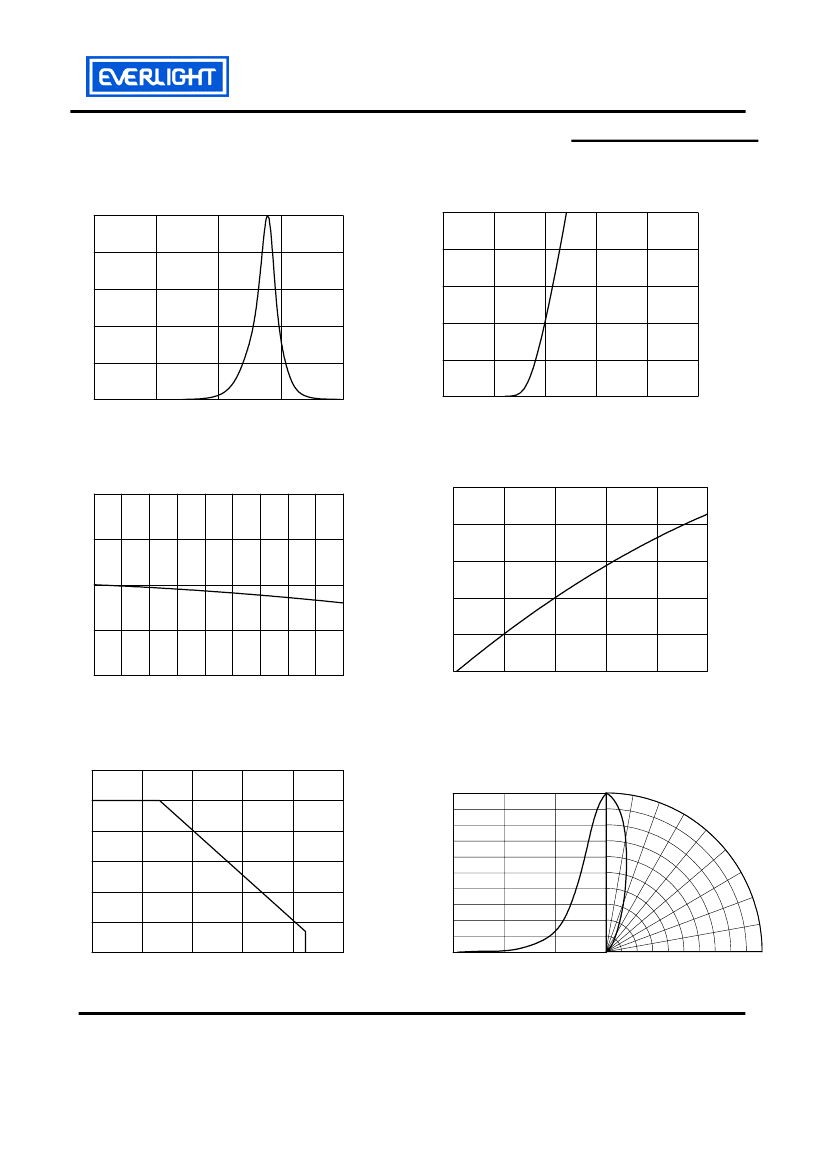

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
Forward Current vs. Forward Voltage
50
Relative Intensity(a.u.)
Forward Current(mA)
0.8
40
0.6
30
0.4
20
0.2
10
0.0
500
550
600
650
700
0
1.0
1.5
2.0
2.5
3.0
3.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Ambient Temp
Relative Luminous Intensity(a.u.)
2.0
Forward Current vs. Relative Intensity
2.5
Relative Intensity(a.u.)
2.0
1.5
1.5
1.0
1.0
0.5
0.5
0.0
25
0.0
30
35
40
45
50
55
60
O
65
70
0
10
20
30
40
50
Ambient Temperature Ta( C)
Forward Current(mA)
Forward Current vs. Ambient Temp.
60
Radiation Characteristics
90
1.0
O
60
O
30
O
0
O
10
O
20
O
Forward Current(mA)
50
Relative Luminusity
30
O
40
O
O
40
30
20
10
0
50
0.5
60
O
70
O
80
0
O
0
20
40
60
80
O
100
0
0.5
90
1.0
O
Ambient Temperature Ta( C)
Radiation Angle
Everlight Electronics Co., Ltd.
Device Number : DLE-734-R15
http\\:www.everlight.com
Prepared date:2004/07/30
Rev 1.0
Page: 4 of 5
Prepared by: M.T CHANG
7343-2USRC/S1060
Packing Quantity Specification
1. 500 PCS/1 Anti ESD Bag
2. 5 Anti ESD Bags /1 Box
3. 10 Boxes/1 Carton
Label Form Specification
EVERLIGHT
CPN:
P/N:
7343-2USRC/S1060
QTY：
LOT NO：
CPN: Customer’s Production Number
P/N : Production Number
7343-2USRC/S1060:Production name
QTY: Packing Quantity
CAT: Ranks of Luminous and Forward Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
CAT:
HUE:
REF:
MADE IN TAIWAN
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http:\\www.everlight.com
Everlight Electronics Co., Ltd.
Device Number : DLE-734-R15
http\\:www.everlight.com
Prepared date:2004/07/30
Rev 1.0
Page: 5 of 5
Prepared by: M.T CHANG
