52437-2791 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52437-2791

52437-2791: DescriptionCard Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52437-2791 Overview

Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,

52437-2791 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
Other features	ZIF
Board mount options	MOUNTING FLANGE
body width	0.079 inch
subject depth	0.169 inch
body length	0.772 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

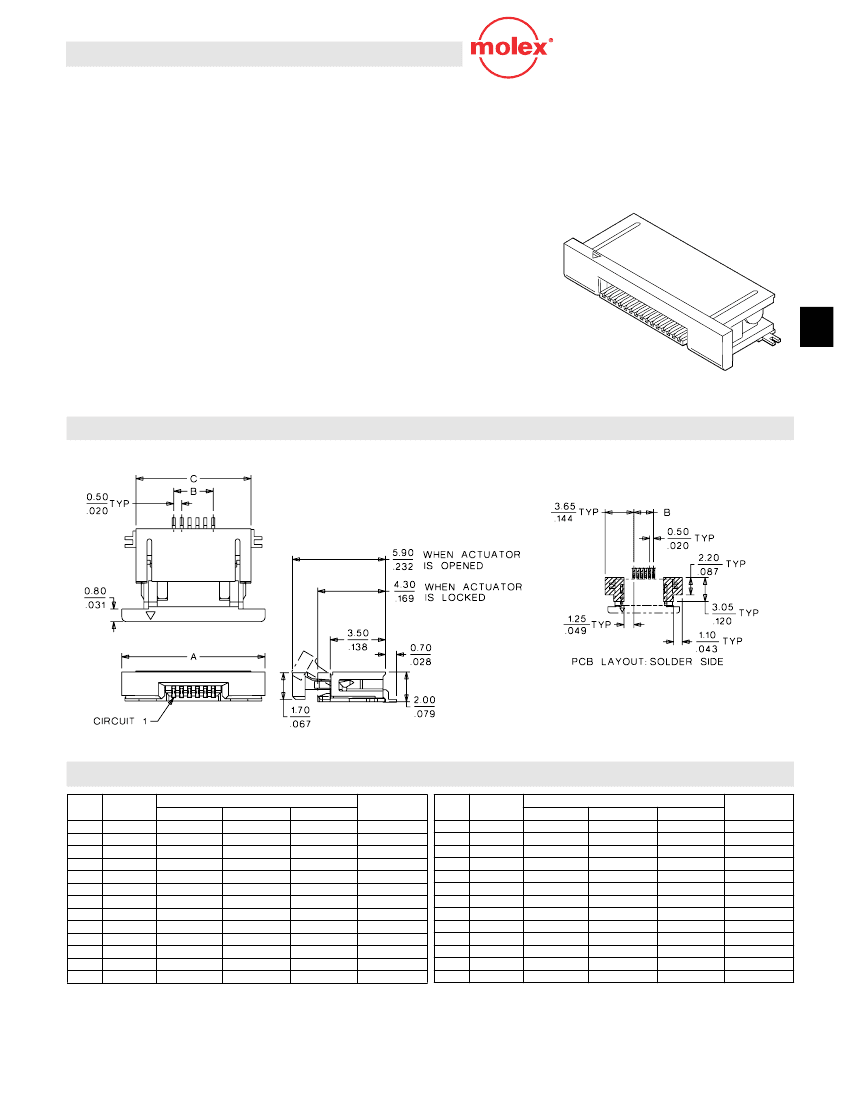

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 20 circuits (52746)

Sizes 21 to 30 circuits (52437)

For 0.30mm thick FFC/FPC

Metal solder tabs provide PCB hold-down

and strain relief for SMT tails

52746 and 52437 have slight dimensional differences,

contact factory for details

Reference Information

Packaging: Embossed tape

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 250V AC/1 min.

Insulation Resistance: 50 M

Ω

min.

Physical

Housing: 4/6 nylon, UL 94V-0

Actuator: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Solder Tabs: Phosphor Bronze, Tin plating

Temperature: -20 to +85˚C

0.50mm (.020") Pitch

FFC/FPC Connector

52746/52437

Right Angle, SMT, ZIF

Bottom Contact Style

Note: Drawing shown on this page is 52746

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

52746-0490

52746-0690

52746-0790

52746-0890

52746-0990

52746-1090

52746-1190

52746-1290

52746-1390

52746-1490

52746-1590

52746-1690

52746-1790

8.10 (.319)

9.10 (.358)

9.60 (.378)

10.10 (.398)

10.60 (.417)

11.10 (.437)

11.60 (.457)

12.10 (.476)

12.60 (.496)

13.10 (.516)

13.60 (.535)

14.10 (.555)

14.60 (.575)

Dimension

1.50 (.059)

2.50 (.098)

3.00 (.118)

3.50 (.138)

4.00 (.157)

4.50 (.177)

5.00 (.197)

5.50 (.217)

6.00 (.236)

6.50 (.256)

7.00 (.276)

7.50 (.295)

8.00 (.315)

6.30 (.248)

7.30 (.287)

7.80 (.307)

8.30 (.327)

8.80 (.346)

9.30 (.366)

9.80 (.386)

10.30 (.406)

10.80 (.425)

11.30 (.445)

11.80 (.465)

12.30 (.484)

12.80 (.504)

Carrier

Tape Width

16.00

24.00

(.630)

(.945)

Circuits

Order No.

52746-1890

52746-1990

52746-2090

52437-2191

52437-2291

52437-2391

52437-2491

52437-2591

52437-2691

52437-2791

52437-2891

52437-2991

52437-3091

15.10 (.594)

15.60 (.614)

16.10 (.634)

17.10 (.673)

17.60 (.693)

18.10 (.713)

18.60 (.732)

19.10 (.752)

19.60 (.772)

20.10 (.791)

20.60 (.811)

21.10 (.831)

21.60 (.850)

Dimension

8.50 (.335)

9.00 (.354)

9.50 (.374)

10.00 (.394)

10.50 (.413)

11.00 (.433)

11.50 (.453)

12.00 (.472)

12.50 (.492)

13.00 (.512)

13.50 (.531)

14.00 (.551)

14.50 (.571)

13.30 (.524)

13.80 (.543)

14.30 (.563)

15.10 (.594)

15.60 (.614)

16.10 (.634)

16.60 (.653)

17.10 (.673)

17.60 (.693)

18.10 (.713)

18.60 (.732)

19.10 (.752)

19.60 (.772)

Carrier

Tape Width

24.00

32.00

(.945)

(1.260)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

990

F-9

FFC/FPC Connectors

52437-2791 Related Products

	52437-2791	52437-2991
Description	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,	Card Edge Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Molex	Molex
Reach Compliance Code	unknown	compliant
Other features	ZIF	ZIF
Board mount options	MOUNTING FLANGE	MOUNTING FLANGE
body width	0.079 inch	0.079 inch
subject depth	0.169 inch	0.169 inch
body length	0.772 inch	0.811 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω
insulator material	NYLON	NYLON
MIL compliance	NO	NO
Plug contact pitch	0.02 inch	0.02 inch
Mixed contacts	NO	NO
Installation option 1	FCC RETNN DVC	FCC RETNN DVC
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	27	29
UL Flammability Code	94V-0	94V-0
