This document was generated on 01/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
5007972594
Active
0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.05mm (.041") Mated Height,
Right Angle, SMT, Bottom Contact Style, 25 Circuits, Lead-free
Documents:
3D Model
Drawing (PDF)
General
Product Family
Series
Product Name
Physical
Circuits (Loaded)
Contact Position
Durability (mating cycles) min
Entry Angle
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Metal
Material - Plating Mating
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
Sales Drawing
Product Specification PS-500797-003 (PDF)
Related Catalog Page (PDF)
FFC/FPC Connectors
500797
Easy-On™
25
Bottom
20 cycles
90° Angle
0.041 In
1.05 mm
Copper Alloy
Phosphor Bronze
Gold
1
Right Angle
No
Yes
Embossed Tape on Reel
0.012 In
0.30 mm
Yes
No
-20°C to +85°C
Surface Mount
FPC only
0.200 Amp
50V
Series image - Reference only
EU RoHS
ELV and RoHS
Compliant
China RoHS
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
500797 Series
PS-500797-003

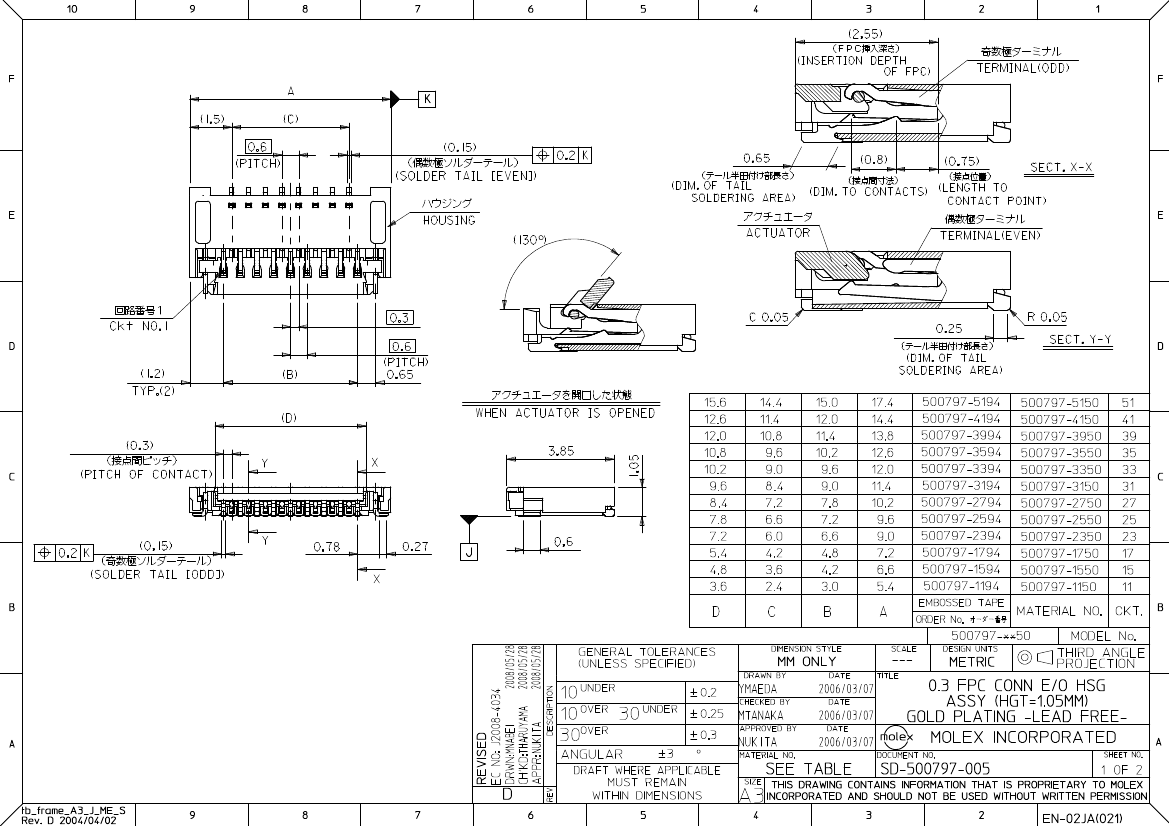

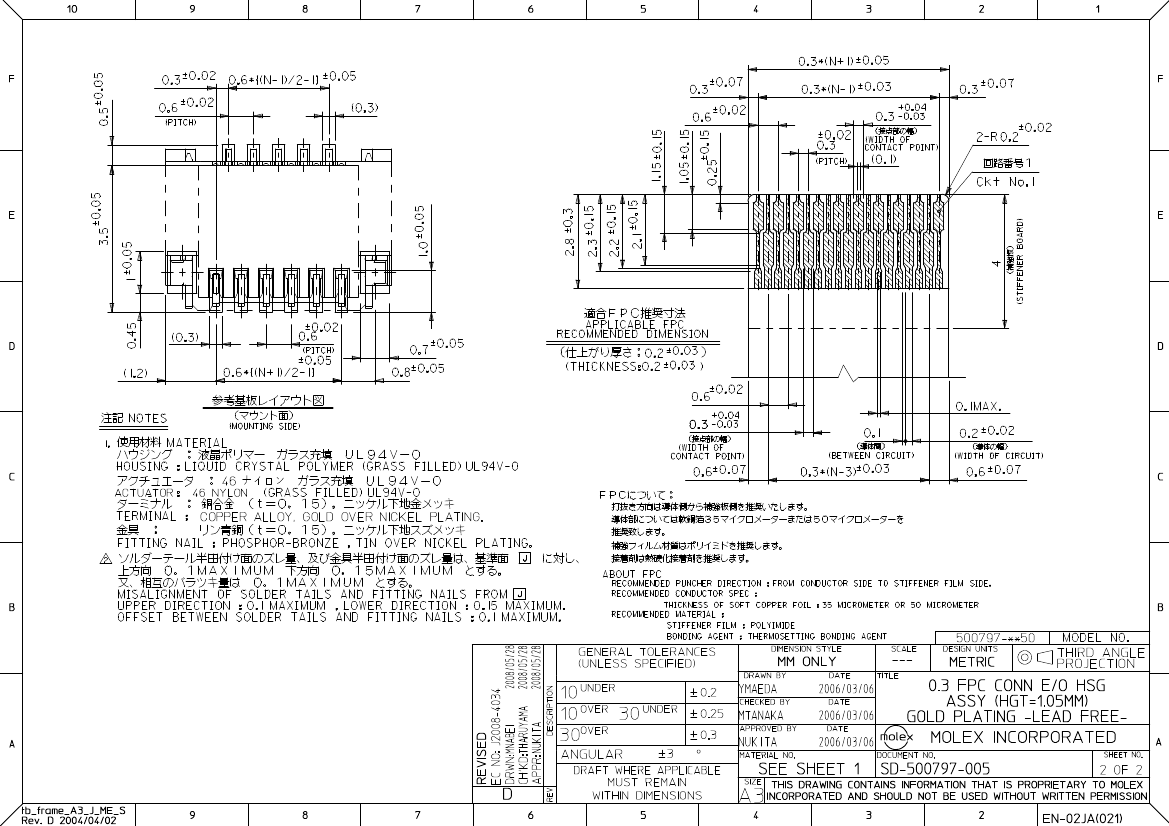

SD-500797-005

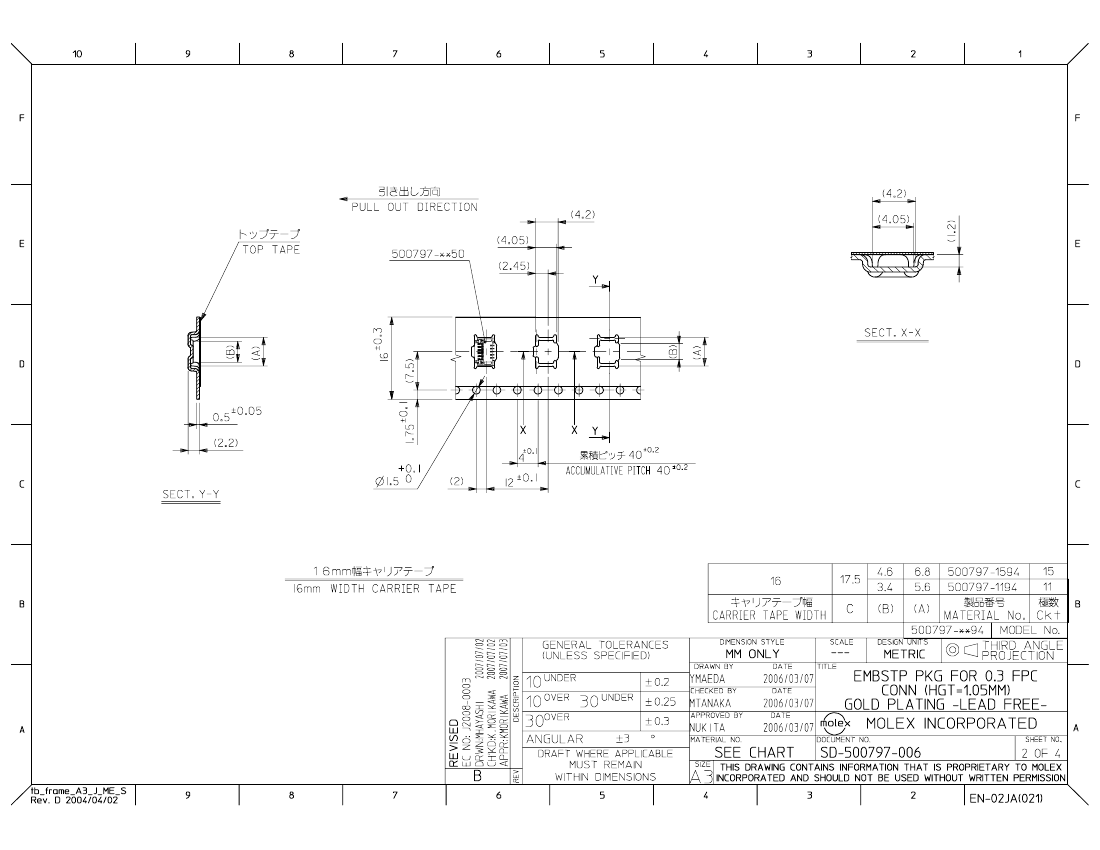

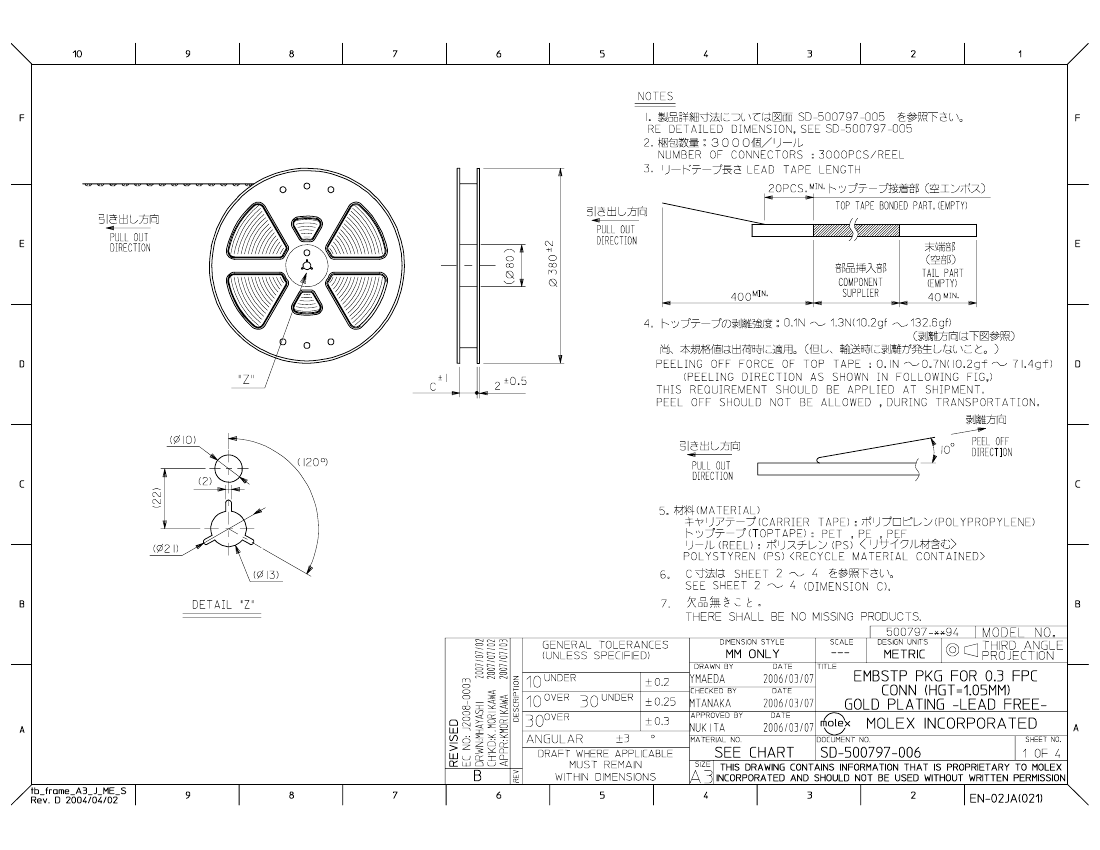

SD-500797-006
