3000H-M208B-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3000H-M208B-L

3000H-M208B-L: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size1000KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

3000H-M208B-L Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug

3000H-M208B-L Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
subject depth	0.551 inch
body length	0.976 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	3000H
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

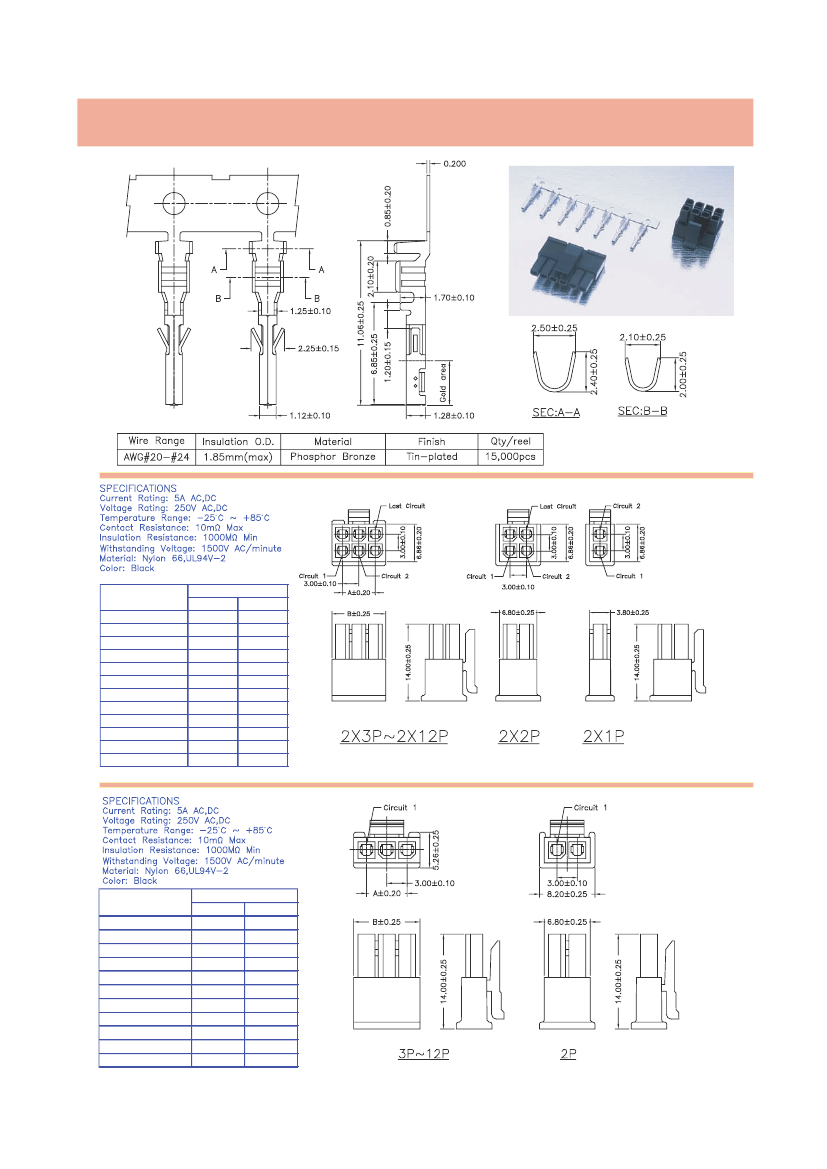

3.0mm FEMALE TERMINAL / MALE HOUSING

Part No.:3000-FT-L

PART NO.

3000H-M201B-L

3000H-M202B-L

3000H-M203B-L

3000H-M204B-L

3000H-M205B-L

3000H-M206B-L

3000H-M207B-L

3000H-M208B-L

3000H-M209B-L

3000H-M210B-L

3000H-M211B-L

3000H-M212B-L

Dimensions

---

3.80

3.00

6.80

6.00

9.80

9.00

12.80

12.00

15.80

15.00

18.80

18.00

21.80

21.00

24.80

24.00

27.80

27.00

30.80

30.00

33.80

33.00

36.80

Part No.:3000H-M2XXB-L

PART NO.

3000H-M102B-L

3000H-M103B-L

3000H-M104B-L

3000H-M105B-L

3000H-M106B-L

3000H-M107B-L

3000H-M108B-L

3000H-M109B-L

3000H-M110B-L

3000H-M111B-L

3000H-M112B-L

Dimensions

3.00

6.80

6.00

9.80

9.00

12.80

12.00

15.80

15.00

18.80

18.00

21.80

21.00

24.80

24.00

27.80

27.00

30.80

30.00

33.80

33.00

36.80

Part No.:3000H-M1XXB-L

3000H-M208B-L Related Products

	3000H-M208B-L	3000H-M201B-L	3000H-M202B-L	3000H-M207B-L	3000H-M209B-L	3000H-M204B-L	3000H-M206B-L	3000H-M205B-L
Description	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 2 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 4 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 14 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 18 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 8 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 12 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug	Board Connector, 10 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
subject depth	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
body length	0.976 inch	0.15 inch	0.268 inch	0.858 inch	1.094 inch	0.504 inch	0.74 inch	0.622 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	3000H	3000H	3000H	3000H	3000H	3000H	3000H	3000H
Plug contact pitch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Match contact row spacing	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	16	2	4	14	18	8	12	10
Maximum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Minimum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
