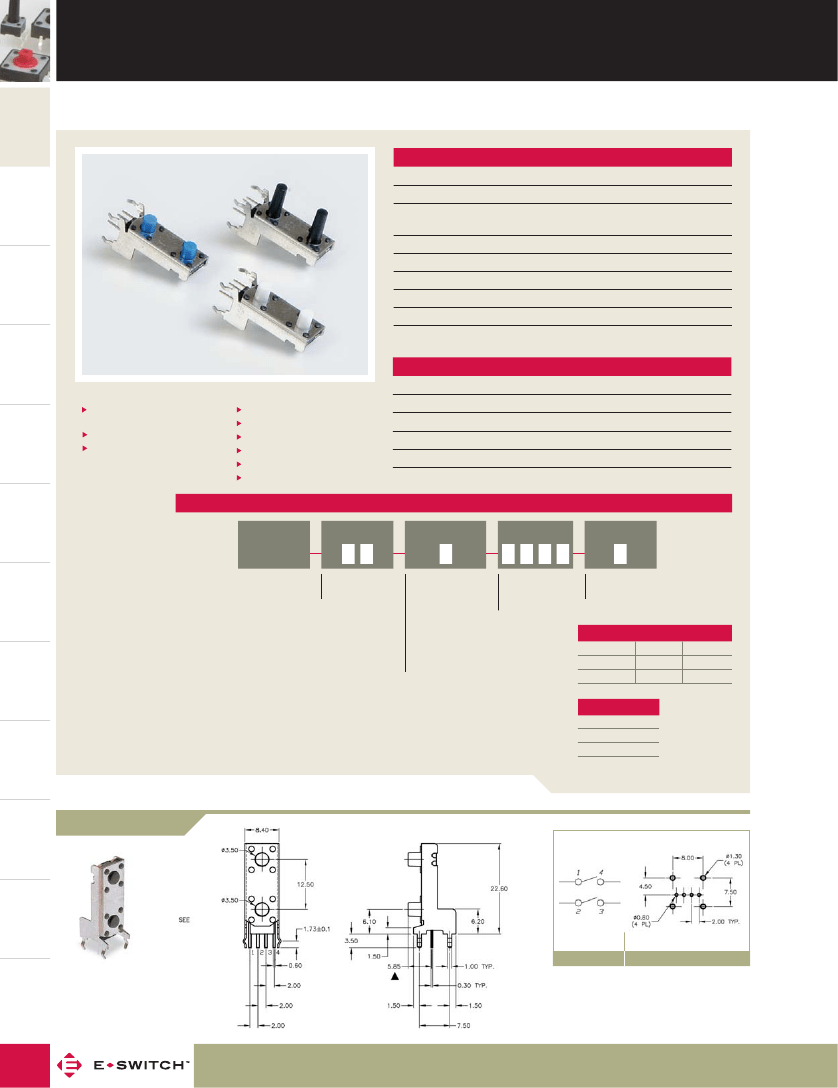

SERIES TL 53 SWITCHES
TACT
SWITCHES
TACT SWITCHES - Dual
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Life Expectancy:
Contact Resistance:
Insulation Resistance:
50mA @ 12 VDC
100,000 cycles
100mΩ max., typical @ 2-4 VDC
100mA for both silver and gold plated contacts
100mΩ min.
250VAC
100 ± 50 gf, 160 ± 50 gf, 250 ± 50 gf
0.25 Typ
PUSHBUTTON
SWITCHES
Dielectric Strength:
Actuation Force:
Travel:
Operating Temperature: -20°C to 70°C
TOGGLE
SWITCHES
MATERIALS
FEATURES & BENEFITS
APPLICATIONS/MARKETS
Telecommunications
Consumer Electronics
Audio/visual
Medical
Testing/instrumentation
Computer/servers/peripherals
Housing:
Actuator:
Cover:
Contacts:
Terminals:
Polyester
Acetal
Tin plated steel
Silver plated phosphor bronze
Silver plated brass
ROCKER
SWITCHES
Two independent switches in a
single package
Stacked design
Reliable dome contact technology
▲
▲
▲
SLIDE
SWITCHES
HOW TO ORDER
SERIES
MODEL NO.
ACTUATOR
("L" Dimension)
OPERATING
FORCE
CONTACT
MATERIAL
TL
SNAP-ACTION
SWITCHES
TL
53
(None) = 3.15mm
A = 3.85mm
B = 5.85mm
C = 6.15mm
D = 6.85mm
E = 7.35mm
G = 8.35mm
H = 11.85mm
F100
F160
F260
Q = Silver
Actuator Length (L) in mm
(None) = 3.15
A = 3.85
B = 5.85
C = 6.15
D = 6.85
E = 7.35
G = 8.35
H = 11.85
DIP
SWITCHES
KEYLOCK
SWITCHES
Example Ordering Number
TL
_
53_ B_ F100
_
Q
Operating Force
F100 = 100 ± 50gf
F160 = 160 ± 50gf
F260 = 260 ± 50gf
Specifications subject to change without notice.
DETECTOR
SWITCHES
ROTARY
SWITCHES
TL 53
▲
▲
▲
SCHEMATIC
CAP
OPTIONS
P.C. MOUNTING
34
Phone: 800-867-2717
Fax: 763-531-8235
