Field Programmable LVDS Blank Oscillator Applications
•
•
•
•
Programmed with PG2000P/PG3000 within seconds
Programmable 2 times
Provides a sealed finished custom oscillator
9.6 x 11.4 SMD
CARDINAL COMPONENTS
Series
CPPV9
Part Numbering Example: CPPV9 LZ A5 B6 100.0
CPPV9
SERIES
L
VOLTAGE
Blank = 5 V
L = 3.3 V
Z
A5
B6
100.000
FREQUENCY
1.000 – 133.0 MHz
ADDED FEATURES OPERATING TEMP
STABILITY
Blank = Bulk
Blank = 0 – +70 °C
B6 = ±100 ppm
T
= Tube
A5 = -20 – +70 °C
BP = ±50 ppm
Z
= Tape/Reel
A7 = -40 – +85 °C
Specifications:
Frequency Range:
Available Stability Options:
Prog. Supply Voltage:
Operating Temperature
Range Options:
Storage Temperature:
Aging (PPM/1st Year):
Ta=25C, Vdd=3.3V
Diff. Clock Rise Time
Diff. Clock Fall Time
Output Level:
Min
1.0
-100
-50
4.75
3.135
-20
-40
-55
Typ
Max
133.0
100
50
Unit
MHz
ppm
ppm
V
V
°C
°C
°C
5.0
3.3
5.25
3.465
70
85
125
±5
0.2
0.2
LVDS
0.7
0.7
1.0
1.0
ns
ns
Tristate internal pull up,
output active when high.
Notes: Recommended 0.01
µF
bypass capacitor from Vdd to Gnd. Capacitor should be as close to oscillator as possible.
155 Route 46 West
Wayne, NJ 07470
Rev: C-090414-11
Cardinal Components, Inc.
O-23
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
CARDINAL COMPONENTS

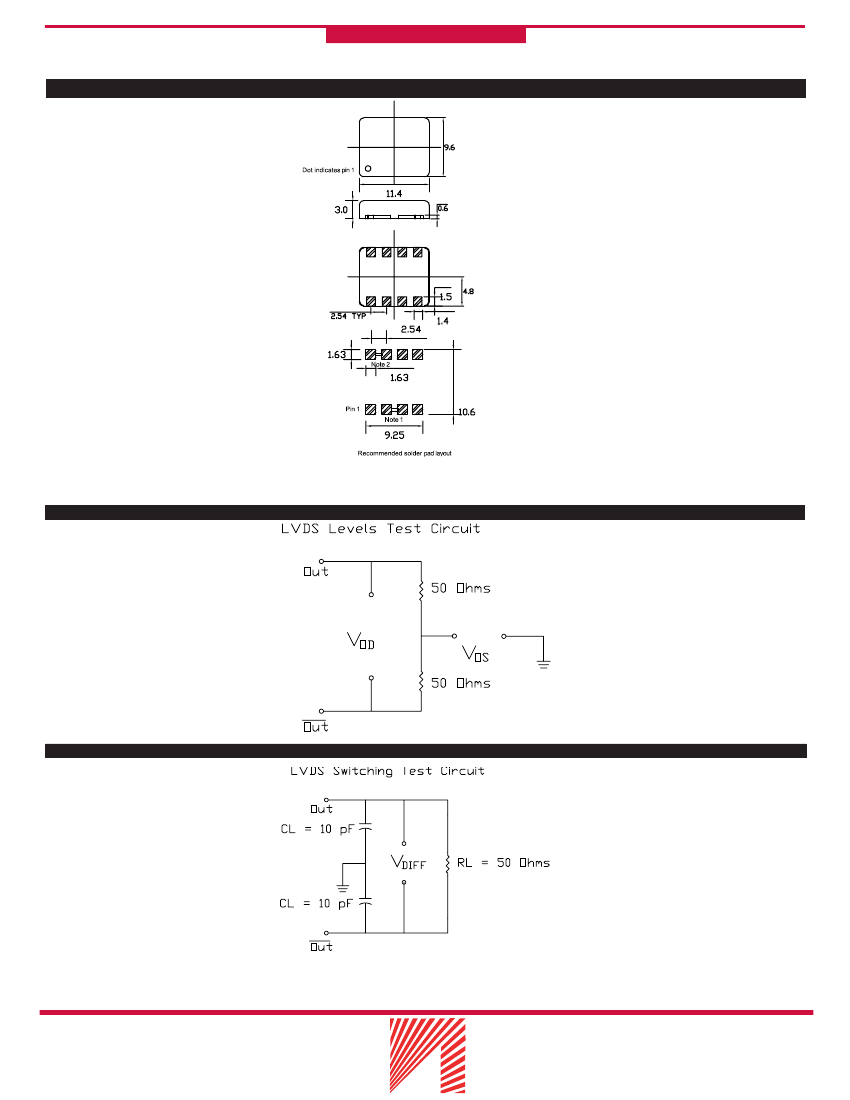

CPPV9
PIN FUNCTION
PIN 1 OE
PIN 2 CONNECT TO PIN 3
PIN 3 CONNECT TO PIN 2
PIN 4 GND
PIN 5 LVDS-
PIN 6 LVDS+
PIN 7 VDD
PIN 8 VDD
Note 1: Connect pin 2 to pin 3
Note 2: Connect pin 7 to pin 8
LEVELS TEST CIRCUIT
SWITCHING TEST CIRCUIT
155 Route 46 West
Wayne, NJ 07470
Rev: C-090414-11
Cardinal Components, Inc.
O-24
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
