BUS-63112-300

Description
MIL-STD-1553 Data Bus Transceiver, 32.36 X 19.69 MM, 4.45 MM HEIGHT, DFP-24
CategoryWireless rf/communication    Telecom circuit
File Size210KB,17 Pages
ManufacturerData Device Corporation
Download Datasheet Parametric View All

BUS-63112-300 Overview

MIL-STD-1553 Data Bus Transceiver, 32.36 X 19.69 MM, 4.45 MM HEIGHT, DFP-24

BUS-63112-300 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerData Device Corporation
Parts packaging codeDFP
package instructionDFP,
Contacts24
Reach Compliance Codecompliant
JESD-30 codeS-XDFP-F24
JESD-609 codee0
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialUNSPECIFIED
encapsulated codeDFP
Package shapeSQUARE
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height4.064 mm
Nominal supply voltage5 V
surface mountYES
Telecom integrated circuit typesMIL-STD-1553 DATA BUS TRANSCEIVER
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
BUS-63100 SERIES
MIL-STD-1553 DATA BUS
SINGLE AND DUAL TRANSCEIVERS
BUS-63102
BUS-63105
BUS-63125
DESCRIPTION
The BUS-63100 transceivers are
complete transmitter and receiver
pairs conforming fully to MIL-STD-
1553A and 1553B. Features available
with selected models of this high reli-
ability series include: Smiths and
Harris interface type choices,
+12 V/+15 V power supply voltage
range, variable threshold levels, and
single (24-pin DDIP or square) and
completely independent dual redun-
dant (36-pin DDIP) packaging config-
urations. All models are also available
in flat packs.
The receiver section of the BUS-
63100 series accepts phase-modula-
ted bipolar data from a MIL-STD-1553
Data Bus and produces TTL signal
data at its outputs: RX Data Out and
RX Data Out. These outputs repre-
sent positive and negative variations
of the input data signals beyond an
internally fixed or externally set
threshold level. An external STROBE
input enables or disables the receiver
outputs.
The transmitter section accepts bipo-
lar TTL signal data at its TX Data and
TX Data input lines and produces
phase modulated bipolar data at the
TX Data and TX Data outputs. The
transmitters’ output voltage level is
typically 28 Vpp to 30 Vpp. An exter-
nal input, INHIBIT, takes priority over
the transmitter inputs and disables
the transmitter when activated with a
logic “1.”
The small size and different model
capabilities available with the
BUS-63100 series simplify engineer-
ing design, making it an excellent
choice for interfacing with any
MIL-STD-1553 system.
FEATURES
Conforms Fully to MIL-STD-1553A
and 1553B
Some Models Available to Military
(DESC) Drawings
Model Capabilities:
Single or Dual Redundant
Packaging
-12 V/-15 V Power Supply Voltage
Range Available
Harris or Smith’s I/O Compatibility
Small Size:
Single – 24-Pin DDIP or Square
Dual – 36-Pin DDIP Flat Packs
Low Power
High Reliability – LSI
±V
1553
DATA
BUS
+5 V
RECEIVER
STROBE
BI PHASE
TTL DATA
PHASE MODULATED
BIPOLAR DATA
RX Data In

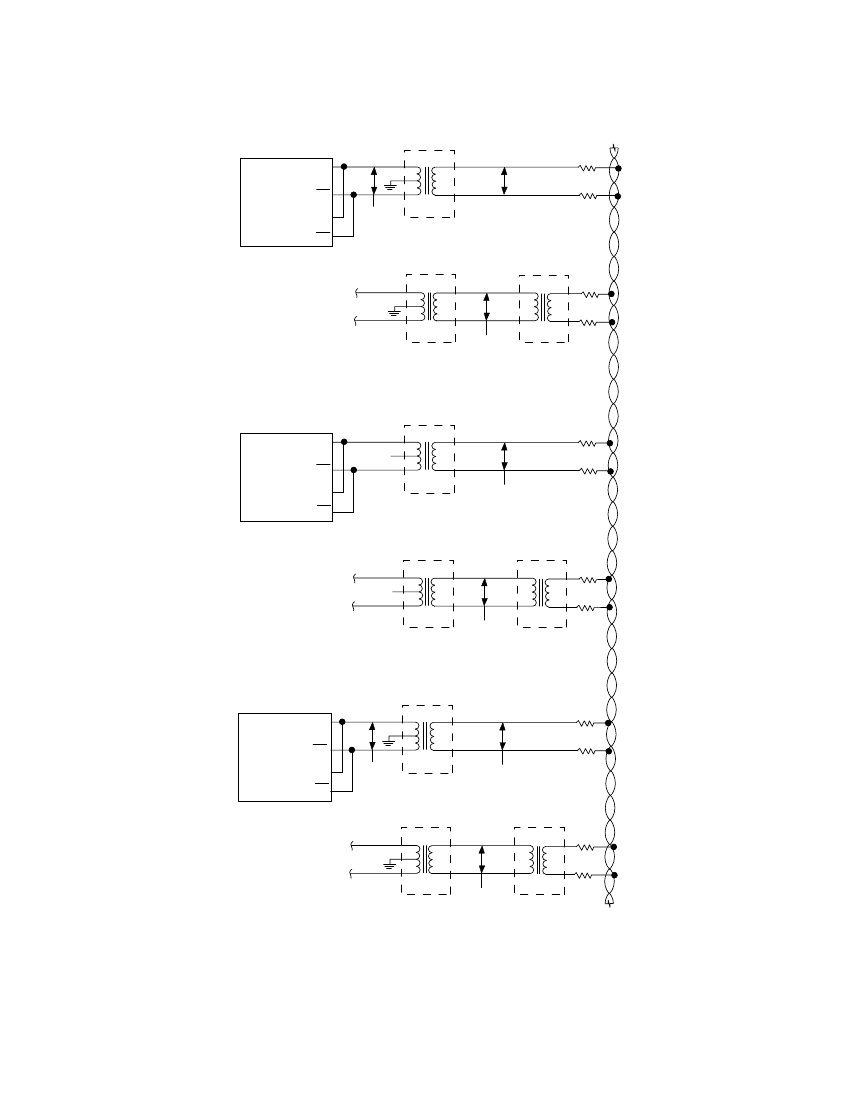

SHORT
OR
LONG
STUB
COUPLING
ISOLATION
TRANSFORMER
RX Data In
RECEIVER
SECTION
RECEIVER
SECTION
COMPARATOR
COMPARATOR
RX Data
LIMITER
FILTER
FILTER
RX Data
DECODER
COMPARATOR
COMPARATOR
TRANSMITTER
SECTION
TRANSMITTER
SECTION
DRIVER
DRIVER
TX Data Out
SHAPING
NETWORK
NETWORK
DRIVER
TX Data In
TX Data Out
SHAPING
SHAPING
NETWORK
NETWORK
ENCODER
TX Data In
TX INHIBIT

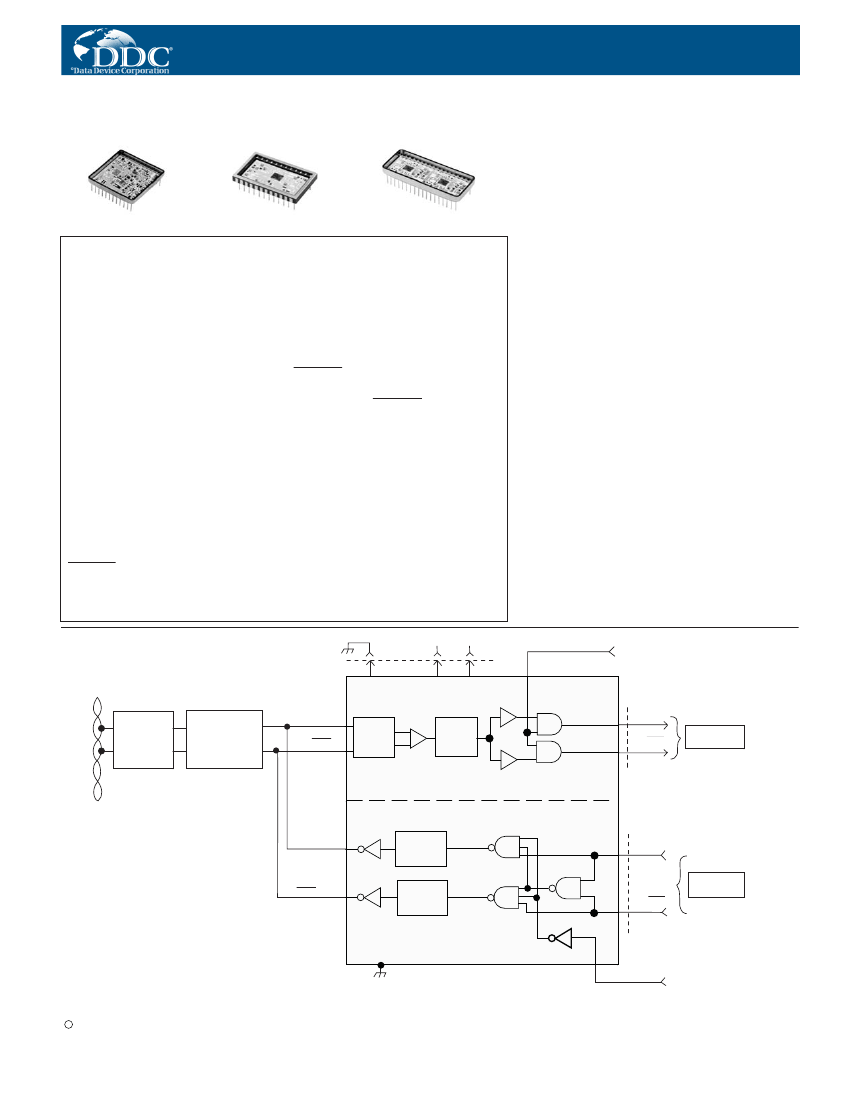

FIGURE 1. BUS-63100 BLOCK DIAGRAM
