8150-3036: DescriptionD Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size191KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8150-3036 Overview

D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, Locking, Plug

8150-3036 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.358 inch
subject depth	0.177 inch
body length	1.227 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8150
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Termination type	IDC
Total number of contacts	36
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

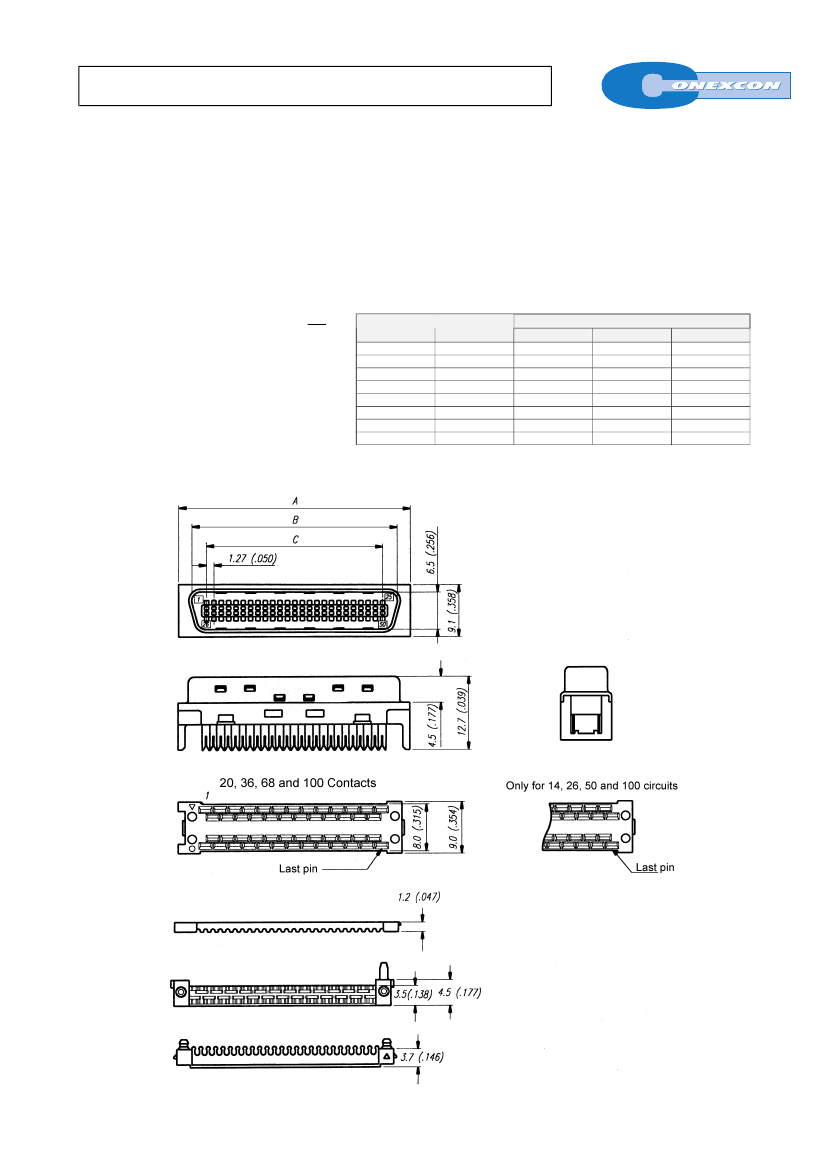

IDC TYPE FOR CABLE PLUG

SERIES.

8150 SERIES

Half- Pitch Ribbon Connectors

Features

!

#

Shell: Cold roller Steel

Insulator Material: PBT + Glass-Fibre UL 94V-0

Accepts: 8160, 8161 and 8162 series Hoods

For electric equipments of high reliability and high density

packaging

Ordering and Dimensional Information

mm.

Inch.

#

Available in 14, 20, 26, 36, 50, 68, 100 and 110 circuits

Excellent I/O connector

Wire size (28 to 30 AWG)

Ribbon contact design

Contact Material: Phosphor bronze

Dimensional Information

T = Contact Plating

Unit:

Circuit Size

14

20

26

36

50

68

100

110

Part Number

8150 –

T014

8150 –

T020

8150 –

T026

8150 –

T036

8150 –

T050

8150 –

T068

8150 –

T100

8150 –

T110

Dimensions

A

17.19 (0.677)

21.00 (0.827)

24.81 (0.977)

31.16 (1.227)

40.10 (1.579)

51.48 (2.027)

71.80 (2.827)

78.15 (3.078)

B

12.79 (0.504)

16.60 (0.564)

20.41 (0.804)

26.76 (1.054)

35.65 (1.404)

47.08 (1.854)

67.40 (2.654)

73.75 (2.904)

C

7.62 (0.300)

11.43 (0.450)

15.24 (0.600)

21.59 (0.850)

30.48 (1.200)

41.91 (1.650)

62.23 (2.450)

68.58 (2.700)

#

T =

2.

Tin plated

T =

3.

Gold flash over 50µ" nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
