NJU3712V

Description
Serial In Parallel Out, 8-Bit, Right Direction, True Output, CMOS, PDSO16, SSOP-16
Categorylogic    logic
File Size66KB,8 Pages
ManufacturerNew Japan Radio Co., Ltd..
Environmental Compliance
Download Datasheet Parametric View All

NJU3712V Overview

Serial In Parallel Out, 8-Bit, Right Direction, True Output, CMOS, PDSO16, SSOP-16

NJU3712V Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNew Japan Radio Co., Ltd..
Parts packaging codeSOIC
package instructionSSOP-16
Contacts16
Reach Compliance Codecompliant
Other featuresPARALLEL OUTPUT IS LATCHED
Counting directionRIGHT
JESD-30 codeR-PDSO-G16
JESD-609 codee6
length5 mm
Logic integrated circuit typeSERIAL IN PARALLEL OUT
Number of digits8
Number of functions1
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
propagation delay (tpd)100 ns
Certification statusNot Qualified
Maximum seat height1.45 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelOTHER
Terminal surfaceTIN BISMUTH
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width4.4 mm
minfmax5 MHz

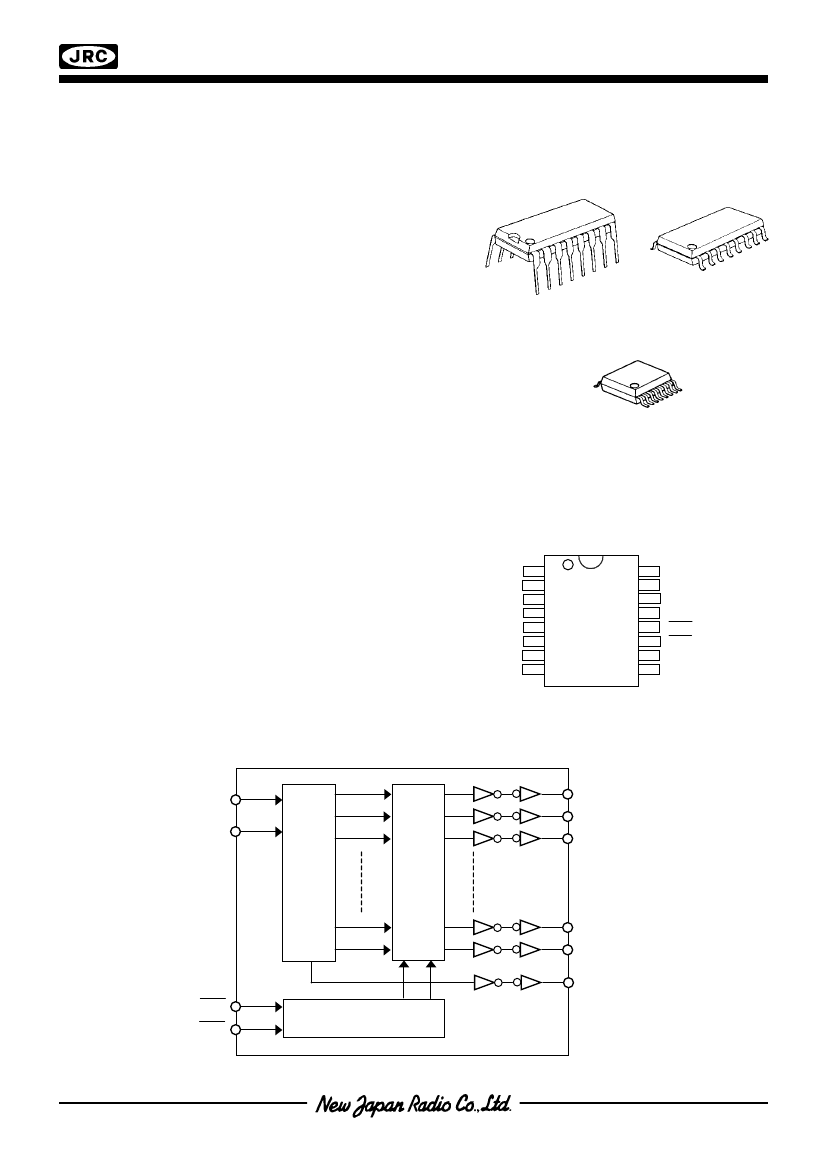

NJU3712
8-BIT SERIAL TO PARALLEL CONVERTER
GENERAL DESCRIPTION
The
NJU3712
is an 8-bit serial to parallel converter
especially applying to MPU outport expander.
The effective outport assignment of MPU is available
as the connection between
NJU3712
and MPU is
required only 4 lines.
The serial data synchronizing with 5MHz or more
clock can be input to the serial data input terminal and
the data are output from parallel output buffer through
serial in parallel out shift register and parallel data
latches.
Furthermore, the
NJU3712
outputs the serial data
from SO terminal through the shift register. Therefore, it
connects with other SIPO ICs like as NJU3711 in
cascade for expanding the parallel conversion outputs.
The hysteresis input circuit realizes wide noise
margin and the high drive-ability output buffer (25mA)
can drive LED directly.
PACKAGE OUTLINE
NJU3712D
NJU3712M
NJU3712V
FEATURES
8-Bit Serial In Parallel Out
Hysteresis Input
0.5V typ
Operating Voltage
5V±10%
Maximum Operating Frequency 5MHz and more
Output Current
25mA
C-MOS Technology
Package Outline
DIP16/DMP16/SSOP16
PIN CONFIGURATION
P3
P4
P5
V
SS
P6
P7
P8
SO
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
DD
P2
P1
V
SS
CLR
STB
CLK
DATA
NJU3712D/M/V
BLOCK DIAGRAM
DATA
Shift Register
Latch Circuit
CLK
P1
P2
P3
P7
P8
SO
STB
CLR
Controller Circuit
Ver.2003-11-18
-1-
