Product Specifications
L 2P DF - PMC
716 DIN Female Panel Mount for 3/8 in LDF250 cable
CHARACTERISTICS
General Specifications
Interface
Body Style
Mounting Angle
716 DIN Female
Panel mount
Straight
Electrical Specifications
Connector Impedance
Operating Frequency Band
3rd Order IMD Test Method
Average Power
Cable Impedance
dc Test Voltage
Inner Contact Resistance
Insulation Resistance, minimum
Outer Contact Resistance
Peak Power, maximum
RF Operating Voltage, maximum (vrms)
Shielding Effectiveness
3rd Order IMD
50 ohm
0 – 6000 MHz
Two +43 dBm Carriers
0.7 kW @ 900 MHz
50 ohm
2500 V
1.50 mOhm
10000 MOhm
0.40 mOhm
15.60 kW
894.00 V
110 dB
112 dBm @ 910 MHz
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 1 of 3
1/18/2008
Product Specifications

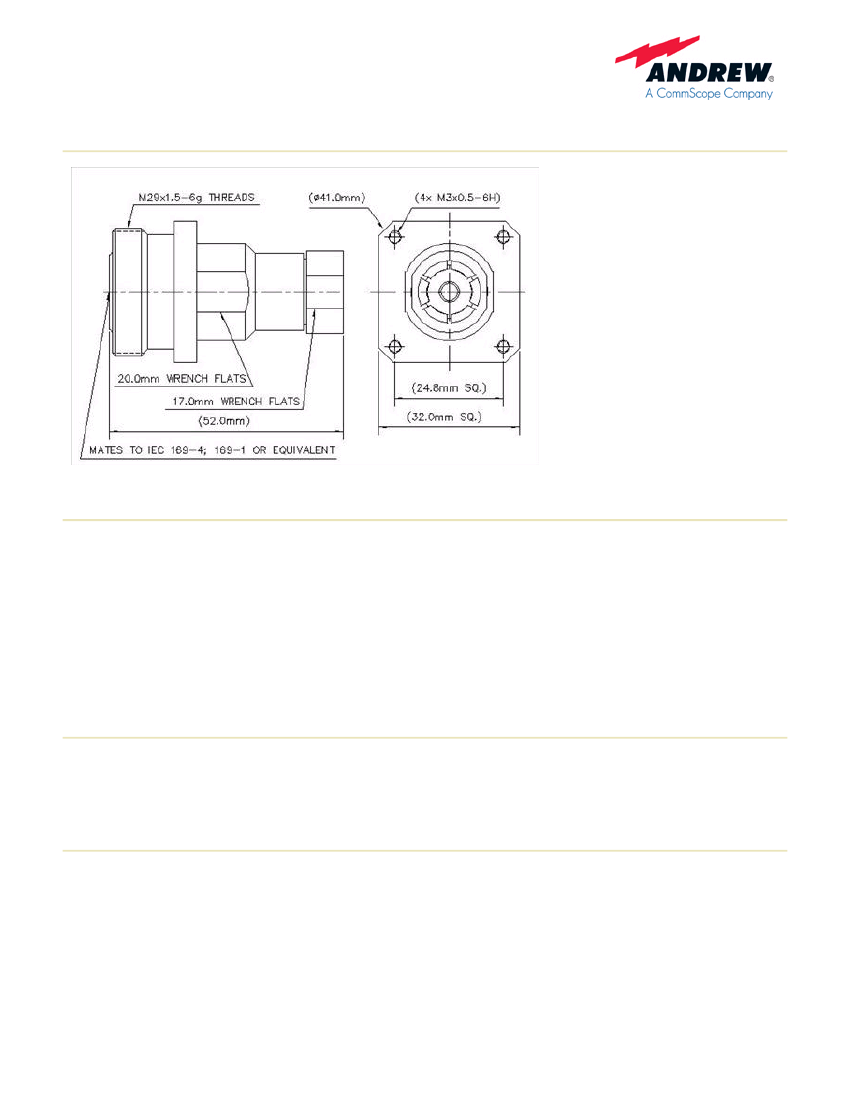

Outline Drawing
Mechanical Specifications
Outer Contact Attachment Method
Connector Retention Tensile Force
Connector Retention Torque
Coupling Nut Proof Torque Method
Coupling Nut Retention Force
Coupling Nut Retention Force Method
Inner Contact Attachment Method
Insertion Force
Insertion Force Method
Interface Durability
Interface Durability Method
Pressurizable
Selfflare
670 N | 151 lbf
3 Nm | 2 ft lb
IEC 16916:9.3.11
1000.00 N | 224.81 lbf
IEC 16916:9.3.11
Captivated
889.64 N | 200.00 lbf
IEC 16916:9.3.5
500 cycles
IEC 1694:17
No
Dimensions
Nominal Size
Height
Length
Weight
Width
3/8 in
32.00 mm | 1.26 in
52.00 mm | 2.05 in
82.00 g | 0.18 lb
32.00 mm | 1.26 in
Environmental Specifications
Corrosion Test Method
Immersion Depth
Immersion Test Mating
Immersion Test Method
Mechanical Shock Test Method
IEC 60068211
1 m
Mated
IEC 60529:2001, IP68
IEC 60068227
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 2 of 3
1/18/2008
Product Specifications
Moisture Resistance Test Method
Operating Temperature
Storage Temperature
Thermal Shock Test Method
Vibration Test Method
IEC 6006823
55 °C to +85 °C (67 °F to +185 °F)
65 °C to +125 °C (85 °F to +257 °F)
IEC 60068214
IEC 6006826
Standard Conditions
Attenuation, Ambient Temperature
Average Power, Ambient Temperature
Average Power, Inner Conductor Temperature
20 °C | 68 °F
40 °C | 104 °F
100 °C | 212 °F
* Footnotes
Immersion Depth
Immersion at specified depth for 24 hours
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 3 of 3
1/18/2008
