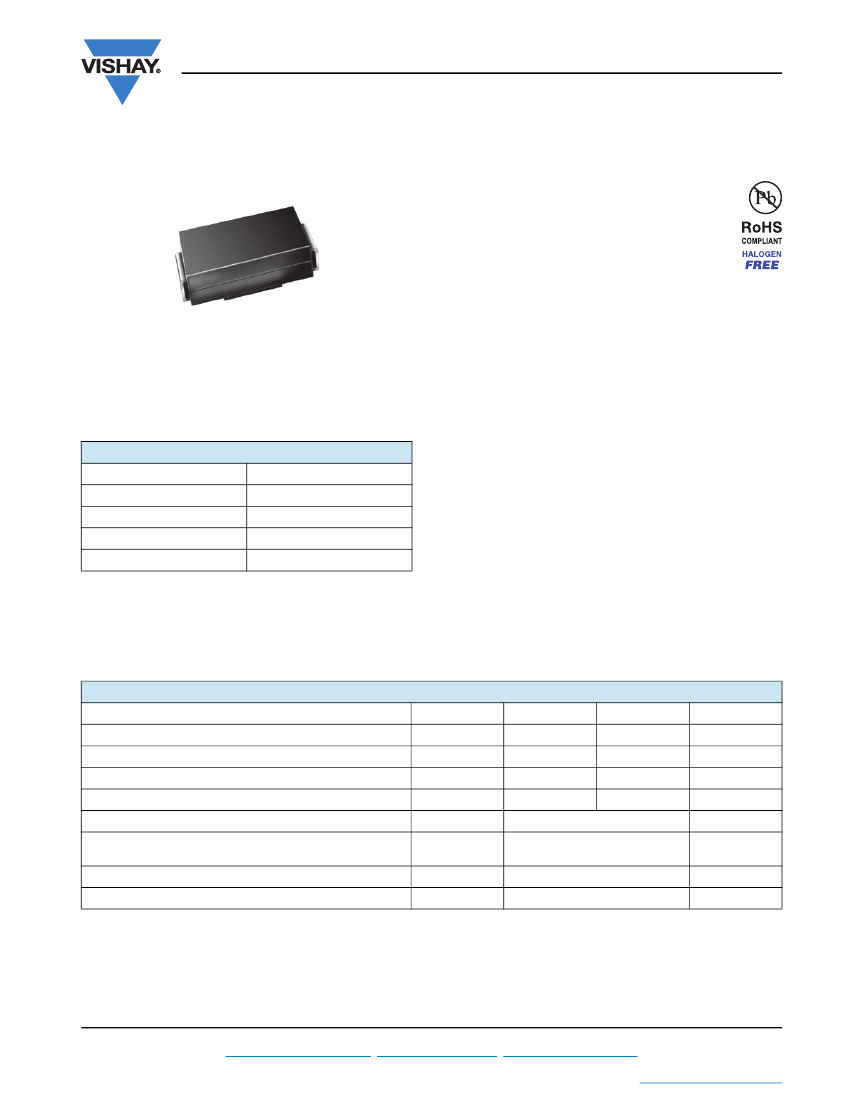

B230LA, B240A

Vishay General Semiconductor

High-Current Density Surface Mount Schottky Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Low forward voltage drop

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

2.0 A

30 V, 40 V

50 A

0.50 V, 0.55 V

150 °C

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test

Polarity:

Color band denotes the cathode end

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

(fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

B230LA

B23

2.0

10 000

- 65 to + 150

B240A

B24

V/μs

°C

UNIT
