TCM2310MV Overview

Data Line Filter,

TCM2310MV Parametric

Parameter NameAttribute value
MakerEXXELIA Group
Reach Compliance Codecompliant
CertificationUL
filter typeDATA LINE FILTER
high23 mm
inductance10000 µH
length23 mm
Installation typeTHROUGH HOLE MOUNT
Number of functions2
Number of terminals4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Rated current1.2 A
width15.5 mm

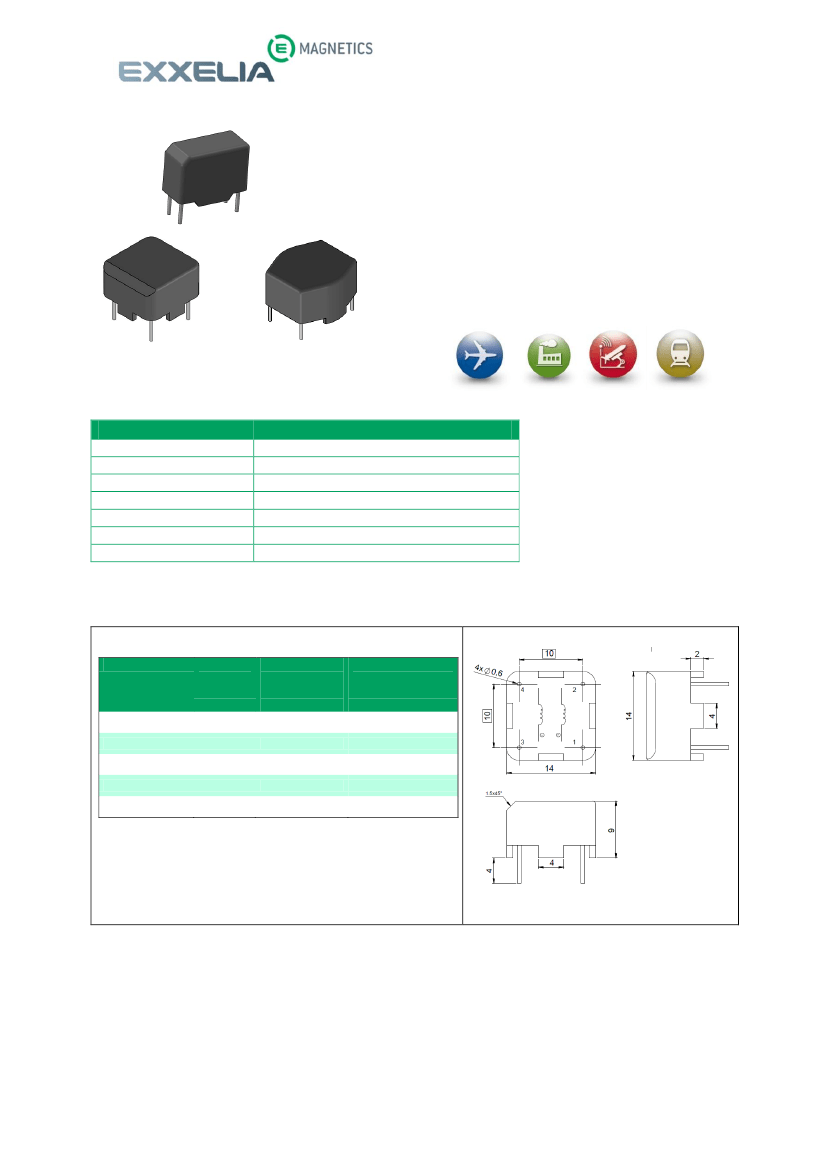

TCM Serie
Common Mode Choke
BENEFITS
Designed and qualified for aerospace
Through Hole package -
RMS current range from 0.3 A to 4A
Dielectric withstanding strength 1500V AC
Materials meet UL94-V0 rating
Operating temperature range : -55°C _ +125°C
High mechanical resistance
APPLICATION
TMC range
TCM14
TCM17
TCM22
TCM28

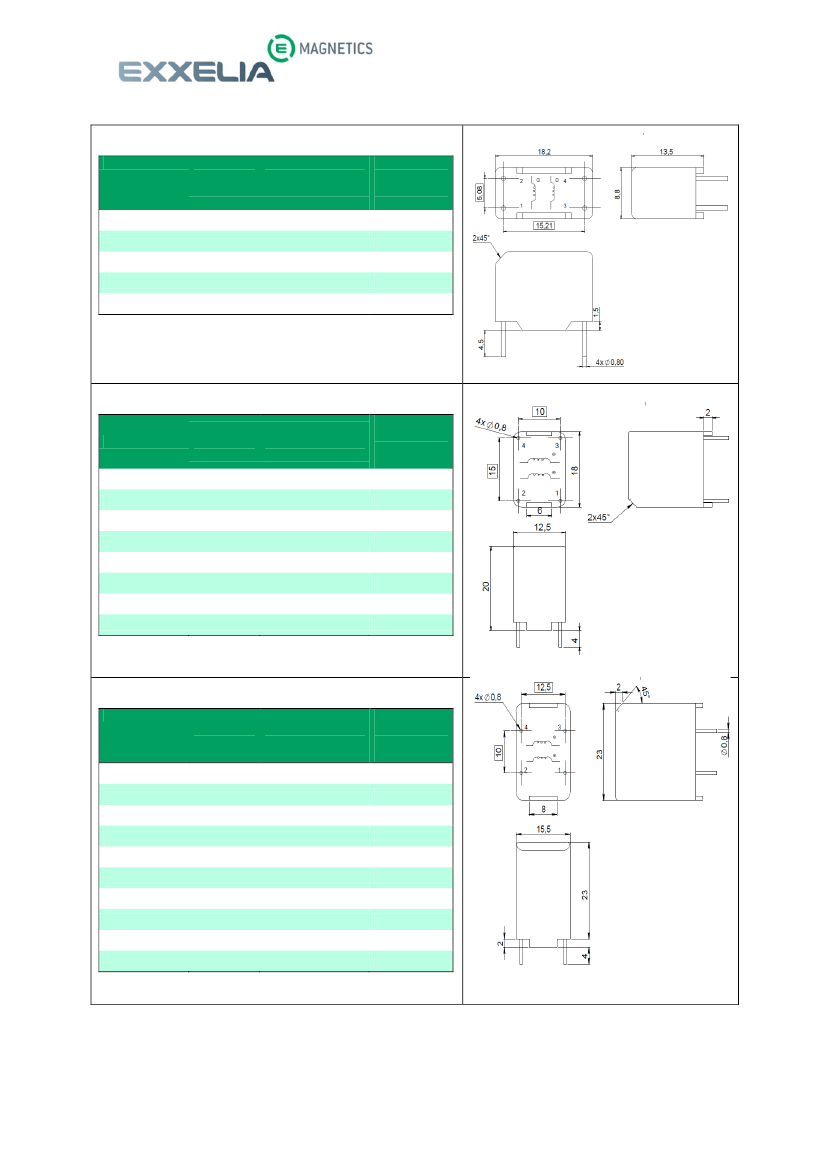

TCM18
TCM19
TCM23
xxx H
xxx H
xxx H
xxx H
xxx V
xxx V
xxx V
0.3A/12mH -> 2A/1.1mH
0.4A/39mH -> 4A/0.7mH
0.3A/47mH
4A/1.5mH
0.6A/47mH
2.5A/3.3mH
0.3A/12mH
2A/1.1mH
0.4A/39mH
4A/0.7mH
0.3A/47mH
4A/1.5mH

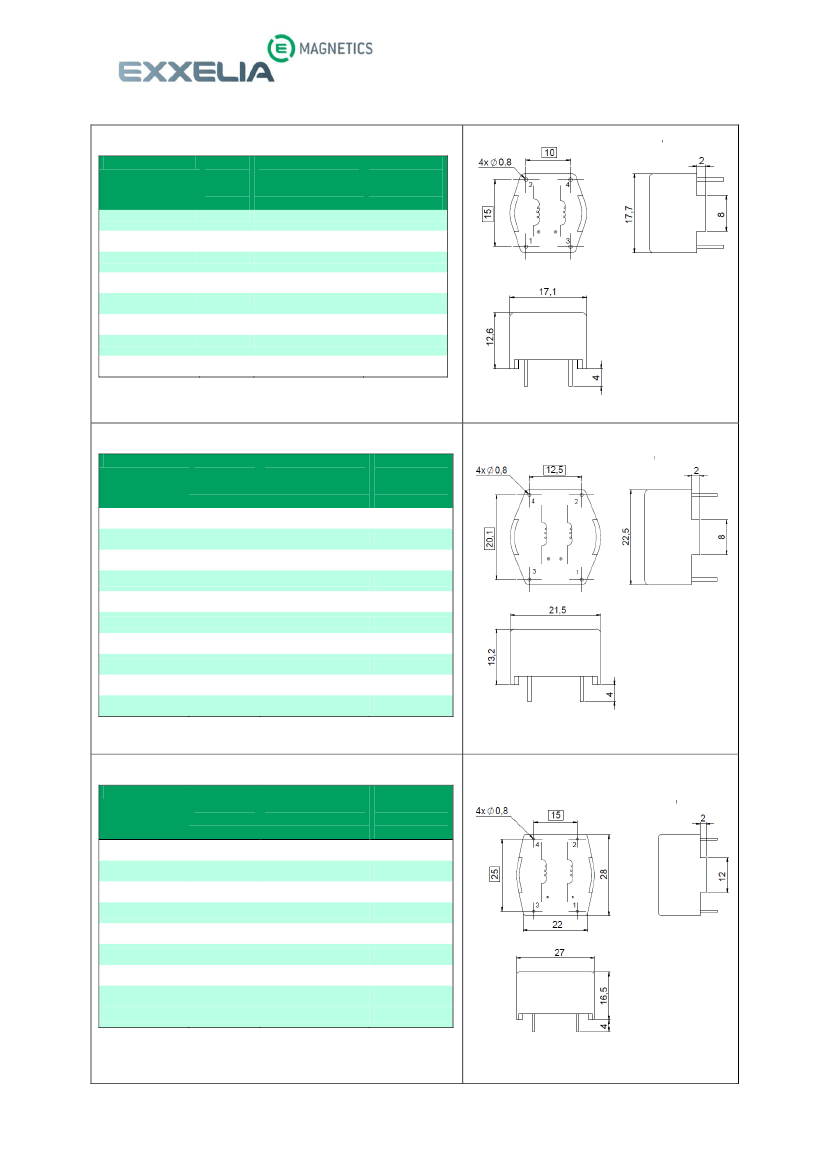

TCM14
Nominal
Current
(A)
TCM14 12M H
TCM14 4M4 H
TCM14 3M0 H
TCM14 1M6 H
TCM14 1M1 H
0,3
0,6
1
1,5
2
Inductance
value
per winding
(mH)
12
4,4
3
1,6
1,1
Rdc per winding
Typ
(mΏ)
1275
385
205
100
70
1
