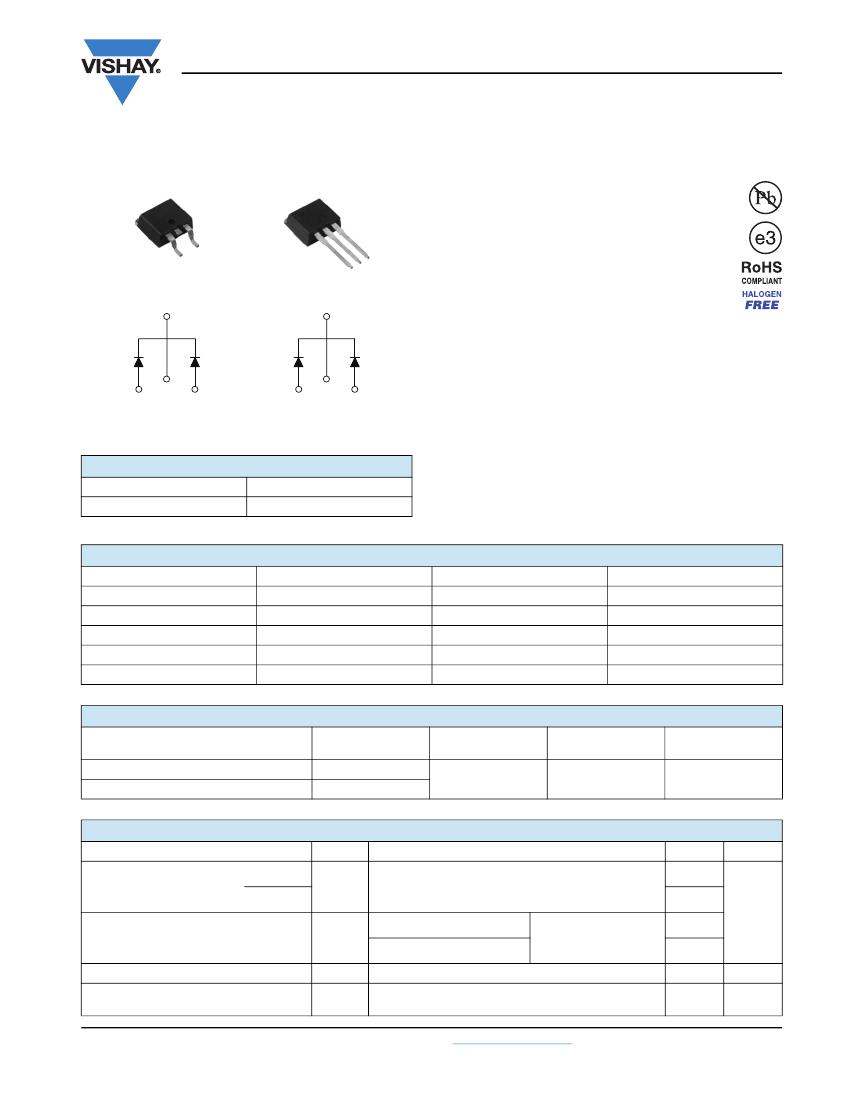

VS-43CTQ...SPbF, VS-43CTQ...-1PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 20 A
VS-43CTQ...SPbF
VS-43CTQ...-1PbF
FEATURES
•
•
•
•
175 °C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long
term reliability
Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
Halogen-free according to IEC 61249-2-21 definition
Compliant to RoHS directive 2002/95/EC
AEC-Q101 qualified
Base
common
cathode
2
Base
common
cathode
2
•
•
•
2
1 Common
3
Anode cathode Anode
2
1 Common
3
Anode cathode Anode
•
•
•
D
2
PAK
TO-262
DESCRIPTION
This center tap Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, freewheeling diodes, and reverse battery
protection.
PRODUCT SUMMARY
I
F(AV)
V
R
2 x 20 A
80 V/100 V
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 μs sine
20 Apk, T
J
= 125 °C (per leg)
Range
CHARACTERISTICS
Rectangular waveform
VALUES
40
80/100
850
0.67
- 55 to 175
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
VS-43CTQ080SPbF
VS-43CTQ080-1PbF
80
VS-43CTQ100SPbF
VS-43CTQ100-1PbF
100
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average
forward current
See fig. 5
per leg
I
F(AV)
per device
5 μs sine or 3 μs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
50 % duty cycle at T
C
= 135 °C, rectangular waveform
40
A
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
850
275
7.50
0.50
mJ
A
SYMBOL
TEST CONDITIONS
VALUES
20
UNITS
T
J
= 25 °C, I
AS
= 0.50 A, L = 60 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Document Number: 94224
Revision: 15-Mar-10
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
1
VS-43CTQ...SPbF, VS-43CTQ...-1PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 20 A
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
20 A
Maximum forward voltage drop per leg
See fig. 1
V
FM (1)
40 A
20 A
40 A
Maximum reverse leakage current per leg
See fig. 2
Threshold voltage
Forward slope resistance
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
V
F(TO)
r
t
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
maximum
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz), 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= Rated V
R
VALUES
0.81
0.98
0.67
0.81
1
11
0.71
0.43
1480
8.0
10 000
mA
V
mΩ
pF
nH
V/μs
V
UNITS
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style D
2
PAK
Marking device
Case style TO-262
SYMBOL
T
J
, T
Stg
TEST CONDITIONS
VALUES
- 55 to 175
2.0
R
thJC
DC operation
1.0
R
thCS
Mounting surface, smooth and greased
0.50
2
0.07
6 (5)
12 (10)
g
oz.
kgf
⋅
cm
(lbf
⋅
in)
°C/W
UNITS
°C
Mounting torque
43CTQ080S
43CTQ100S
43CTQ080-1
43CTQ100-1
www.vishay.com
2
For technical questions, contact:
diodestech@vishay.com
Document Number: 94224
Revision: 15-Mar-10

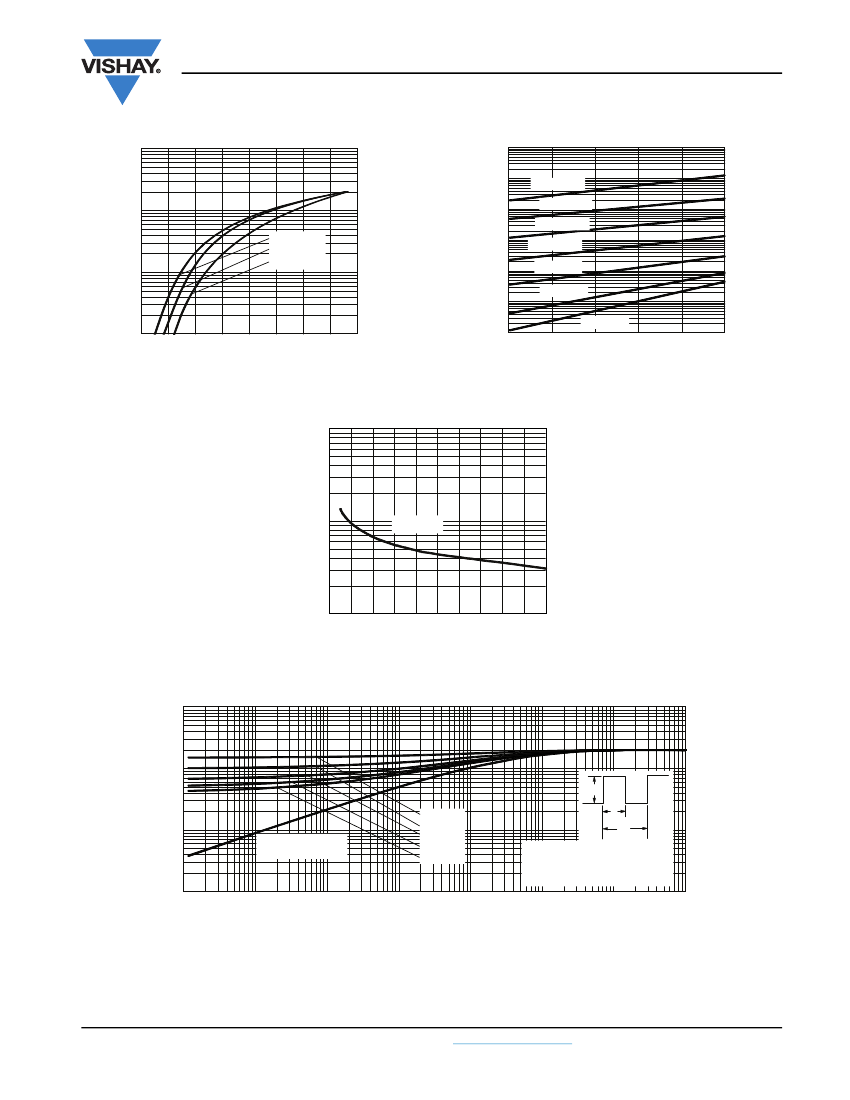

VS-43CTQ...SPbF, VS-43CTQ...-1PbF Series
Schottky Rectifier, 2 x 20 A
Vishay High Power Products
I
F
- Instantaneous Forward Current (A)
1000
1000
I
R
- Reverse Current (mA)
100
10
1
0.1
0.01
T
J
= 175 °C
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
T
J
= 75 °C
T
J
= 50 °C
T
J
= 25 °C
100
10
T
J
= 175 °C
T
J
= 125 °C
T
J
= 25 °C
1
0.2
0.001
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
20
40
60
80
100
V
FM
- Forward Voltage Drop (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
(Per Leg)
10 000
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
C
T
- Junction Capacitance (pF)
1000
T
J
= 25 °C
100
0
20
40
60
80
100
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
Z
thJC
- Thermal Impedance (°C/W)
10
1
P
DM
t
1
t
2
0.1
Single pulse
(thermal resistance)
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
10
100
0.01
0.00001
0.0001
0.001
0.01
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics (Per Leg)
Document Number: 94224
Revision: 15-Mar-10
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
3
VS-43CTQ...SPbF, VS-43CTQ...-1PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 20 A
180
170
160
150
140
130
120
110
Allowable Case Temperature (°C)
20
Average Power Loss (W)
DC
15
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
DC
RMS limit
10
Square
wave
(D = 0.50)
80% rated V
R
applied
5
See note (1)
100
0
0
5
10
15
20
25
30
0
5
10
15
20
25
30
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current (Per Leg)
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
I
FSM
- Non-Repetitive Surge Current (A)
1000
At any rated load condition
and
with
rated V
RRM
applied
following surge
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
High-speed
switch
Freewheel
diode
40HFL40S02
+ V
d
= 25 V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 10 V
(1)
www.vishay.com
4
For technical questions, contact:
diodestech@vishay.com
Document Number: 94224
Revision: 15-Mar-10
VS-43CTQ...SPbF, VS-43CTQ...-1PbF Series
Schottky Rectifier, 2 x 20 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
VS-
1
1
2
3
4
5
6
7
8
-
-
-
-
-
-
-
-
43
2
C
3
T
4
Q
5
100
6
S
7
TRL PbF
8
9
HPP product suffix
Current rating (40 A)
Circuit configuration: C = Common cathode
T = TO-220
Schottky “Q” series
Voltage ratings
S = D
2
PAK
-1 = TO-262
None = Tube (50 pieces)
TRL = Tape and reel (left oriented - for D
2
PAK only)
TRR = Tape and reel (right oriented - for D
2
PAK only)
080 = 80 V
100 = 100 V
9
-
PbF = Lead (Pb)-free
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
Packaging information
SPICE model
www.vishay.com/doc?95014
www.vishay.com/doc?95008
www.vishay.com/doc?95032
www.vishay.com/doc?95065
Document Number: 94224
Revision: 15-Mar-10
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
5
