8DA605F35PB datasheet, PDF - EEWORLD Datasheet

8DA605F35PB: DescriptionMIL Series Connector, 3 Contact(s), Stainless Steel, Male, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size508KB，4 Pages; ManufacturerEsterline Technologies Corporation; Environmental Compliance

Download Datasheet Parametric View All

8DA605F35PB Overview

MIL Series Connector, 3 Contact(s), Stainless Steel, Male, Plug, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Esterline Technologies Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION/TEMPERATURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	5
Total number of contacts	3

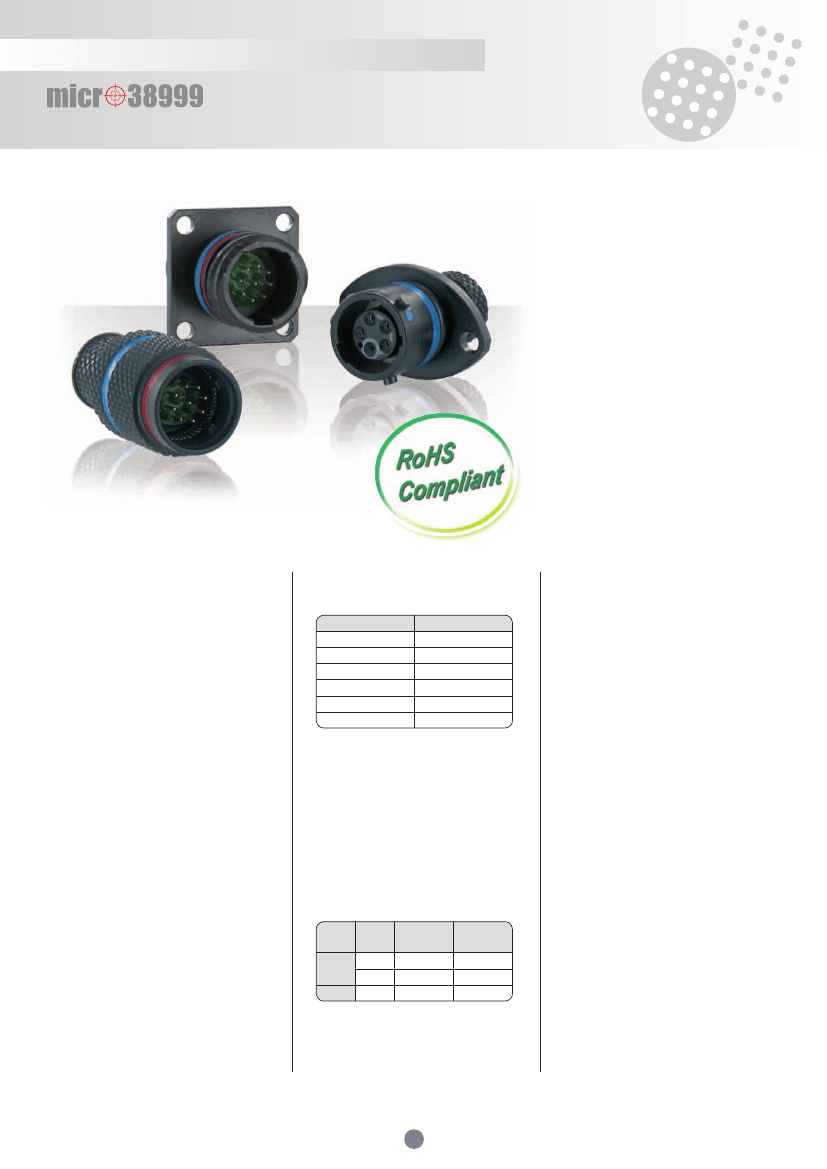

8DA, 8BA & 8LTA Series

The Wild Children of D38999

A complete range of space saving miniature connectors with all of the

features and capabilities of D38999 for harsh applications.

A compact and complete solution

Diameter up to 45% smaller than size 9 (D38999).

Up to 50% shorter.

Threaded, break away and bayonet coupling.

With #26 contacts (in accordance with 39029).

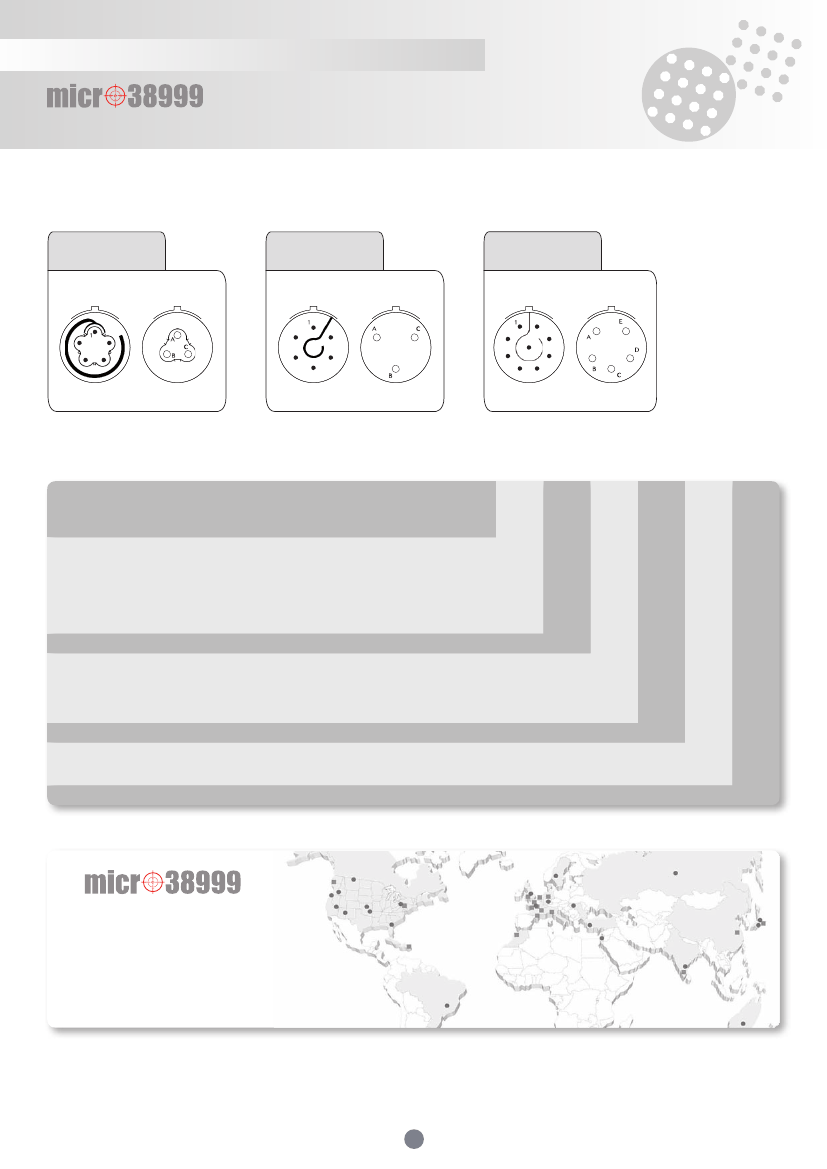

5 layouts (size 3, 5 and 7 with #22 & #26).

Designed to meet D38999 requirements.

IP67 sealing when mated.

Scoop proof.

Available in zinc nickel (RoHS) plating, as well as

nickel and olive drab cadmium.

Cost and space saving.

Not QPL registered.

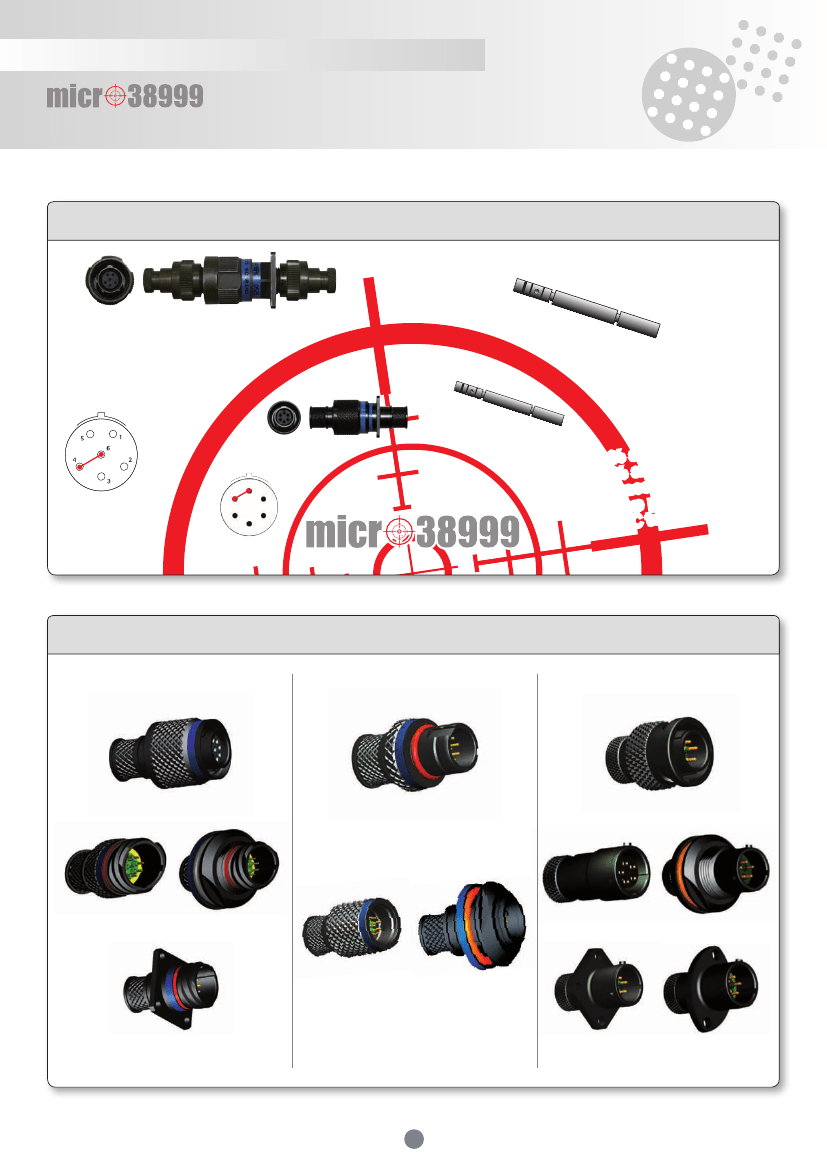

A high density solution

Excellent features

RoHS and Cadmium free

Integrated backshell
