HMC773LC3B_10 Overview

GaAs MMIC Fundam ental Mixer, 6 - 26 GHz

HMC773LC3B
v03.0809
GaAs MMIC FundAMentAl
MIxer, 6 - 26 GHz
Features
Passive: No DC Bias required
input iP3: +22 dBm
LO/rF isolation: 38 dB
Wide iF Bandwidth: DC - 8 GHz

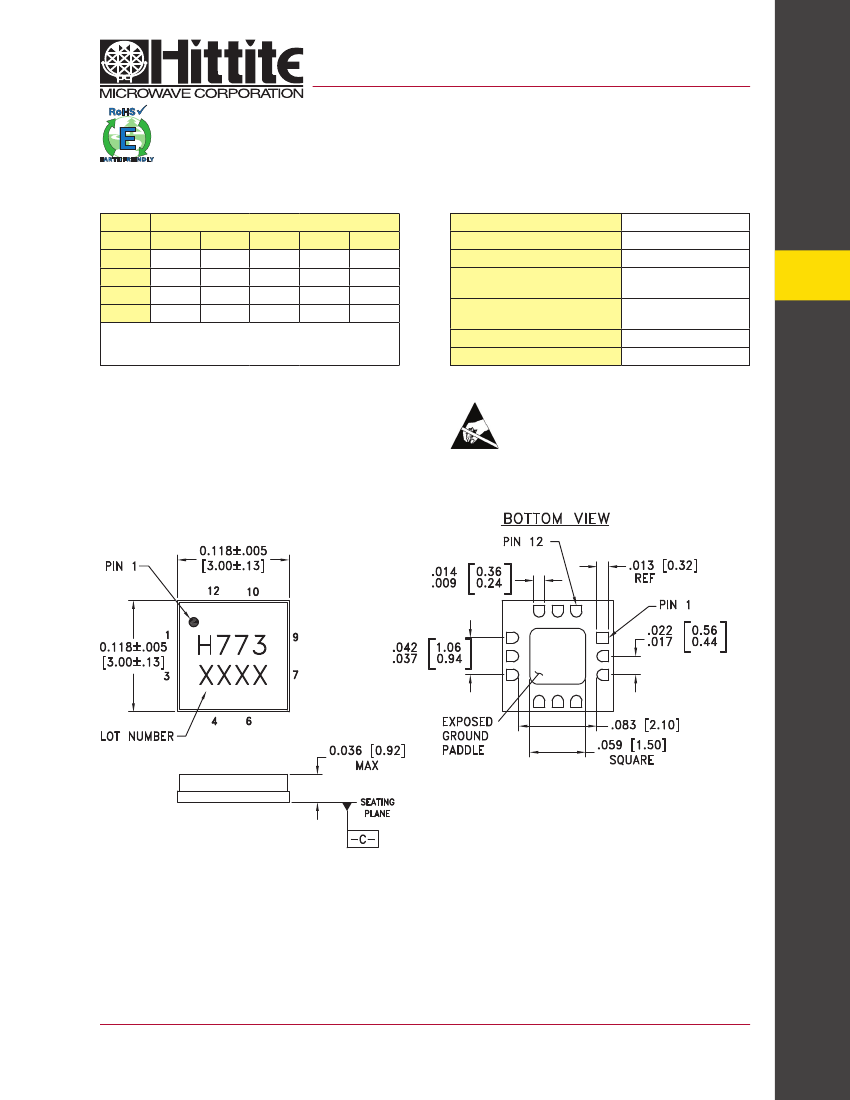

12 Lead Ceramic 3x3 mm sMT Package: 9mm
2
typical Applications
The HMC773LC3B is ideal for:
• Point-to-Point radios
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
• Point-to-Multi-Point radios & VsAT
• Test equipment & sensors
• Military end-Use

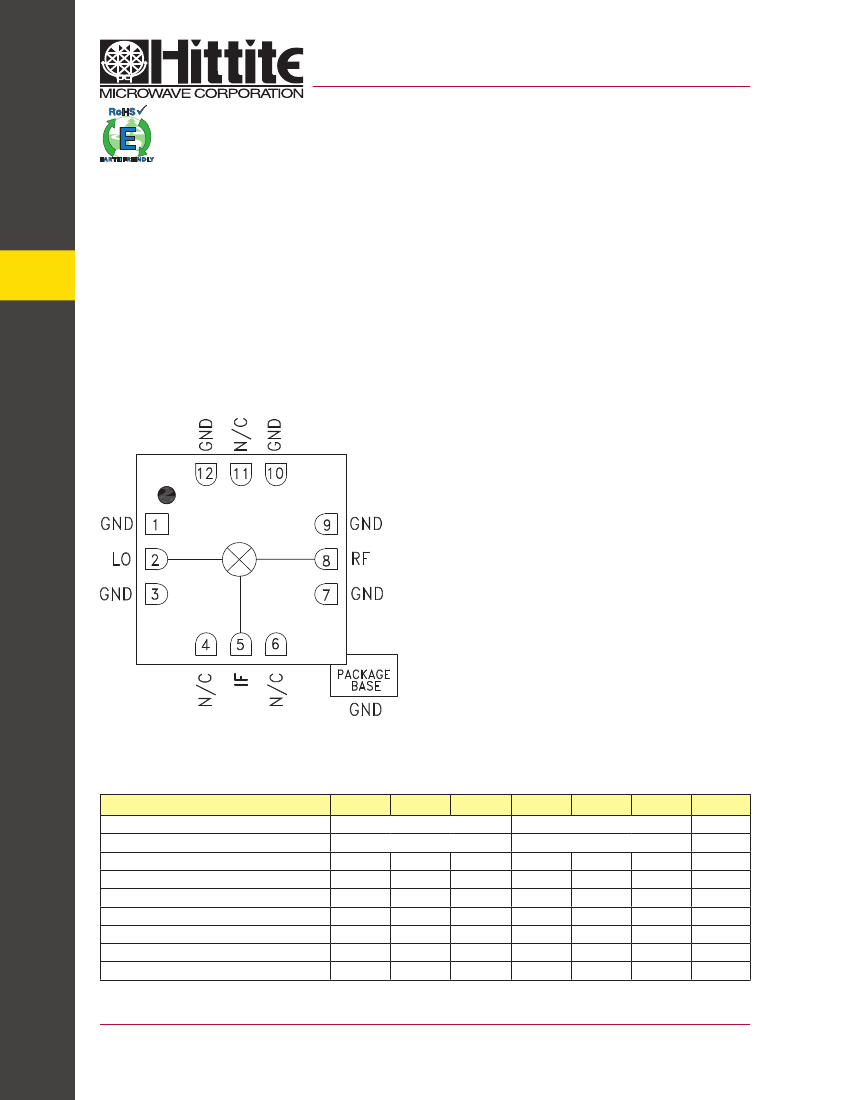

Functional diagram
General description
The HMC773LC3B is a general purpose double
balanced mixer in a leadless roHs compliant sMT
package that can be used as an upconverter or
downconverter between 6 and 26 GHz. This mixer
requires no external components or matching
circuitry. The HMC773LC3B provides excellent LO to
rF and LO to iF suppression due to optimized balun
structures. The mixer operates with LO drive levels
above +13 dBm. The HMC773LC3B eliminates the
need for wire bonding, allowing use of surface mount
manufacturing techniques.
electrical Specifications,
t
A
= +25° C, IF = 0.5 GHz, lO = +13 dBm*
Parameter
Frequency range, rF & LO
Frequency range, iF

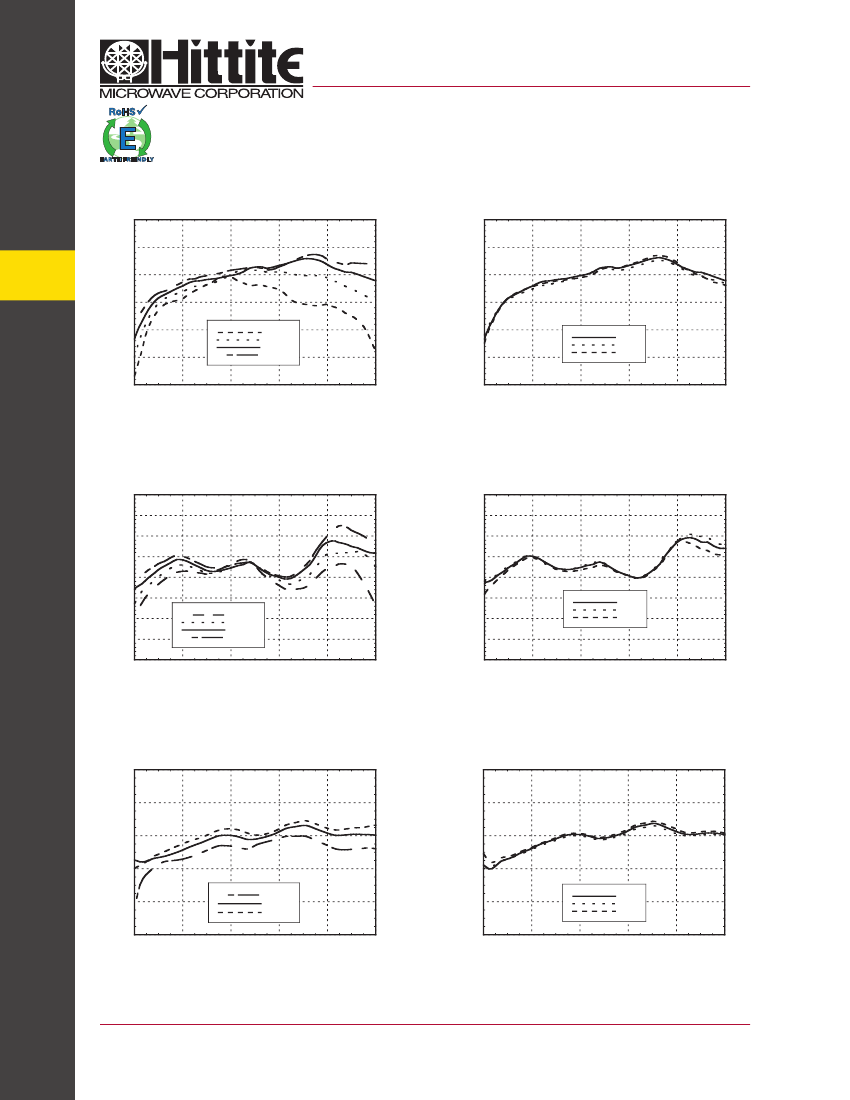

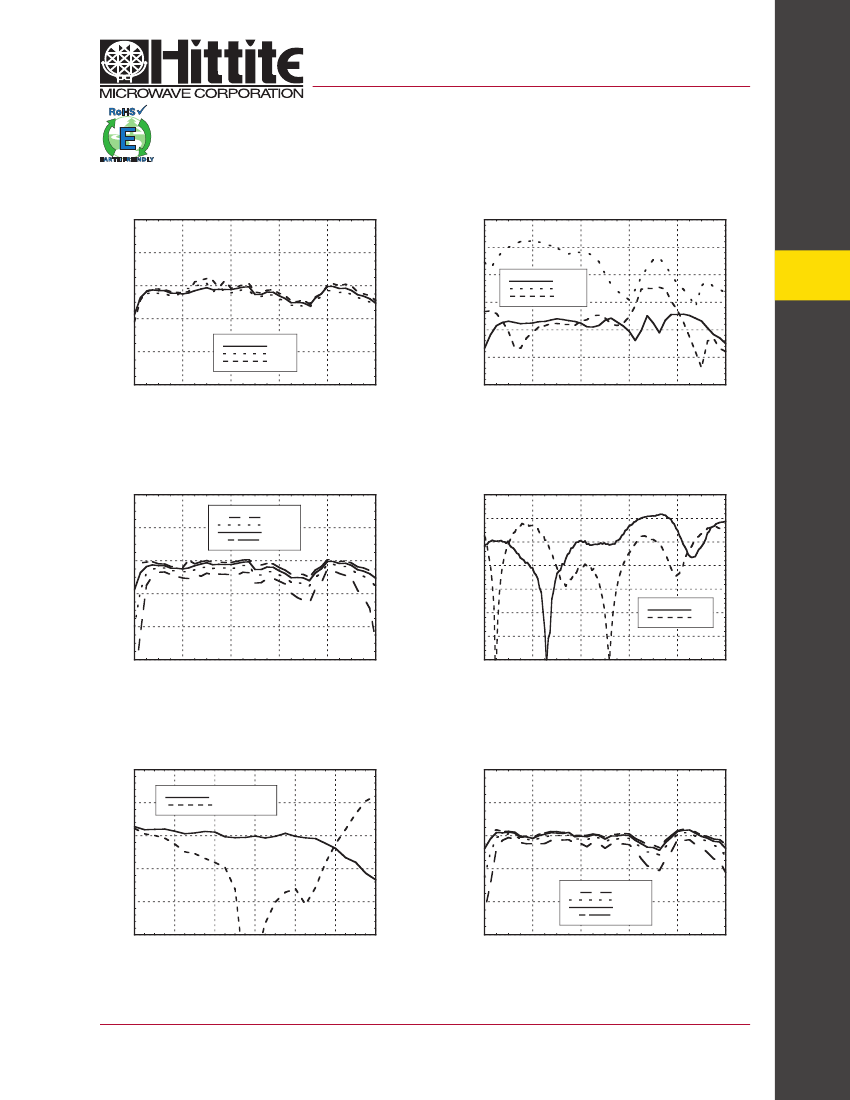

Conversion Loss
LO to rF isolation
LO to iF isolation
rF to iF isolation
iP3 (input)
iP2 (input)
1 dB Gain Compression (input)
31
5
Min.
Typ.
6 - 16
DC - 8
9
37
37
11
17
45
10
21
10
12
Max.
Min.
Typ.
16 - 26
DC - 8
9
39
32
20
22
50
11
11
Max.
Units
GHz
GHz
dB
dB
dB
dB
dBm
dBm
dBm
* Unless otherwise noted, all measurements performed as downconverter, IF = 0.5 GHz
10 - 1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
