HMC552LP4
/
552LP4E
v03.1210
GaAs MMIC MIXER w/ INTEGRATED
LO AMPLIFIER, 1.6 - 3.0 GHz
Features
input iP3: +25 dBm
Low input LO Drive: -4 to +4 dBm
LO to rF isolation: 30 dB
Low Conversion Loss: 8 dB
single Positive supply: +5V @ 62 mA
robust 1,000V esD, Class 1C
24 Lead 4x4mm sMT Package: 16mm
2
Typical Applications
The HMC552LP4 / HMC552LP4e is ideal for
Wireless infrastructure Applications:
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
• PCS / 3G Infrastructure
• Base Stations & Repeaters
• WiMAX & WiBro
• ISM & Fixed Wireless

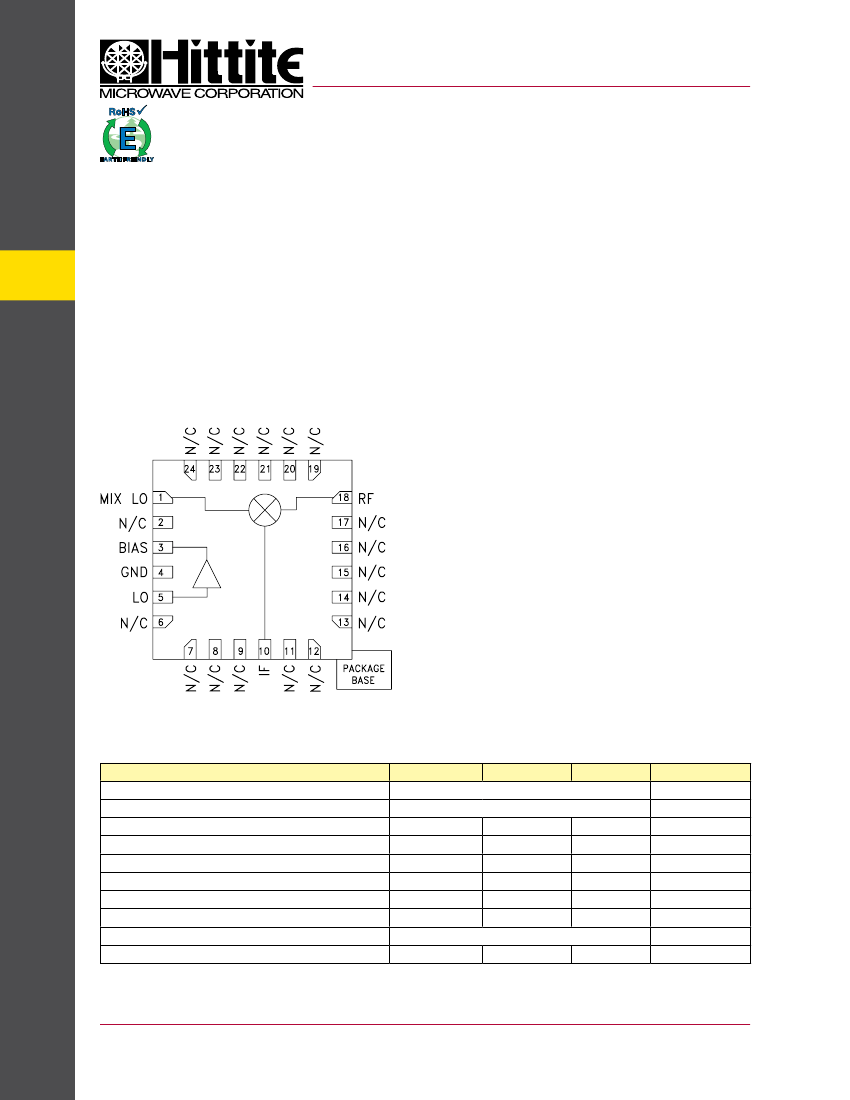

Functional Diagram
General Description
The HMC552LP4 & HMC552LP4e are high linearity,
double-balanced converter iCs that operate from
1.6 to 3.0 GHz and deliver a +25 dBm input third
order intercept point. The LO amplifier output and
high dynamic range mixer input are positioned so
that an external LO filter can be placed in series
be-tween them. The converter provides 30 dB of
LO to rF isolation and is ideal for upconverter and
down-converter applications. The iC operates from
a single +5V supply consuming 62 mA of current
and accepts a LO drive level of -4 to +4 dBm. The
design requires no external baluns and supports
iF frequencies between DC and 1 GHz. The
HMC552LP4 & HMC552LP4e are pin for pin com-
patible with the HMC551LP4 & HMC551LP4e, which
operate from 0.8 to 1.2 GHz.
Electrical Specifications, T
A
= +25° C, LO = 0 dBm, Vcc = +5V, R1 = 18 Ohms, IF = 100
MHz*
Parameter
Frequency range, rF, LO
Frequency range, iF
Conversion Loss
Noise Figure (ssB)
LO to rF isolation
LO to iF isolation
iP3 (input)
1 dB Compression (input)
LO Drive input Level (Typical)
supply Current (icc)
25
10
Min.
Typ.
1.6 - 3.0
DC - 1.0
8
8
30
20
25
16
-4 to +4
62
10
Max.
Units
GHz
GHz
dB
dB
dB
dB
dBm
dBm
dBm
mA
*Unless otherwise noted, all measurements performed as a downconverter configured as shown in application circuit.
10 - 1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC552LP4
/
552LP4E
v03.1210
GaAs MMIC MIXER w/ INTEGRATED
LO AMPLIFIER, 1.6 - 3.0 GHz

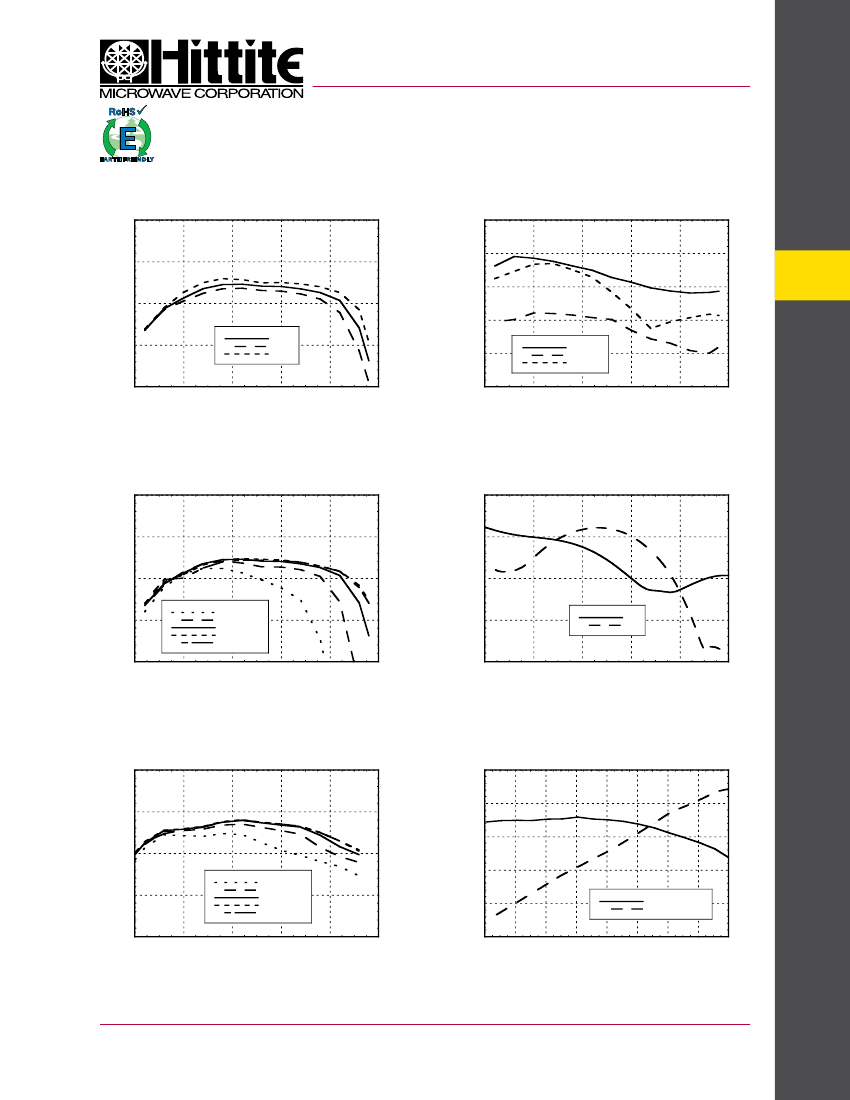

Isolation @ LO = 0 dBm
0
Conversion Gain
vs. Temperature @ LO = 0 dBm
0
CONVERSION GAIN (dB)
-5
ISOLATION (dB)
-10
-20
-10
10
RF to IF
LO to RF
LO to IF
-30
-15
+25C
+85C
-40C
-40
-20
1
1.5
2
2.5
3
3.5
FREQUENCY (GHz)
-50
1
1.5
2
2.5
3
3.5
FREQUENCY (GHz)
Conversion Gain vs. LO Drive
0
Return Loss @ LO = 0 dBm
0
-10
RETURN LOSS (dB)
-5
-5
-10
-15
LO= -4 dBm
LO= -2 dBm
LO= 0 dBm
LO= 2 dBm
LO= 4 dBm
-15
RF
LO
-20
1
1.5
2
2.5
3
3.5
FREQUENCY (GHz)
-20
1
1.5
2
2.5
3
3.5
FREQUENCY (GHz)
Upconverter Performance
Conversion Gain vs. LO Drive
0
IF Bandwidth @ LO = 0 dBm
0
CONVERSION GAIN (dB)
-5
RESPONSE (dB)
-5
-10
-10
LO= -4 dBm
LO= -2 dBm
LO= 0 dBm
LO= 2 dBm
LO= 4 dBm
-15
-15
-20
Conversion Gain
Return Loss
-20
1
1.5
2
2.5
3
3.5
FREQUENCY (GHz)
-25
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
FREQUENCY (GHz)
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 2
Mixers - siNGLe & DOUBLe BALANCeD - sMT
CONVERSION GAIN (dB)
HMC552LP4
/
552LP4E
v03.1210
GaAs MMIC MIXER w/ INTEGRATED
LO AMPLIFIER, 1.6 - 3.0 GHz

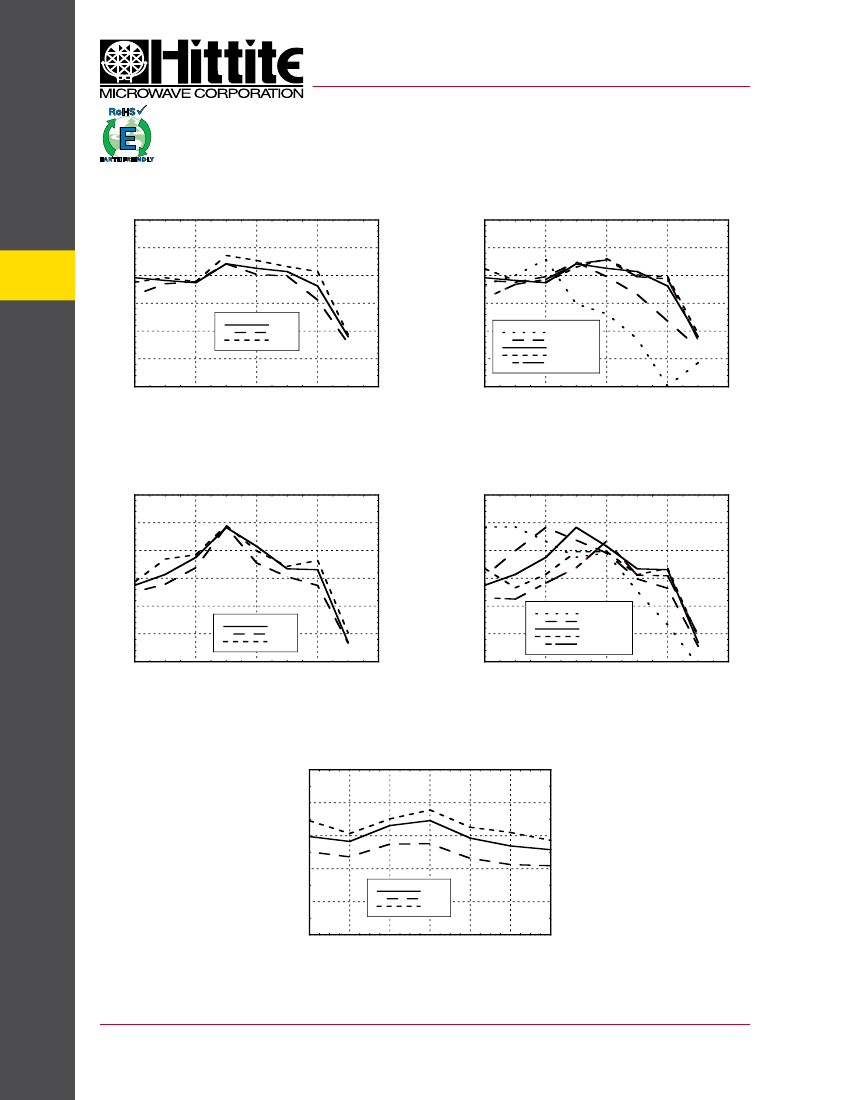

Input IP3 vs. LO Drive
35
30
25
IP3 (dBm)
20
15
10
5
1.5
LO= -4 dBm
LO= -2 dBm
LO= 0 dBm
LO= 2 dBm
LO= 4 dBm
Input IP3 vs. Temperature @ LO = 0 dBm
35
30
IP3 (dBm)
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
25
20
15
10
5
1.5
+25C
+85C
-40C
2
2.5
FREQUENCY (GHz)
3
3.5
2
2.5
FREQUENCY (GHz)
3
3.5
Input IP2 vs. Temperature @ LO = 0 dBm
80
70
60
IP2 (dBm)
50
40
30
20
1.5
+25C
+85C
-40C
Input IP2 vs. LO Drive
80
70
60
IP2 (dBm)
50
40
30
20
1.5
LO= -4 dBm
LO= -2 dBm
LO= 0 dBm
LO= 2 dBm
LO= 4 dBm
2
2.5
FREQUENCY (GHz)
3
3.5
2
2.5
FREQUENCY (GHz)
3
3.5
Input P1dB vs. Temperature @ LO = 0 dBm
20
18
P1dB (dBm)
16
14
+25C
+85C
-40C
12
10
1.5
1.8
2
2.2
2.5
2.7
3
FREQUENCY (GHz)
10 - 3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC552LP4
/
552LP4E
v03.1210
GaAs MMIC MIXER w/ INTEGRATED
LO AMPLIFIER, 1.6 - 3.0 GHz
Harmonics of LO
nLO spur @ rF Port
MxN Spurious @ IF Port
nLO
mrF
0
1
2
3
4
0
xx
7
79
102
103
1
-3
0
66
105
107
2
16
23
61
93
107
3
16
44
61
94
102
4
25
53
98
84
103
LO Freq. (GHz)
1.5
1.8
2.1
2.4
2.7
3.0
1
27
28
28
34
36
41
2
17
16
18
21
28
27
3
31
40
31
33
42
48
4
32
44
47
41
46
54
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
10 - 4
rF Freq. = 1.9 GHz @ -10 dBm
LO Freq. = 1.8 GHz @ 0 dBm
All values in dBc relative to the iF power level.
LO = 0 dBm
All values in dBc below input LO level measured at rF port.
Typical Supply Current
Vcc
+5.0
icc (mA)
62 mA
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC552LP4
/
552LP4E
v03.1210
GaAs MMIC MIXER w/ INTEGRATED
LO AMPLIFIER, 1.6 - 3.0 GHz
Absolute Maximum Ratings
rF / iF input (Vcc= +5V)
LO Drive (Vcc= +5V)
+31 dBm
+10 dBm
+7 Vdc
150°C
0.6 W
105.6 °C/W
-65 to +150°C
-40 to +85°C
Class 1C
10
Mixers - siNGLe & DOUBLe BALANCeD - sMT
BiAs
Junction Temperature
Continuous Pdiss (T = 85°C)
(derate 9.5 mW/°C above 85°C)
Thermal resistance
(junction to ground paddle)
storage Temperature
Operating Temperature
esD sensitivity (HBM)
eLeCTrOsTATiC seNsiTiVe DeViCe
OBserVe HANDLiNG PreCAUTiONs

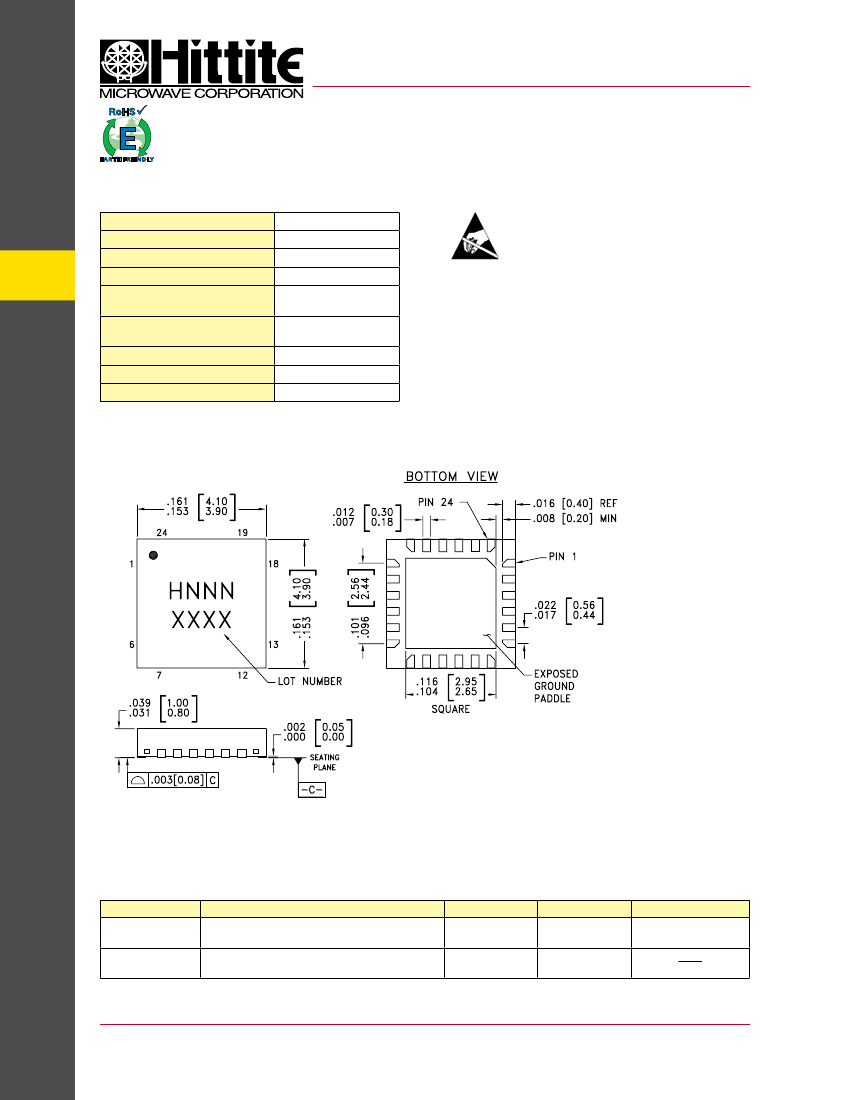

Outline Drawing
NOTes:
1. LeADFrAMe MATeriAL: COPPer ALLOY
2. DiMeNsiONs Are iN iNCHes [MiLLiMeTers]
3. LeAD sPACiNG TOLerANCe is NON-CUMULATiVe.
4. PAD BUrr LeNGTH sHALL Be 0.15mm MAxiMUM.
PAD BUrr HeiGHT sHALL Be 0.05mm MAxiMUM.
5. PACKAGe WArP sHALL NOT exCeeD 0.05mm.
6. ALL GrOUND LeADs AND GrOUND PADDLe MUsT Be
sOLDereD TO PCB rF GrOUND.
7. reFer TO HiTTiTe APPLiCATiON NOTe FOr sUGGesTeD
LAND PATTerN.
Package Information
Part Number
HMC552LP4
HMC552LP4e
Package Body Material
Low stress injection Molded Plastic
roHs-compliant Low stress injection Molded Plastic
Lead Finish
sn/Pb solder
100% matte sn
MsL rating
MsL1
MsL1
[1]
Package Marking
[3]
H552
xxxx
H552
xxxx
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number xxxx
10 - 5
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
