HMC407MS8G_09

Description
5000 MHz - 7000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER
CategoryTopical application    Wireless rf/communication
File Size215KB,6 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Download Datasheet Parametric View All

HMC407MS8G_09 Overview

5000 MHz - 7000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER

HMC407MS8G_09 Parametric

Parameter NameAttribute value
Maximum input power20 dBm
Number of terminals8
Minimum operating frequency5000 MHz
Maximum operating frequency7000 MHz
Minimum operating temperature-40 Cel
Maximum operating temperature85 Cel
Processing package descriptionROHS COMPLIANT, PLASTIC, SMT, 8 PIN
each_compliYes
EU RoHS regulationsYes
stateActive
Microwave RF TypeWIDE BAND MEDIUM POWER
Impedance characteristics50 ohm
structureCOMPONENT
Gain10 dB
jesd_609_codee3
Number of functions1
Packaging MaterialsPLASTIC/EPOXY
ckage_equivalence_codeTSSOP8,.19
wer_supplies__v_5
sub_categoryRF/Microwave Amplifiers
CraftsmanshipBIPOLAR
terminal coatingMATTE TIN (394) OVER COPPER
HMC407MS8G
/
407MS8GE
v03.1006
GaAs InGaP HBT MMIC
POWER AMPLIFIER, 5 - 7 GHz
Typical Applications
This amplifier is ideal for use as a power
amplifier for 5 - 7 GHz applications:
• UNII
• HiperLAN
Features
Gain: 15 dB
Saturated Power: +29 dBm
28% PAE
Supply Voltage: +5V
Power Down Capability
No External Matching Required
11
LINEAR & POWER AMPLIFIERS - SMT

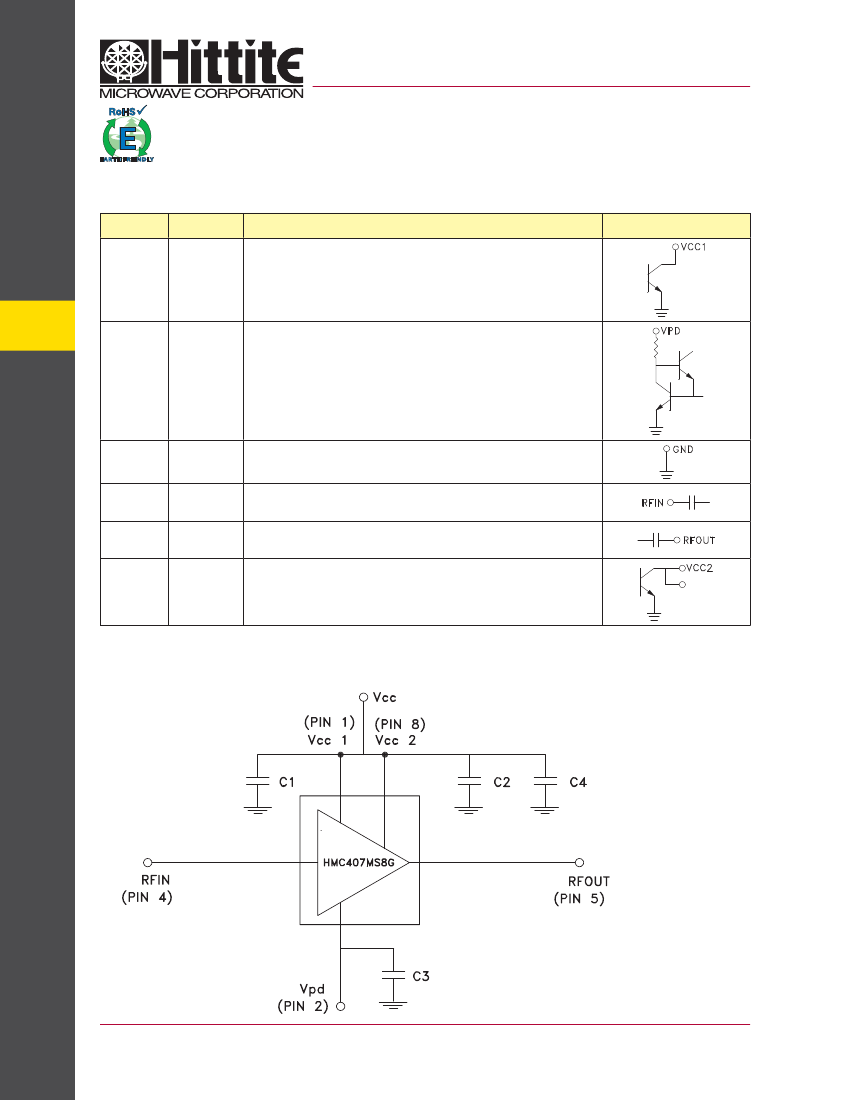

Functional Diagram
General Description
The HMC407MS8G & HMC407MS8GE are high
efficiency GaAs InGaP Heterojunction Bipolar
Transistor (HBT) MMIC Power amplifiers which
operate between 5 and 7 GHz. The amplifier requires
no external matching to achieve operation and is
thus truly 50 Ohm matched at input and output. The
amplifier is packaged in a low cost, surface mount
8 leaded package with an exposed base for im-
proved RF and thermal performance. The amplifier
provides 15 dB of gain, +29 dBm of saturated power
at 28% PAE from a +5V supply voltage. Power down
capability is available to conserve current consum-
ption when the amplifier is not in use.
Electrical Specifi cations,
T
A
= +25° C, Vs = 5V, Vpd = 5V
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Input Return Loss
Output Return Loss
Output Power for 1 dB Compression (P1dB)
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Noise Figure
Supply Current (Icq)
Control Current (Ipd)
Switching Speed
Vpd = 0V/5V
Vpd = 5V
tON, tOFF
32
21
10
Min.
Typ.
5-7
15
0.025
12
15
25
29
37
5.5
0.002 / 230
7
30
36
22
18
0.035
12
Max.
Min.
Typ.
5.6 - 6.0
15
0.025
12
15
25
29
40
5.5
0.002 / 230
7
30
18
0.035
Max.
Units
GHz
dB
dB/ °C
dB
dB
dBm
dBm
dBm
dB
mA
mA
ns
11 - 28

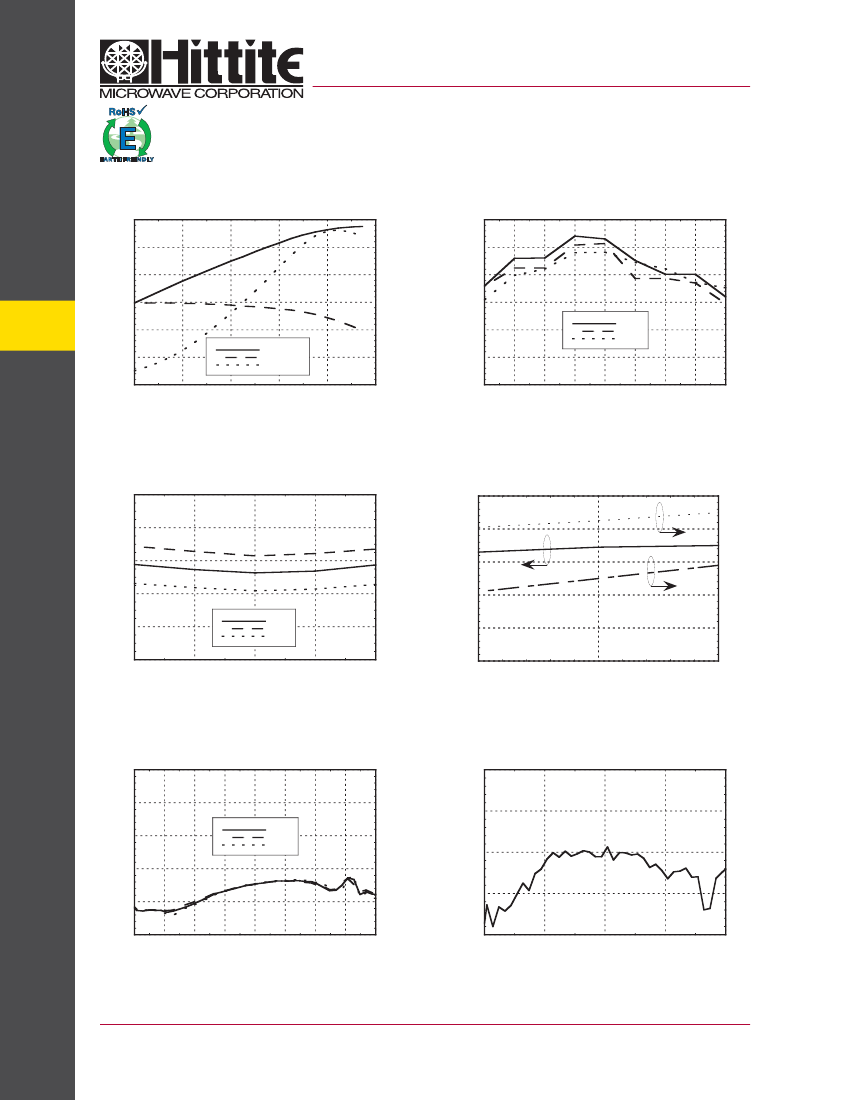

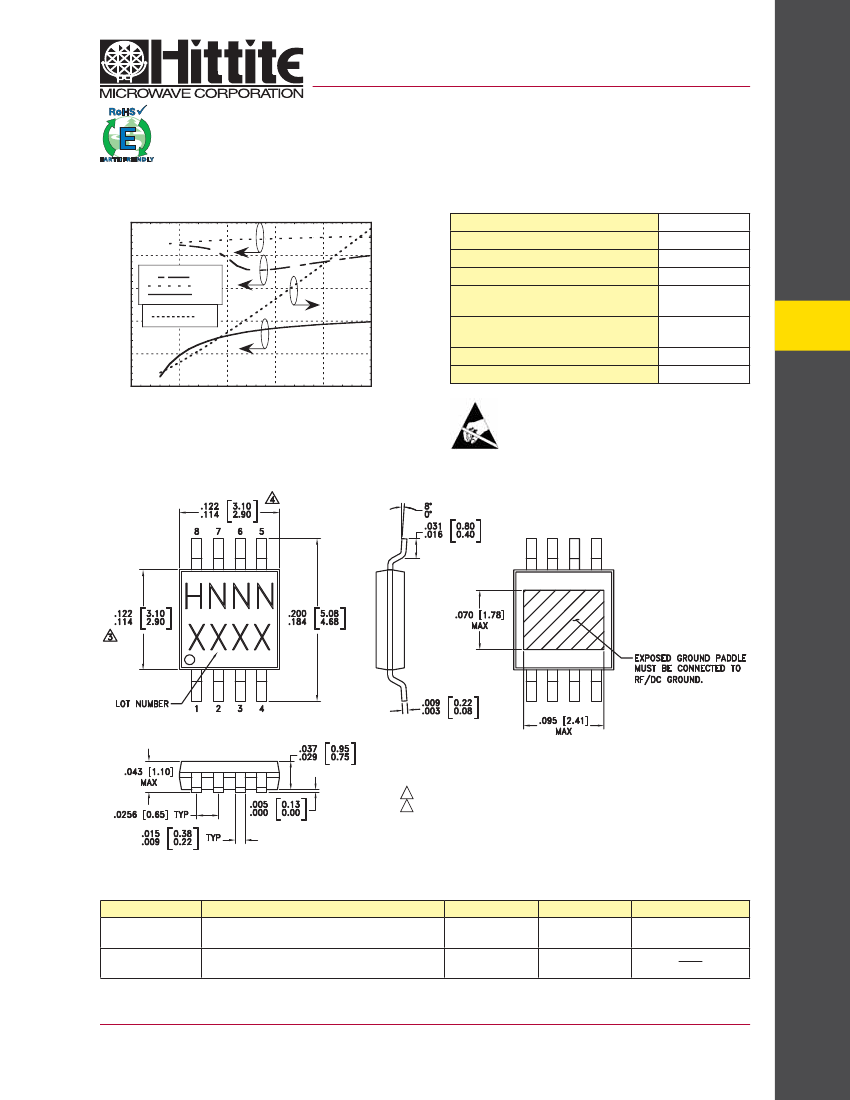

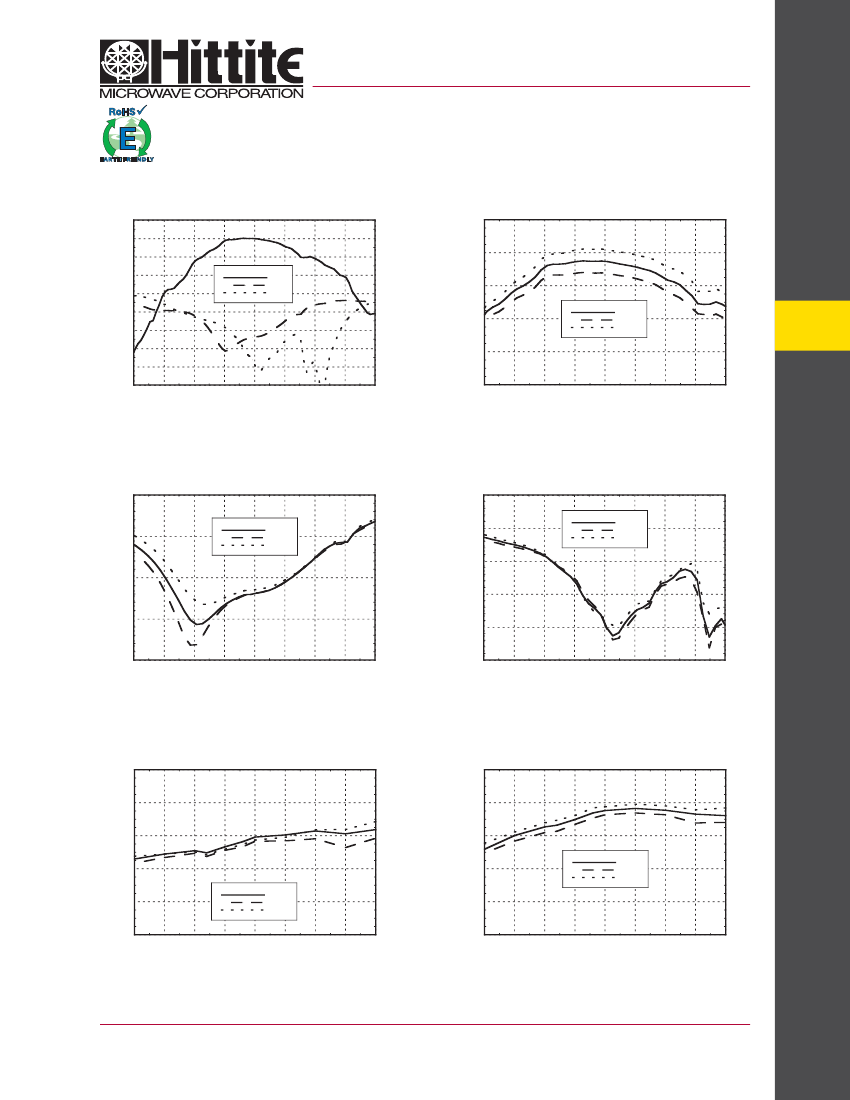

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
