EM6603DL24A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> EM6603DL24A

EM6603DL24A: DescriptionMicrocontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size676KB，39 Pages; ManufacturerEM Microelectronic-Marin SA; Websitehttps://www.emmicroelectronic.com

Download Datasheet Parametric Compare View All

EM6603DL24A Overview

Microcontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDIP24

EM6603DL24A Parametric

Parameter Name	Attribute value
Maker	EM Microelectronic-Marin SA
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
bit size	4
JESD-30 code	R-PDIP-T24
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	1.5/3 V
Certification status	Not Qualified
RAM (bytes)	48
rom(word)	2048
ROM programmability	MROM
speed	0.032 MHz
Maximum slew rate	0.0045 mA
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

EM MICROELECTRONIC

- MARIN SA

EM6603

Ultra Low Power Multi I/O Microcontroller

Features

•

Low Power - typical 1.8µA active mode

- typical 0.35µA standby mode

- typical 0.1µA sleep mode

@ 1.5V, 32kHz, 25 °C

•

Low Voltage - 1.2 to 3.6 V

•

buzzer - three tone

•

ROM

- 2k

16 (Mask Programmed)

•

RAM

- 96

4 (User Read/Write)

•

2 clocks per instruction cycle

•

RISC architecture

•

4 software configurable 4-bit ports

•

Up to 16 inputs

(4 ports)

•

Up to 12 outputs (3 ports)

•

Serial (Output) Write buffer - SWB

•

Voltage level detection

•

Analogue watchdog

•

Timer watchdog

•

8 bit timer / event counter

•

Internal interrupt sources (timer, event

counter, prescaler, SWB)

•

External interrupt sources (portA + portC)

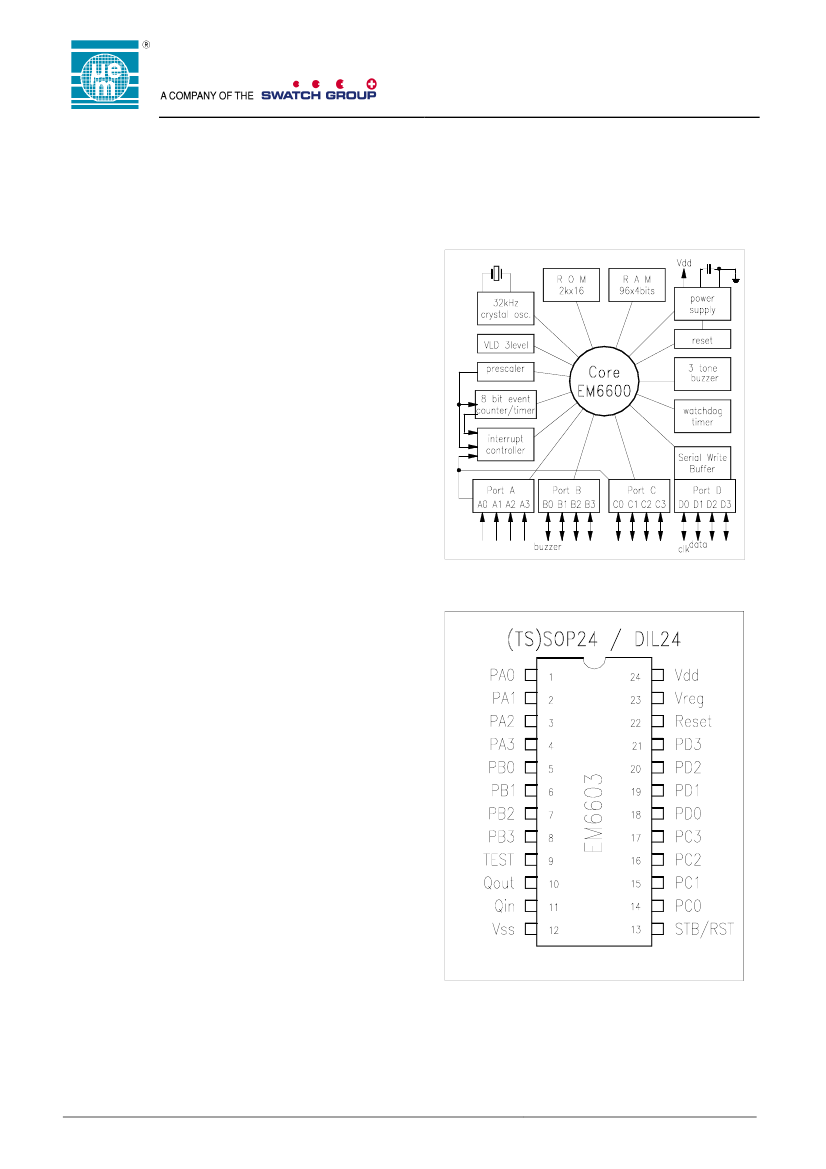

Figure 1.Architecture

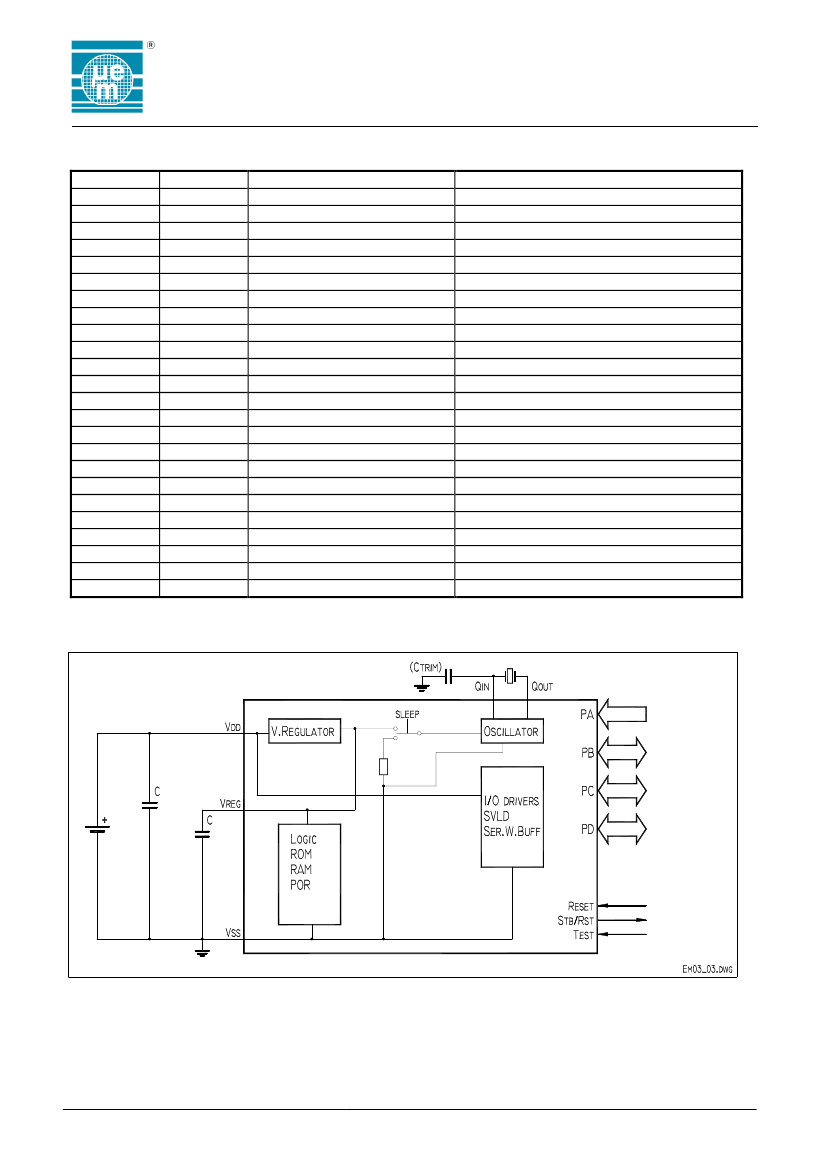

Figure 2.Pin Configuration

Description

The EM6603 is an advanced single chip low cost,

mask programmed - CMOS 4-bit microcontroller. It

contains ROM, RAM, watchdog timer, oscillation

detection circuit, combined timer / event counter,

prescaler, voltage level detector and a number of

clock functions. Its low voltage and low power

operation make it the most suitable controller for

battery, stand alone and mobile equipment. The

EM66XX series is manufactured using EM

Microelectronic’s Advanced Low Power CMOS

Process.

Typical

•

Applications

sensor interfaces

domestic appliances

security systems

bicycle computers

automotive controls

TV & audio remote controls

measurement equipment

R/F and IR. control

03/02 REV. G/439



2002, EM Microelectronic-Marin SA

www.emmicroelectronic.com

EM6603DL24A Related Products

	EM6603DL24A	EM6603TP24B	EM6603SO24B	EM6603SO24A
Description	Microcontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDIP24	Microcontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDSO24	Microcontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDSO24	Microcontroller, 4-Bit, MROM, 0.032MHz, CMOS, PDSO24
Maker	EM Microelectronic-Marin SA	EM Microelectronic-Marin SA	EM Microelectronic-Marin SA	EM Microelectronic-Marin SA
package instruction	DIP, DIP24,.3	TSSOP, TSSOP24,.25	SOP, SOP24,.4	SOP, SOP24,.4
Reach Compliance Code	unknown	unknown	unknown	unknown
bit size	4	4	4	4
JESD-30 code	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
Number of terminals	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	TSSOP	SOP	SOP
Encapsulate equivalent code	DIP24,.3	TSSOP24,.25	SOP24,.4	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
power supply	1.5/3 V	1.5/3 V	1.5/3 V	1.5/3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	48	48	48	48
rom(word)	2048	2048	2048	2048
ROM programmability	MROM	MROM	MROM	MROM
speed	0.032 MHz	0.032 MHz	0.032 MHz	0.032 MHz
Maximum slew rate	0.0045 mA	0.0045 mA	0.0045 mA	0.0045 mA
surface mount	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	0.635 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1
