SP7-2510-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> SP7-2510-2

SP7-2510-2: DescriptionOperational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size247KB，5 Pages; ManufacturerDatalinear

Download Datasheet Parametric Compare View All

SP7-2510-2 Overview

Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CDIP8,

SP7-2510-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Datalinear
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	11000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

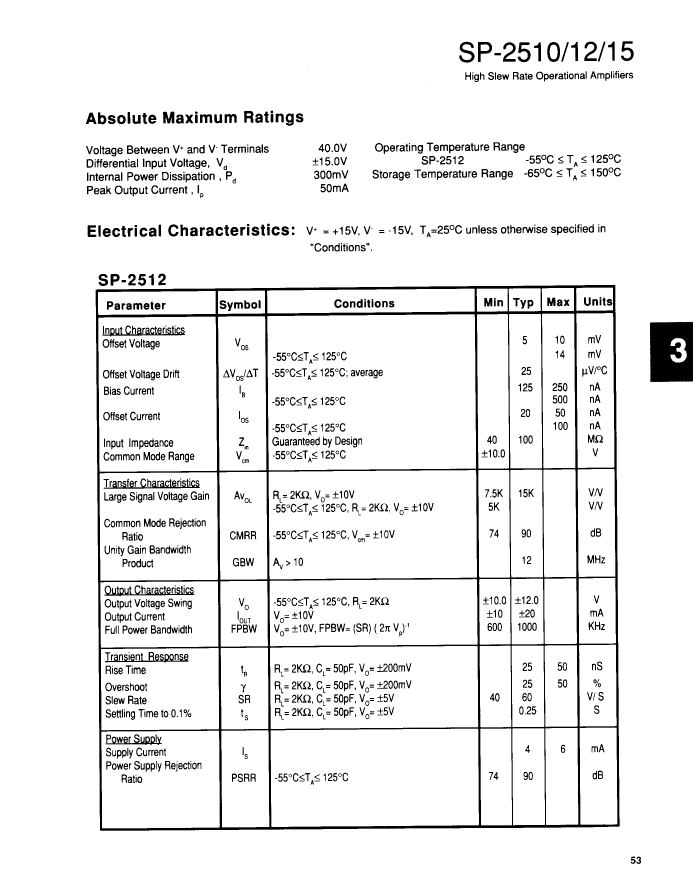

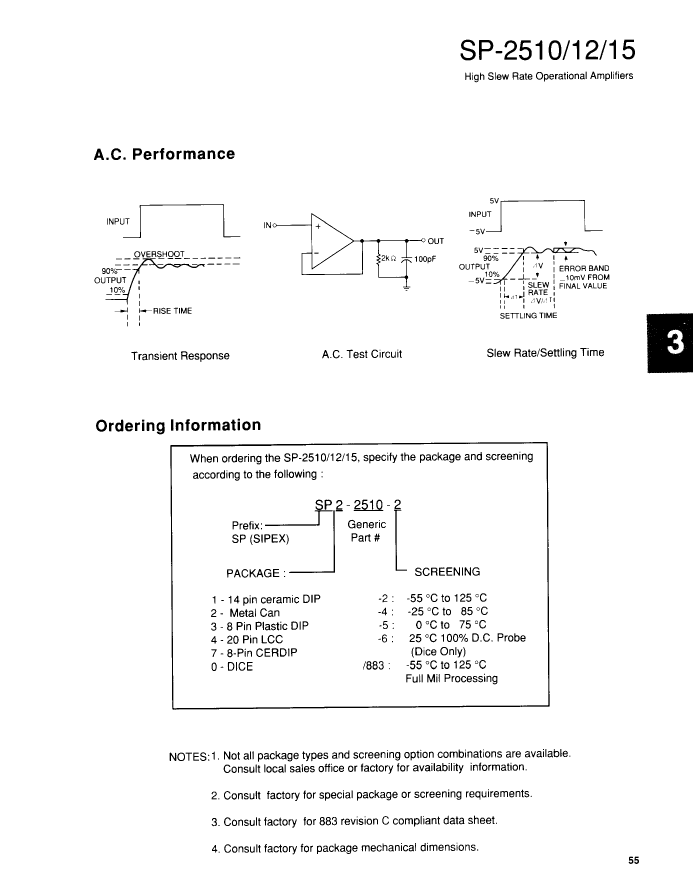

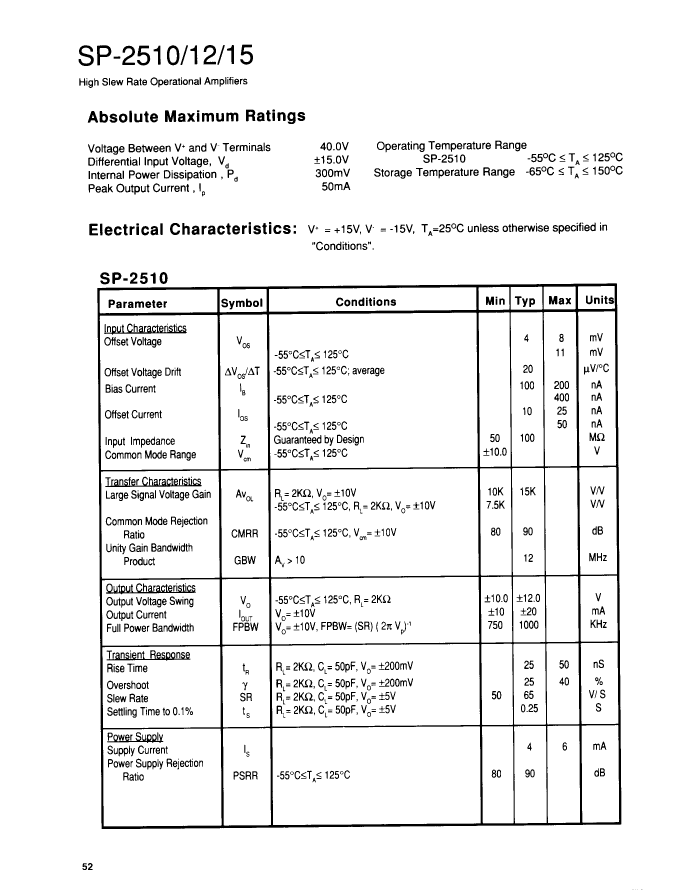

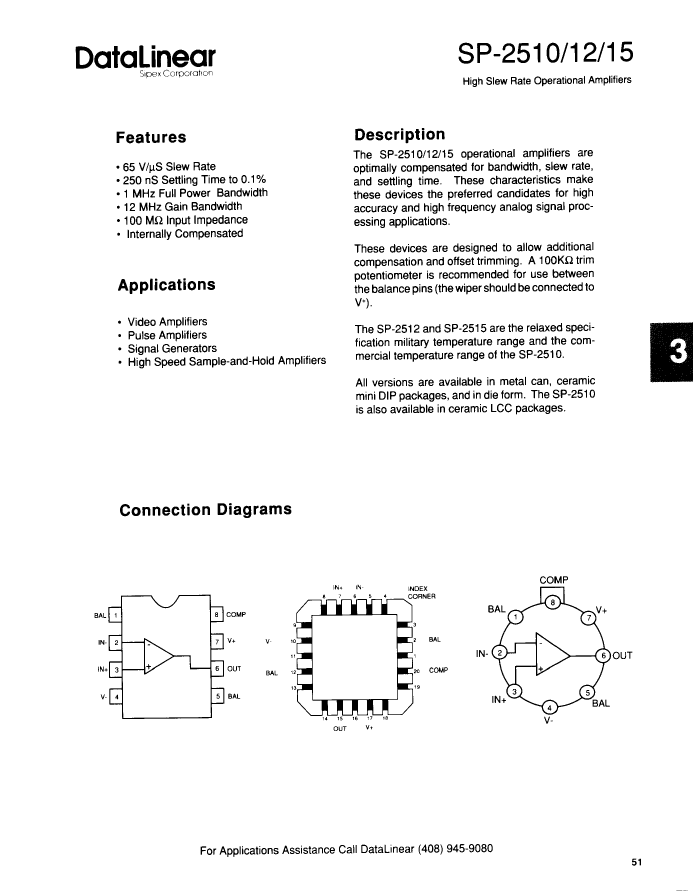

Preview

Download Datasheet

View All

SP7-2510-2 Related Products

	SP7-2510-2	SP2-2515-5	SP3-2515-5	SP4-2510-2	SP2-2512-2	SP7-2512-2
Description	Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 14000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 14000uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CQCC20,	Operational Amplifier, 1 Func, 14000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 14000uV Offset-Max, BIPolar, CDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Datalinear	Datalinear	Datalinear	Datalinear	Datalinear	Datalinear
package instruction	DIP, DIP8,.3	, CAN8,.23	DIP, DIP8,.3	QCCN, LCC20,.35SQ	, CAN8,.23	DIP, DIP8,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	11000 µV	14000 µV	14000 µV	11000 µV	14000 µV	14000 µV
JESD-30 code	R-XDIP-T8	O-MBCY-W8	R-PDIP-T8	S-XQCC-N20	O-MBCY-W8	R-XDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	20	8	8
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	METAL	PLASTIC/EPOXY	CERAMIC	METAL	CERAMIC
Encapsulate equivalent code	DIP8,.3	CAN8,.23	DIP8,.3	LCC20,.35SQ	CAN8,.23	DIP8,.3
Package shape	RECTANGULAR	ROUND	RECTANGULAR	SQUARE	ROUND	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE	CHIP CARRIER	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	NO LEAD	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL	QUAD	BOTTOM	DUAL
encapsulated code	DIP	-	DIP	QCCN	-	DIP
surface mount	NO	-	NO	YES	-	NO
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm	-	2.54 mm
