VFTCEE18P5SFREQ datasheet, PDF

VFTCEE18P5SFREQ: DescriptionSine Output Oscillator, 4.8MHz Min, 180MHz Max; CategoryPassive components oscillator; File Size82KB，2 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric View All

VFTCEE18P5SFREQ Overview

Sine Output Oscillator, 4.8MHz Min, 180MHz Max

Parameter Name	Attribute value
Maker	CTS [CTS Corporation]
Reach Compliance Code	unknown
Other features	SC -CUT CRYSTAL
Ageing	0.0002 PPM/DAY
Maximum control voltage	4 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
frequency stability	0.01%
Frequency Stability - Voltage	0.005 ppm
input power	1 W
Manufacturer's serial number	VFTCE
Installation features	THROUGH HOLE MOUNT
offset frequency	0.1 kHz
Maximum operating frequency	180 MHz
Minimum operating frequency	4.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.5 V
Oven power supply voltage	5V
phase noise	-150 dBc/Hz
physical size	35.4mm x 26.7mm x 12.65mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Preheating power	2.5 W
Maximum warm-up time	3 Minute

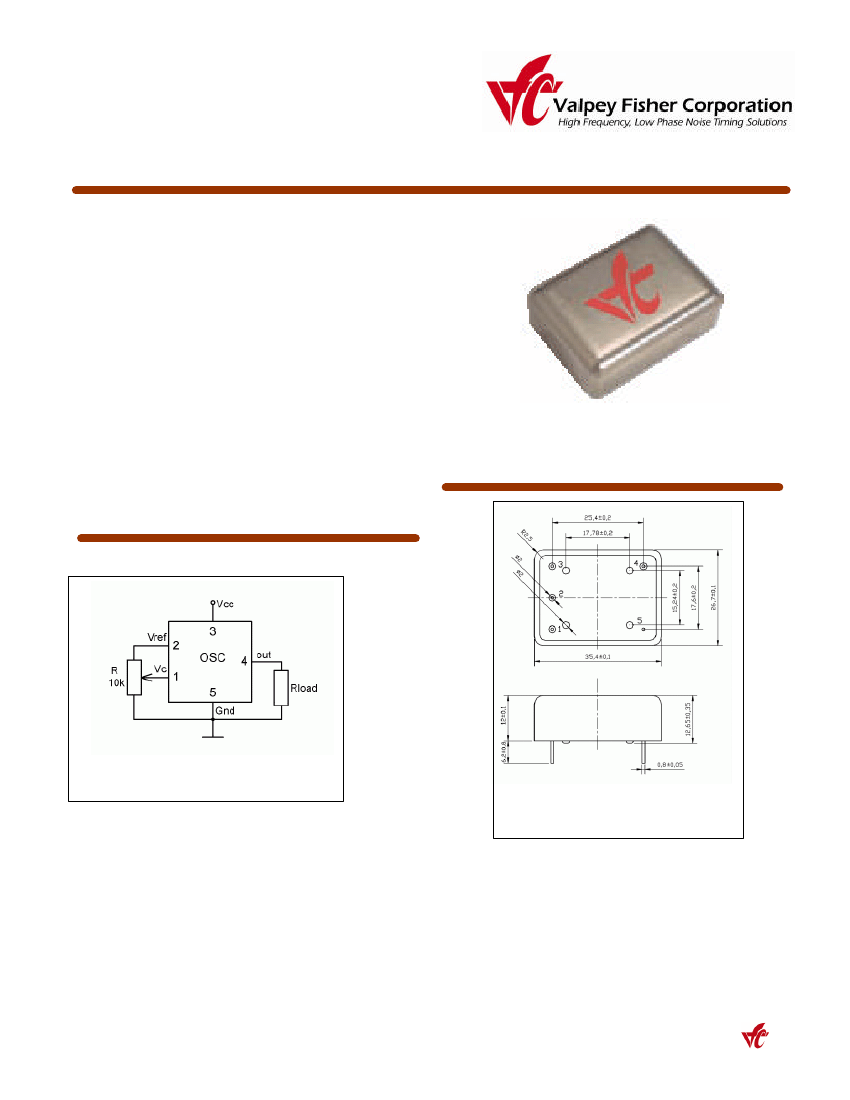

VFTCE Series OCXO

Product Data Sheet

Features

•

SC-cut crystal

-9

High Stability (up to ± 5x10 )

-10

-8

Low Aging (5x10 /day, 5x10 /year)

Low Phase Noise (-160 dBc/Hz, TYP, floor)

Sine Wave or HCMOS/TTL output

4.8 MHz to 180 MHz Frequencies Available

Applications

•

Telecommunication Systems

Data Communications

GPS

Instrumentation

75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 • www.valpeyfisher.com
