T-117S10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> T-117S10

T-117S10: Description3 Port Circulator, 17490MHz Min, 19990MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size29KB，1 Pages; ManufacturerMica Microwave

Download Datasheet Parametric Compare View All

T-117S10 Overview

3 Port Circulator, 17490MHz Min, 19990MHz Max

T-117S10 Parametric

Parameter Name	Attribute value
Maker	Mica Microwave
Reach Compliance Code	unknown
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	19990 MHz
Minimum operating frequency	17490 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.25

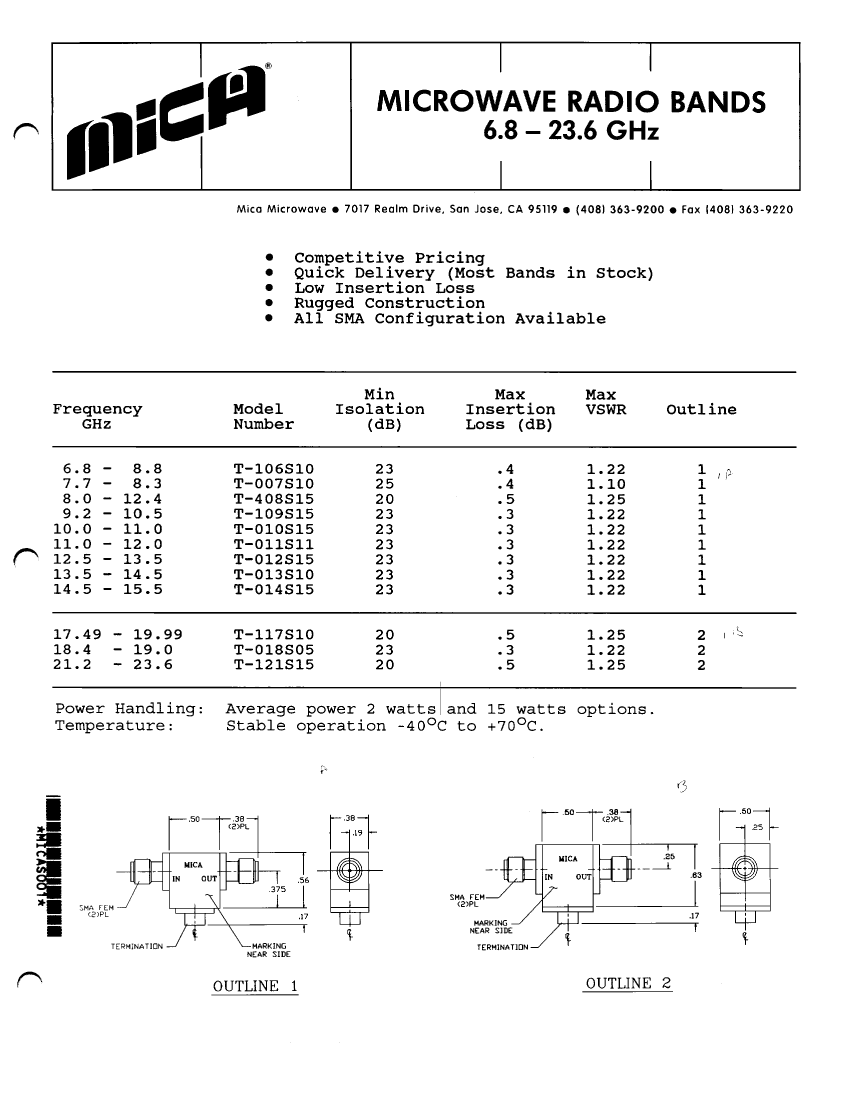

Preview

Download Datasheet

View All

T-117S10 Related Products

	T-117S10	T-121S15	T-013S10	T-018S05	T-408S15	T-012S15	T-014S15	T-007S10	T-010S15	T-011S11
Description	3 Port Circulator, 17490MHz Min, 19990MHz Max	3 Port Circulator, 21200MHz Min, 23600MHz Max	3 Port Circulator, 13500MHz Min, 14500MHz Max	3 Port Circulator, 18400MHz Min, 19000MHz Max	3 Port Circulator, 8000MHz Min, 12400MHz Max	3 Port Circulator, 12500MHz Min, 13500MHz Max	3 Port Circulator, 14500MHz Min, 15500MHz Max	3 Port Circulator, 7700MHz Min, 8300MHz Max	3 Port Circulator, 10000MHz Min, 11000MHz Max	3 Port Circulator, 11000MHz Min, 12000MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum insertion loss	0.5 dB	0.5 dB	0.3 dB	0.3 dB	0.5 dB	0.3 dB	0.3 dB	0.4 dB	0.3 dB	0.3 dB
Maximum operating frequency	19990 MHz	23600 MHz	14500 MHz	19000 MHz	12400 MHz	13500 MHz	15500 MHz	8300 MHz	11000 MHz	12000 MHz
Minimum operating frequency	17490 MHz	21200 MHz	13500 MHz	18400 MHz	8000 MHz	12500 MHz	14500 MHz	7700 MHz	10000 MHz	11000 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.25	1.25	1.22	1.22	1.25	1.22	1.22	1.1	1.22	1.22
Maker	Mica Microwave	Mica Microwave	-	-	-	Mica Microwave	Mica Microwave	Mica Microwave	Mica Microwave	Mica Microwave
