CA91C078-25MG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CA91C078-25MG

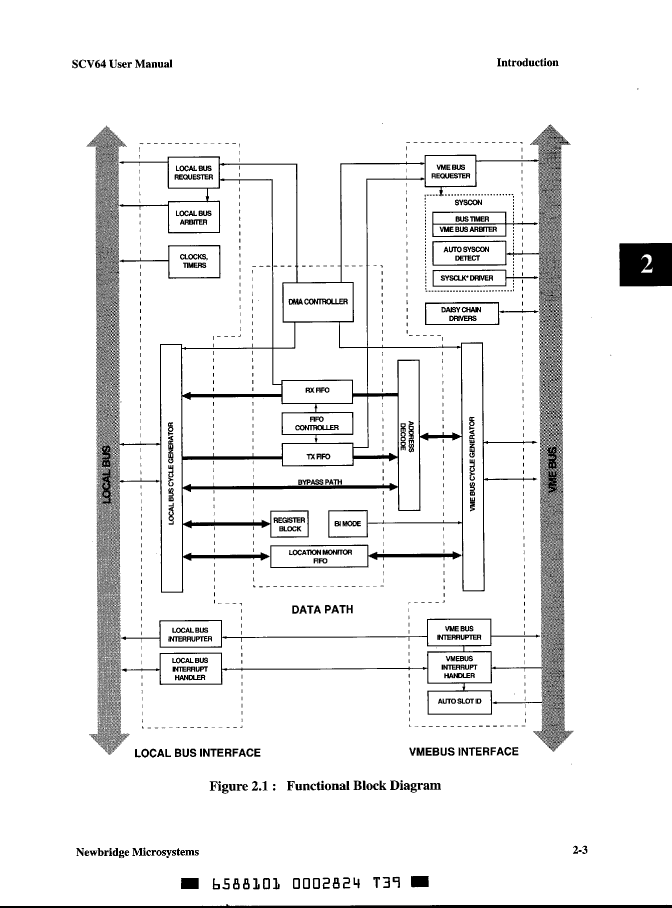

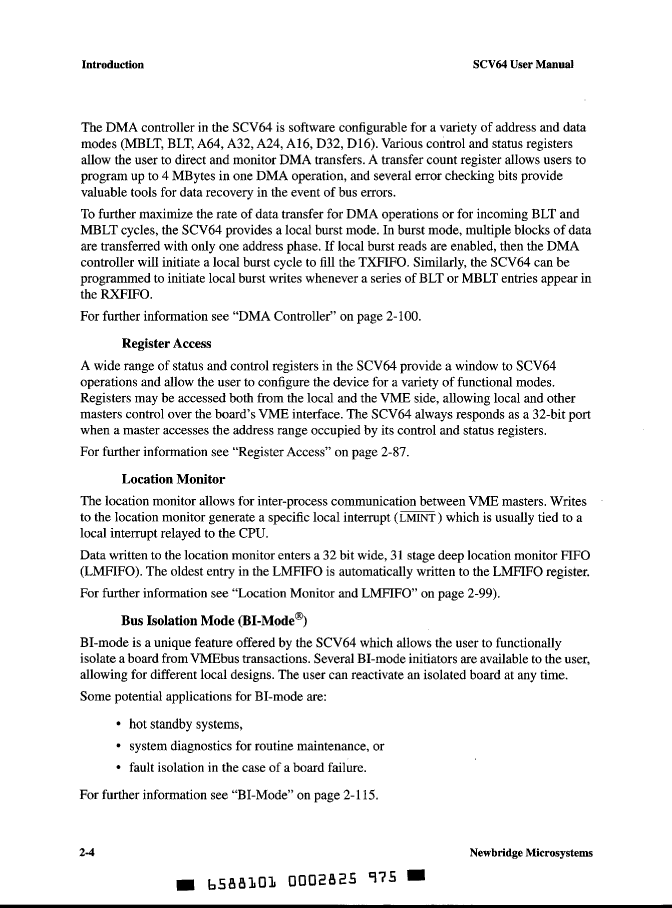

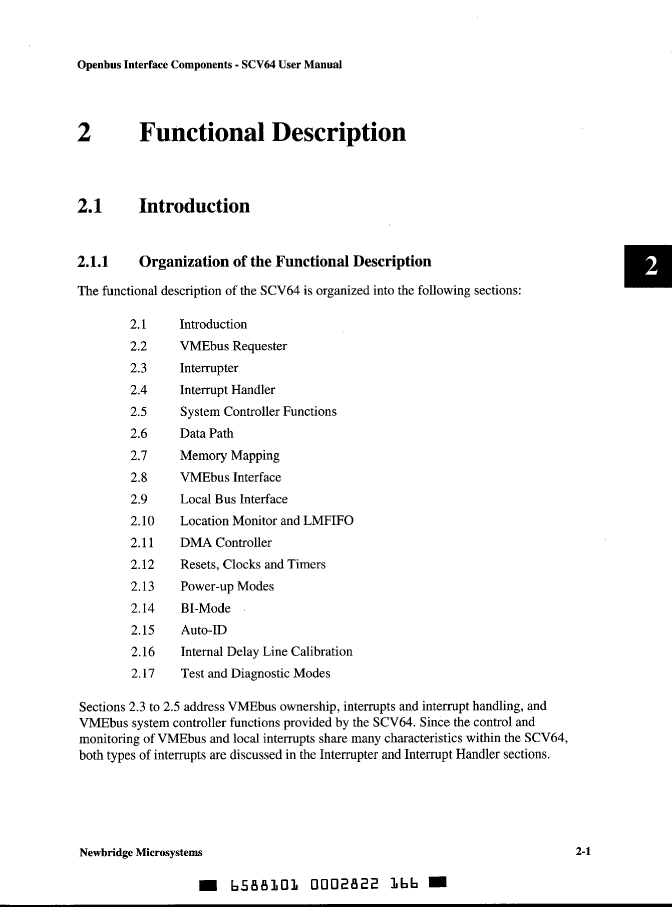

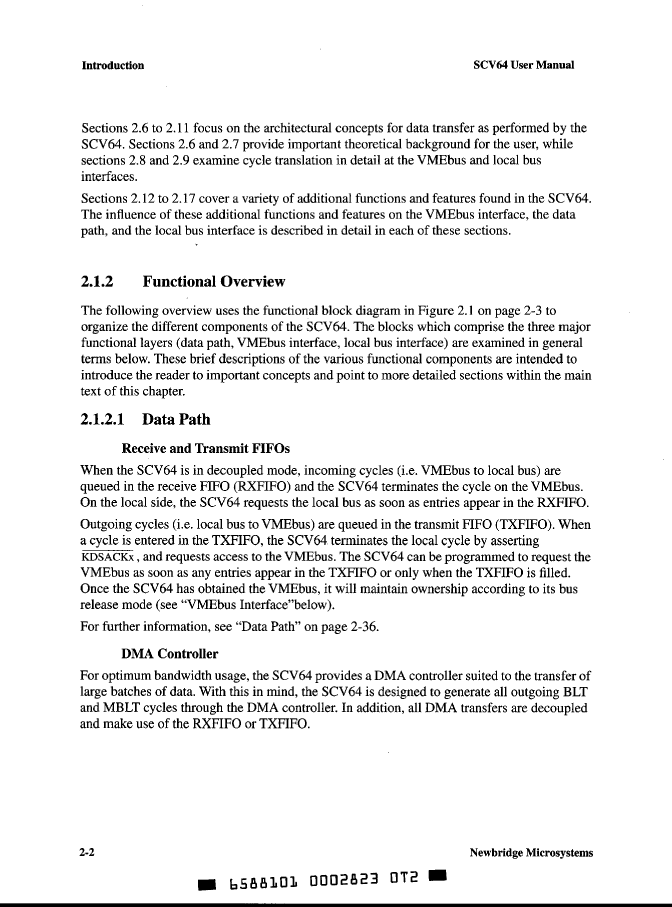

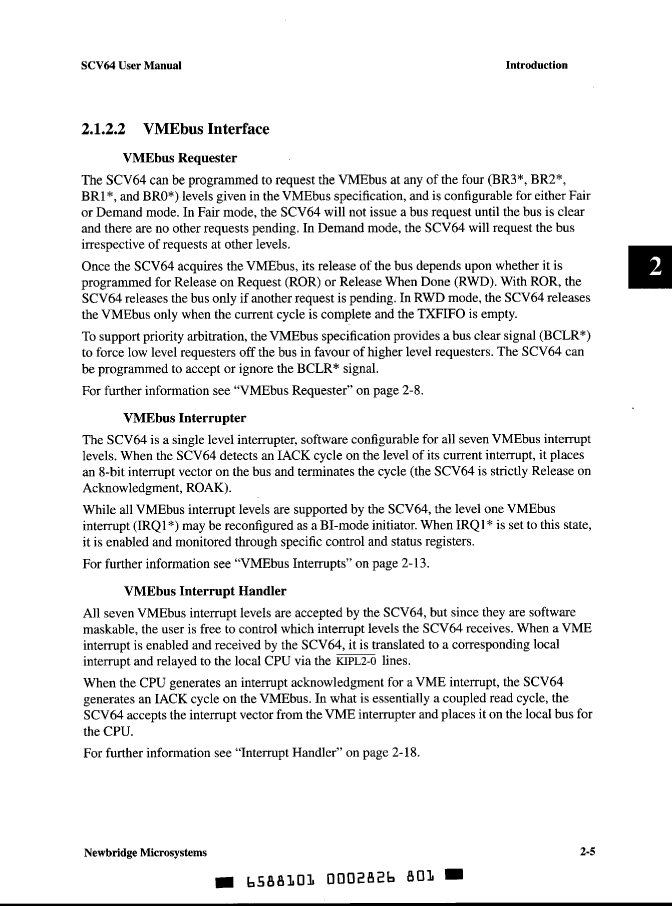

Preview

CA91C078-25MG: DescriptionBus Controller, CPGA299,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size7MB，127 Pages; ManufacturerTundra Semiconductor Corp

Download Datasheet Parametric Compare View All

CA91C078-25MG Overview

Bus Controller, CPGA299,

CA91C078-25MG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Tundra Semiconductor Corp
Reach Compliance Code	unknown
JESD-30 code	S-XPGA-P299
JESD-609 code	e0
Number of terminals	299
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA299,20X20
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CA91C078-25MG Related Products

	CA91C078-25MG	CA91C078-33CG	CA91C078-40CQ	CA91C078-40CG	CA91C078-25IQ	CA91C078-33MG
Description	Bus Controller, CPGA299,	VME Bus Controller, CMOS, CPGA299, CAVITY-DOWN, CERAMIC, PGA-299	VME Bus Controller, CMOS, PQFP304, PLASTIC, QFP-304	VME Bus Controller, CMOS, CPGA299, CAVITY-DOWN, CERAMIC, PGA-299	VME Bus Controller, CMOS, PQFP304, PLASTIC, QFP-304	Bus Controller, CPGA299,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Tundra Semiconductor Corp	Tundra Semiconductor Corp	Tundra Semiconductor Corp	Tundra Semiconductor Corp	Tundra Semiconductor Corp	Tundra Semiconductor Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-XPGA-P299	S-CPGA-P299	S-PQFP-G304	S-CPGA-P299	S-PQFP-G304	S-XPGA-P299
Number of terminals	299	299	304	299	304	299
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	85 °C	125 °C
Package body material	CERAMIC	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC
encapsulated code	PGA	PGA	FQFP	PGA	FQFP	PGA
Encapsulate equivalent code	PGA299,20X20	PGA299,20X20	QFP304,1.7SQ,20	PGA299,20X20	QFP304,1.7SQ,20	PGA299,20X20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	FLATPACK, FINE PITCH	GRID ARRAY	FLATPACK, FINE PITCH	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	NO
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	MILITARY
Terminal form	PIN/PEG	PIN/PEG	GULL WING	PIN/PEG	GULL WING	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	0.5 mm	2.54 mm	0.5 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR
JESD-609 code	e0	e0	e0	e0	e0	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
package instruction	-	CAVITY-DOWN, CERAMIC, PGA-299	PLASTIC, QFP-304	CAVITY-DOWN, CERAMIC, PGA-299	PLASTIC, QFP-304	-
Address bus width	-	32	32	32	32	-
Bus compatibility	-	68030; 68040	68030; 68040	68030; 68040	68030; 68040	-
maximum clock frequency	-	33 MHz	40 MHz	40 MHz	25 MHz	-
External data bus width	-	32	32	32	32	-
length	-	52.324 mm	40 mm	52.324 mm	40 mm	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum seat height	-	5.0546 mm	4.5 mm	5.0546 mm	4.5 mm	-
Maximum supply voltage	-	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	-	4.75 V	4.75 V	4.75 V	4.75 V	-
technology	-	CMOS	CMOS	CMOS	CMOS	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	-	52.324 mm	40 mm	52.324 mm	40 mm	-
uPs/uCs/peripheral integrated circuit type	-	BUS CONTROLLER, VME	BUS CONTROLLER, VME	BUS CONTROLLER, VME	BUS CONTROLLER, VME	-
Base Number Matches	-	1	1	1	1	-
