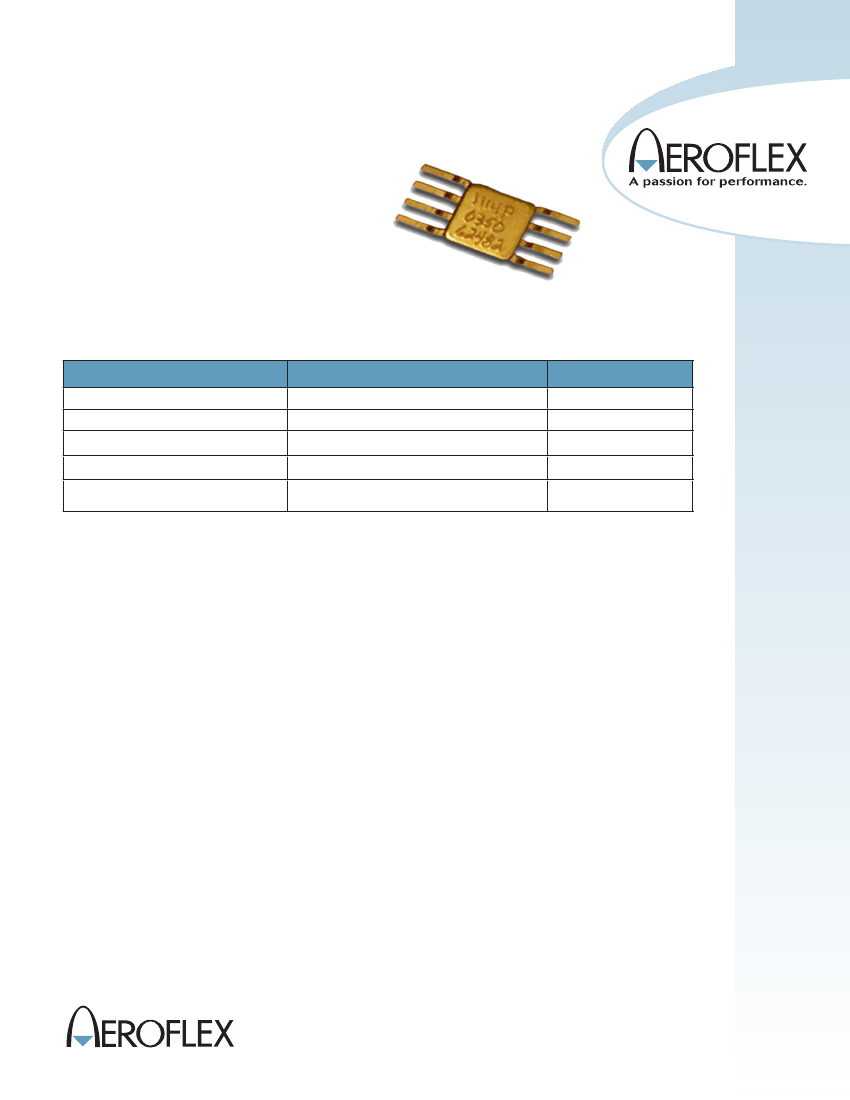

ACTM-1129
Surface Mount Tunnel Detector
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Sensitivity (min)
Flatness vs. Frequency (max)
Typical VSWR
Nominal Video Capacitance
Specification
0.1 – 4
900
0.4
Units
GHz
mV/mW
±dB
Ratio
pF
2.3:1
270
Notes:
Maximum input power: +14 dBm (3 dB guardband
for +17 dBm possible burnout)
Sensitivity is measured into an open circuit load
(>10k ohm).
VSWR is measured at or below -20 dBm input power
level.
Video capacitance is used for RF bypass. This value
can be changed if required for video response time.
Contact the factory for more information.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883,
Method 2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
SIGNAL & CONTROL SOLUTIONS
Revision Date: 11/4/2013
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
ACTM-1129
Surface Mount Tunnel Detector

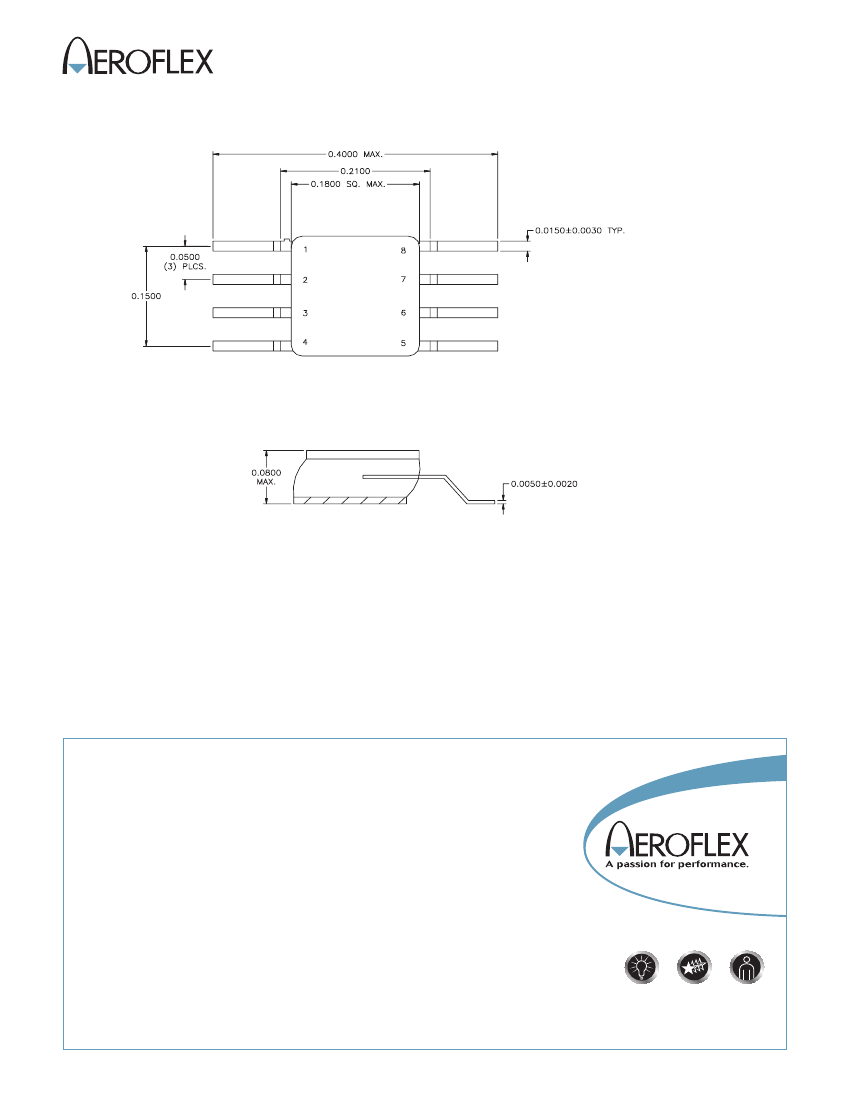

Outline Drawing:
STANDARD CASE STYLE M47
(Optional Case Styles – M10)
Part Number Ordering Information:
•
•
•
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACTM-1129N)
Add desired case style suffix: “M47” (Ex: ACTM-1129NM47)
Add “-RC” suffix: RoHS-compliant (Ex: ACTM-1129NM47-RC)
Aeroflex Signal & Control Solutions
Aeroflex Microelectronic Solutions
40 Industrial Way East
Eatontown , NJ 07724 [USA]
Fax: (732) 460-0214
Sales
Phone: (732) 460-0212
ASCS-sales@aeroflex.com
ISO 9001:2008 certified
www.aeroflex.com/Microwave www.aeroflex.com/ASCS
Aeroflex Signal & Control Solutions reserves the right to make changes to any products
and services herein at any time without notice. Consult Aeroflex or an authorized sales
representative to verify that the information in this data sheet is current before using
this product. Aeroflex does not assume any responsibility or liability arising out of the
application or use of any product or service described herein, except as expressly
agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a product or
service from Aeroflex convey a license under any patent rights, copyrights, trademark
rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2013 Aeroflex Signal & Control Solutions. All rights reserved.
Revision Date: 11/4/2013
