Datasheet> All Categories > logic> logic> GD74HC58D

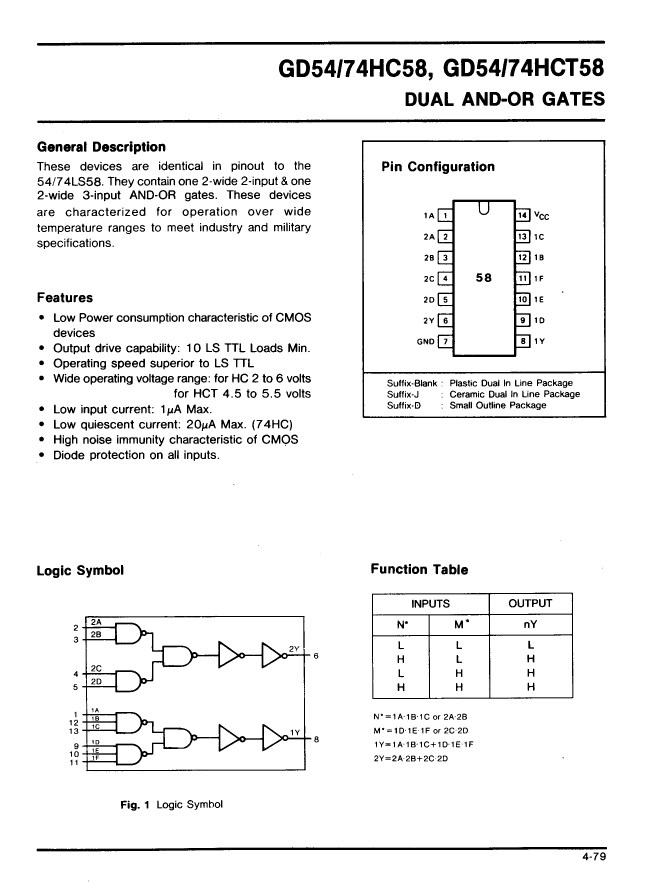

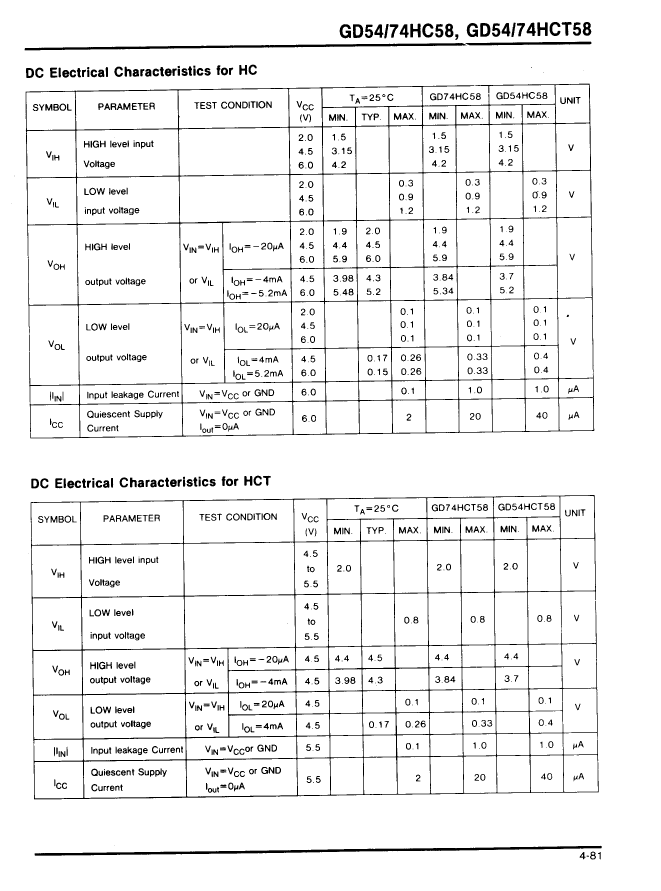

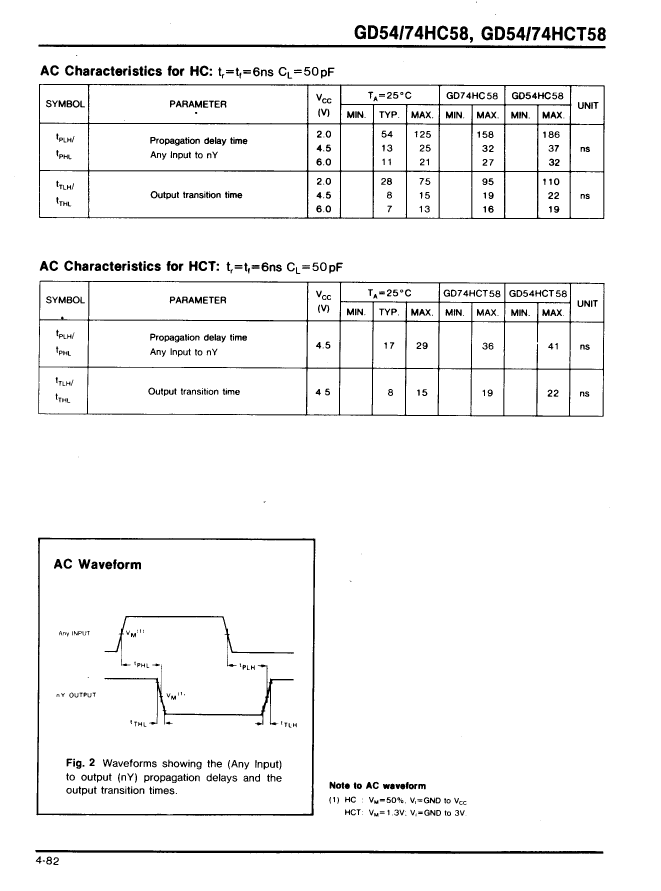

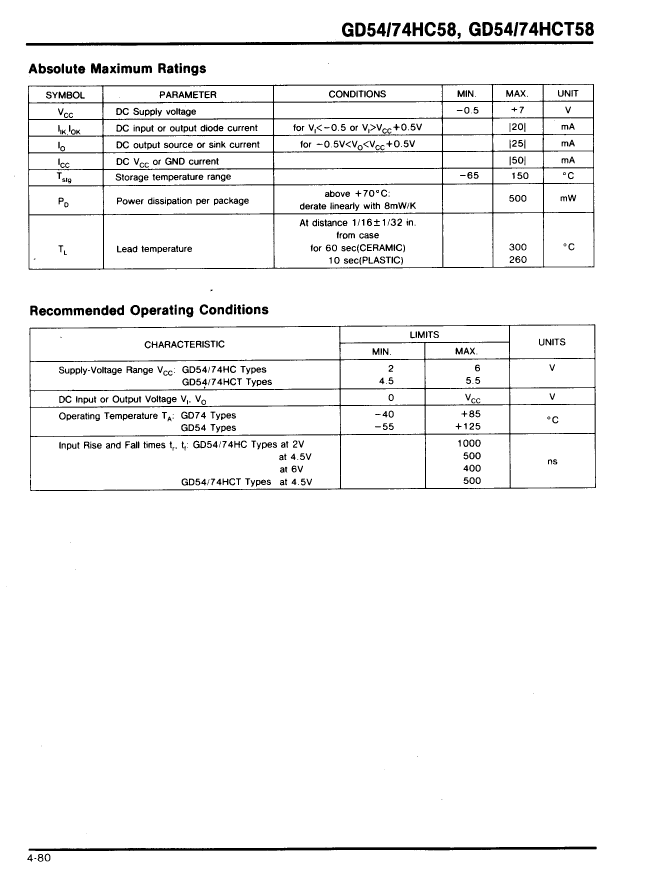

Preview

GD74HC58D: DescriptionGate, CMOS, PDSO14,; Categorylogic logic; File Size169KB，4 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GD74HC58D Overview

Gate, CMOS, PDSO14,

GD74HC58D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Load capacitance (CL)	50 pF
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	32 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

GD74HC58D Related Products

	GD74HC58D	GD54HCT58J	GD74HCT58	GD74HCT58J	GD74HCT58D	GD74HC58	GD74HC58J	GD54HC58J
Description	Gate, CMOS, PDSO14,	Gate, CMOS, CDIP14,	Gate, CMOS, PDIP14,	Gate, CMOS, CDIP14,	Gate, CMOS, PDSO14,	Gate, CMOS, PDIP14,	Gate, CMOS, CDIP14,	Gate, CMOS, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-PDSO-G14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDSO-G14	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	SOP	DIP	DIP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
power supply	2/6 V	5 V	5 V	5 V	5 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	NO	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	LG Semicon Co., Ltd.	-	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
Prop。Delay @ Nom-Sup	32 ns	41 ns	36 ns	36 ns	36 ns	32 ns	32 ns	-
