Power Inductor
CDRH10D48/AA
■
Features
◎
Magnetically shielded construction.
◎
Storage temperature range: -40℃~+85℃.
◎
Operating temperature range: -40℃~+180℃
(including coil’s self temperature rise).
◎
RoHS Compliance and Halogen Free.
■
Applications
High temperature product,Used in automotive.
■

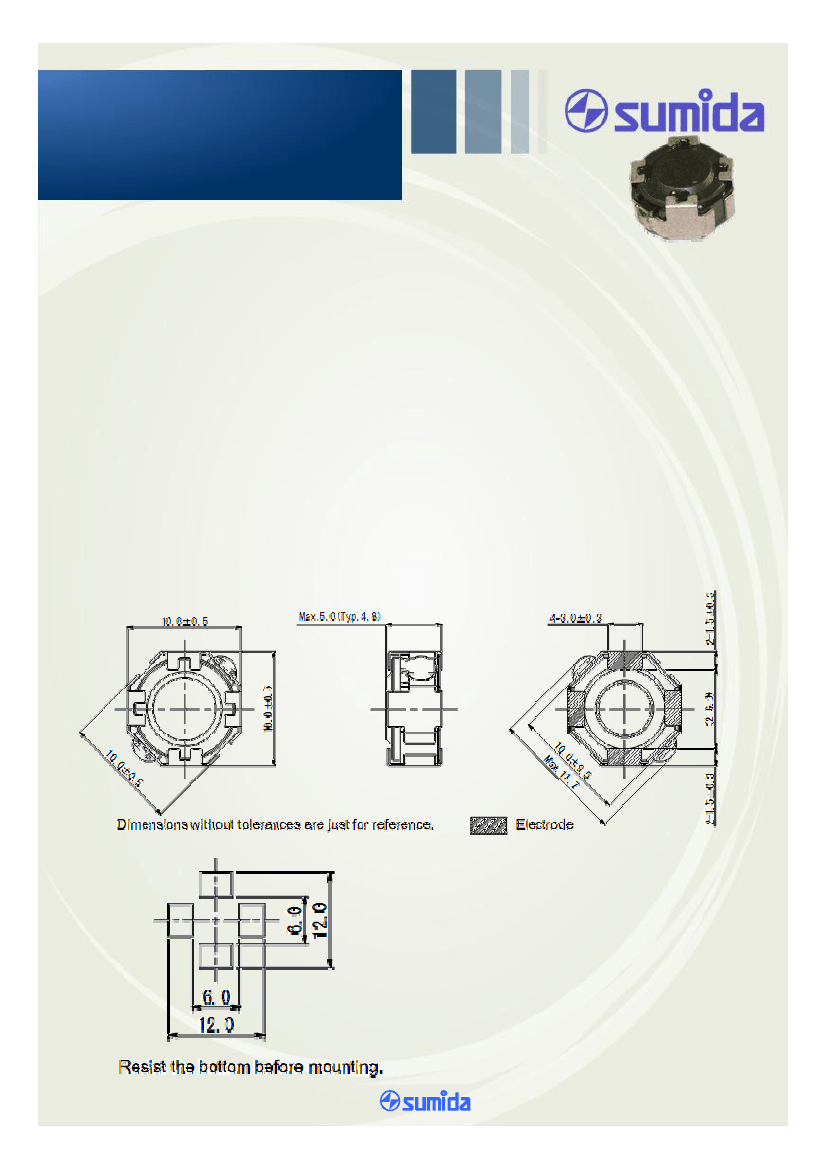

Dimensions/Recommended Land Patterns (mm)
◆
Dimensions
◆
Land pattern
1
Power Inductor
CDRH10D48/AA
■
Electrical Characteristics specification.
※
Part Name
Stamp
Inductance
( H) 1
10 30%
15 30%
22 30%
33 30%
47 30%
68 30%
100 30%
150 30%
220 30%
330 30%
470 30%
680 30%
1000 30%
D.C.R.(m )
Max.(Typ.)
(at 20 )
37(29)
49(39)
72(57)
122(97)
160(128)
224(179)
390(312)
580(464)
847(677)
1370(1090)
2220(1770)
2720(2170)
4800(3840)
Saturation Current
(A) 2
Temperature
Rise Current
(A) 3
2.87
2.43
1.96
1.54
1.25
0.99
0.75
0.62
0.51
0.40
0.30
0.28
0.20
1. Measuring condition: at 100kHz,1.0V.
2. Saturation current: The DC current at which the inductance decreases to 65% of its nominal value.
For More Information
Hong Kong
Tel.+852-2880-6688
FAX.+852-2565-9600
Shanghai
Tel.+86-021-5836-3299
FAX.+86-021-5836-3266
Shenzhen
Tel.+86-755-8291-0228
FAX.+86-755-8291-0338
Taipei
Tel.+886-2-8751-2737
FAX.+886-2-8751-2738
Tokyo
Tel.+81-3-5202-7112
FAX.+81-3-5202-7105
Seoul
Tel.+82-2-6237-0777
FAX.+82-2-6237-0778
Singapore
Tel.+65-6296-3388
FAX.+65-6296-3390
San Jose
Tel.+1-408-321-9660
FAX.+1-408-321-9308
Chicago
Tel.+1-847-545-6700
FAX. +1-847-545-6720
Obernzell
Tel.+49-8591-937-0
FAX. +49-8591-937-103
Neumarkt
Tel.+49-9181-4509-110
FAX. +49-9181-4509-310
℃ = ℃ =△
3.Temperature rise current: The DC current at which the temperature rise is
±
CDRH10D48/AANP-102N
