REV
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
A
A
AJF KLJ
NO 7-28-10
RoHS COMPLIANT 515-1104F
.047 #
.003
[1,19 #
0,07 ]
.015
[0,38]
Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent markings.
.060
[1,52]
.310 #
.005
[7,87 #
0,12 ]
.235
[
+.000
-.005
+0,00
5,97
-0,12
]
LED
.350
[8,89]
+.000
.145
-.004
+0,0
3,68
-0,1
LIGHT PIPE
.015 -.020
[0,39 -0,50 ]
RECOMMENDED GAP
LIGHT PIPE
LED
[
]
.264 #
.002
[6,71 #
0,05 ]
THRU
.100
[2,54]
REF.
.140
[3,56]
REF.
PCB
REVERSE MOUNT
LED
PCB
A
SUGGESTED PANEL CUT-OUT
.801
[20,35]
SECTION
A-A
PANEL
LED
.881
[22,38]
.095 #
.002
[2,41 #
0,05 ]
TYP.
.300
[7,62 ]
.147
[3,73]
LED
.294
[7,47]
.250 #
.005
[6,35 #
0,12 ]
MINOR DIA.
.015
[0,38]
.040
[1,02]
KEY DETAIL
SEE NOTE 3
.175 #
.002
[4,45 #
0,05 ]
.065 #
.002
[1,65 #
0,05 ]
TYP.
RECOMMENDED SOLDER PAD LAYOUT
SINGLE COLOR
DIFFUSED FRONT SURFACE
CHARMILLE #24 FINISH
.075
[1,91]
.238
+.004
-.000
+0,1
6,05
-0,0
.490
[12,45]
.266 #
.005
[6,76 #
0,12 ]
MAJOR DIA.
(INCLUDING BOTTOM RIBS)
.102 #
.002
[2,59 #
0,05 ]
.002
.035 #
[0,89 #
0,05 ]
TYP.
.200 #
.002
[5,08 #
0,05 ]
.078 #
.002
[1,98 #
0,05 ]
CUT OUT
NON-PLATED
THRU-HOLE
NOTES:
[
]
.002
.175 #
LED
[4,45 #
0,05 ]
1. DIALIGHT PART NUMBER: 515-1104F.
2. COMPONENT DESIGNED TO BE SNAPPED INTO PANEL FROM FRONT.
3. KEY DETAIL FOR ALIGNMENT.
4. MATERIAL TO BE CLEAR, TRANSMISSIVE POLYCARBONATE (UV-94-V0 FLAMMABILITY).
5. UNLESS OTHERWISE SPECIFIED, ALL SURFACES HAVE A FINISH OF SPI A3 TO B1.
6. STORAGE AND OPERATING TEMPERATURE: -30 TO +100
C.
$
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE: 6.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
.065 #
.002
[1,65 #
0,05 ]
TYP.
RECOMMENDED SOLDER PAD LAYOUT
BI-COLOR
.063 #
.002
[1,6 #
0,05 ]
TYP.
.059 #
.002
[1,5 #
0,05 ]
TYP.
DRAWING NUMBER
REV
C-17858
TITLE
A
RECOMMENDED SOLDER PAD LAYOUT
REVERSE MOUNT
7. RECOMMENDED SURFACE MOUNT LEDS DIALIGHT PART NUMBERS:
597-3XX1-20XF (SINGLE COLOR)
597-77XX-20XF (BI-COLOR)
597-6XXX-607F (SINGLE COLOR REVERSE MOUNT)
FRACTIONS: #
1/64
DECIMALS (.XX): #
.01
DECIMALS (.XXX): #
.005
DECIMALS (.XXXX): #
.0005
ANGLES: # $
1

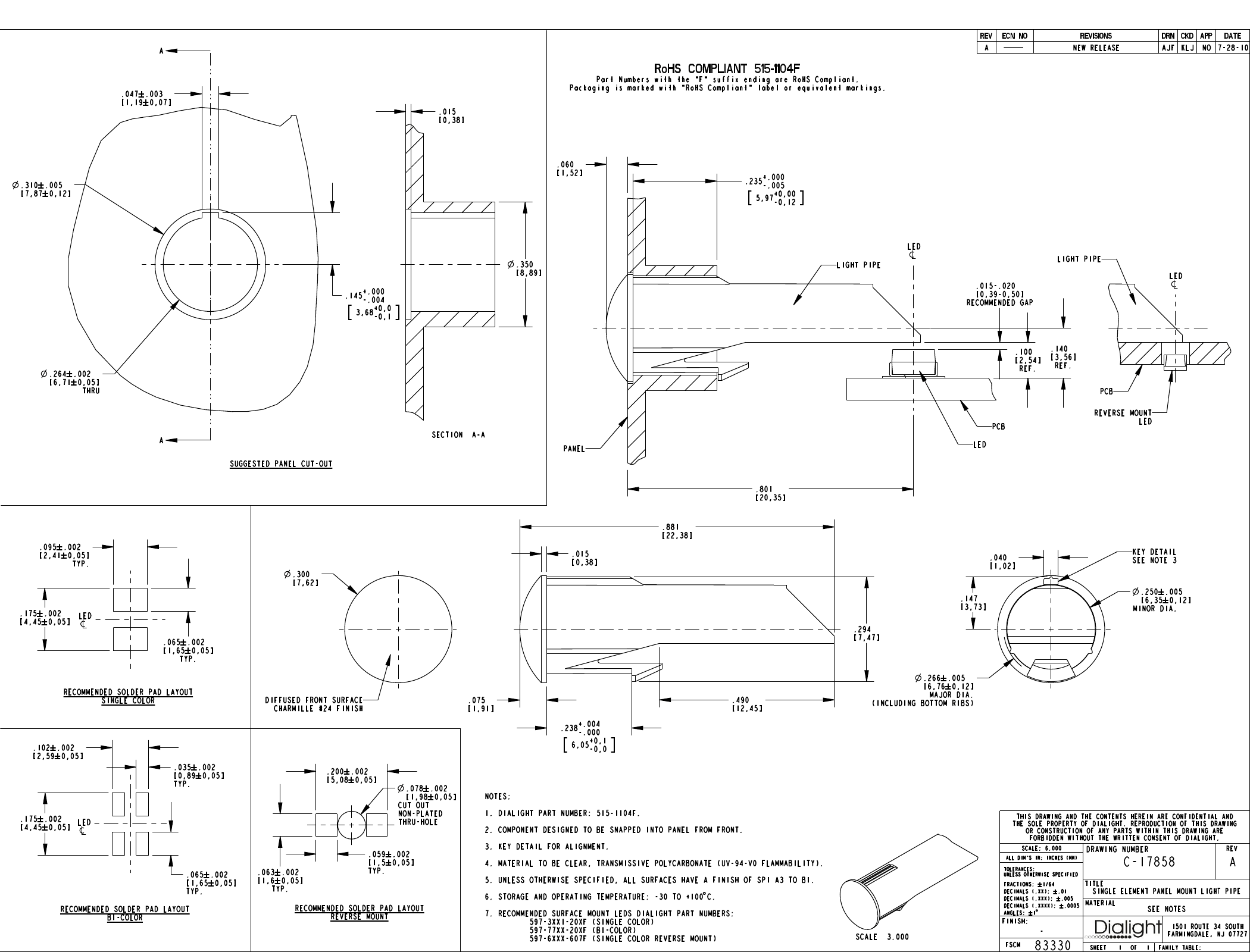

SINGLE ELEMENT PANEL MOUNT LIGHT PIPE
MATERIAL
SEE NOTES
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FINISH:
SCALE
3.000
FSCM
-
83330
SHEET
1
OF
1
