Film Capacitors – AC Capacitors
Motor run capacitors
B32330/B32332
B32330/B32332 – Super MotorCap™, 450 V

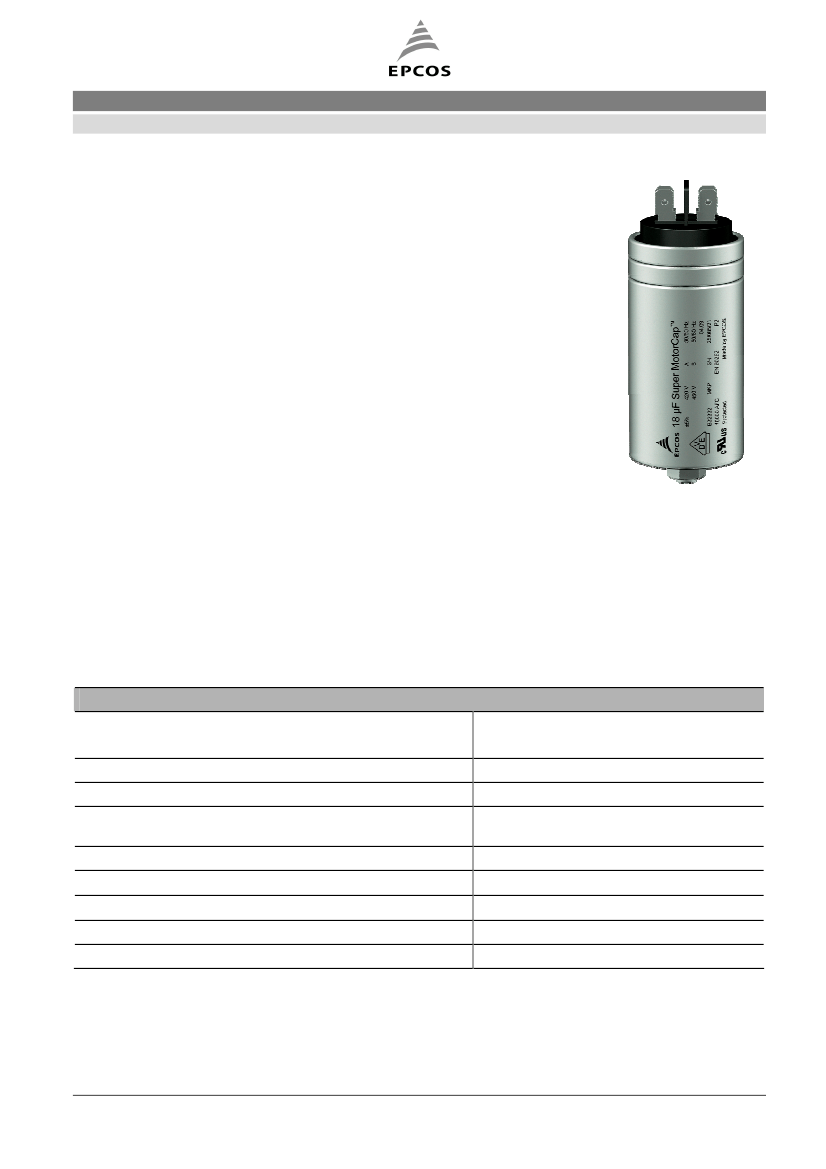

Construction
Metallized polypropylene film
Aluminum can with plastic top
Soft polyurethane resin
Applications
For general sine wave applications,
mainly as motor run capacitor
Features
Self-healing properties
Low dissipation factor
Highest safety level P2 to IEC 60252-1 2001-02
Overpressure disconnection device
High insulation resistance
EN 60335-1 compliance on request
Terminals
B32330 – Single Fast-on: 6.3 x .8 mm / Single Fast-on 4.8 x 0.5
B32332 – Double Fast-on: 6.3 x 0.8 mm
Mounting parts (optional
)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Technical data and specifications
Reference standards
Life expectance to IEC 60252 2001
Safety class according to IEC 60252-1 2001-02
UL 810 file E 106388
Rated capacitance C
R
Tolerance
Permitted capacitance
∆C/C
Rated voltage V
R
Rated frequency f
R
IEC 60252-1 2001-02, EN 60252 2001
UL 810
450 V: 30,000 h (class A)
P2
Approved component
10000 AFC protected up to 450 V
See table ordering codes, page 6
±5%
≤3%
450 V AC
50/60 Hz
FILM AC RD
.
Page 2 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors
B32330/B32332
B32330/B32332 – Super MotorCap™, 450 V
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal V
TT
AC test voltage terminals to can V
TC
Insulation resistance R
ins
or time constant
τ
at 20 °
C,
Rel. humidity max. value 85%, annual means
≤
65%
Dissipation factor tan
δ
at 20 °
C
Maximum rate of voltage rise dv/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2/V0 compatible
Glow wire test to IEC 60335-1 / IEC 60695-2-1/1
Test temperature 550 ° / 750 °
C
C
Part is compatible to EN 60335-1
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
Self-extinguish within 2 seconds of withdrawing
glow wire
>250 V
At 125 °C
UL 94 V2 minimum
25/085/21 to IEC 60068-1
–25 °
C
+85 °
C
21 days
2 V
R
, 2 s (routine test)
2 V
R
, 60 s (type test)
2 kV AC, 2 s (routine test)
2 kV AC, 60 s (type test)
3000 s
≤1.0
10 (120 Hz)
10 V/µs
-3
1.1 V
R
1.3 I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
FILM AC RD
.
Page 3 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors
B32330/B32332
B32330/B32332 – Super MotorCap™, 450 V
Approvals
VDE EN 60252-1
450 V / 85 °C:
TÜV EN 60252-1
450 V / 85 °C:
UL 810 E106388
C
US
30000 h (class A)
Approved up to 50 µF
Approved component 10000 AFC,
protected up to 450 V
Approved on request
Logistics
Delivery mode
EU pallet as standard
Cardboard tape on pallet
Pack unit, see dimension table
30000 h (class A)
Approved up to 20 µF
Display of ordering codes for EPCOS products
The ordering code for one and the same product can be represented differently in data sheets, data books, other
publications and the website of EPCOS, or in order-related documents such as shipping notes, order confirmations and
product labels.
The varying representations of the ordering codes are due to different processes employed and do
not affect the specifications of the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
Cautions and warnings
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for
Power Capacitors” issued by ZVEI, which are available on the internet at
www.epcos.com/ac_capacitors,
to ensure
optimum performance and to prevent products from failing, and in worst case, bursting and fire. Information given in the data
sheet reflects typical specifications. You are kindly requested to approve our product specifications or request our approval
for your specification before ordering.
FILM AC RD
.
Page 4 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors
Dimensional drawing
B32330/B32332
B32330/B32332 – Super MotorCap™, 450 V
D ±1
d±1
Before safety device
Before Safety
operation
A
13
16 max.
Device Operation
A = 5 mm
After Safety
After safety device
operation
Device Operation
Marking
M8 for ø30-53
Mounting stud
M8 = L = 10mm
M12 for ø63.5
mm
mm
According to DIN 6797-A
According to DIN 6797-A
According to DIN 934
According to DIN 934
L
±2
H±3
Marking
KMK1156-A-E
FILM AC RD
.
Page 5 of 7
Nov 2013
