FA5542: DescriptionLow Standby Power Quasi-Resonant Controller; File Size165KB，2 Pages; ManufacturerFUJI; Websitehttp://www.fujielectric.co.jp/eng/fdt/scd/

Download Datasheet Compare View All

FA5542 Overview

Low Standby Power Quasi-Resonant Controller

Preview

Download Datasheet

View All

Power Electronics

FA5571 series

Low Standby Power Quasi-Resonant Controller

■

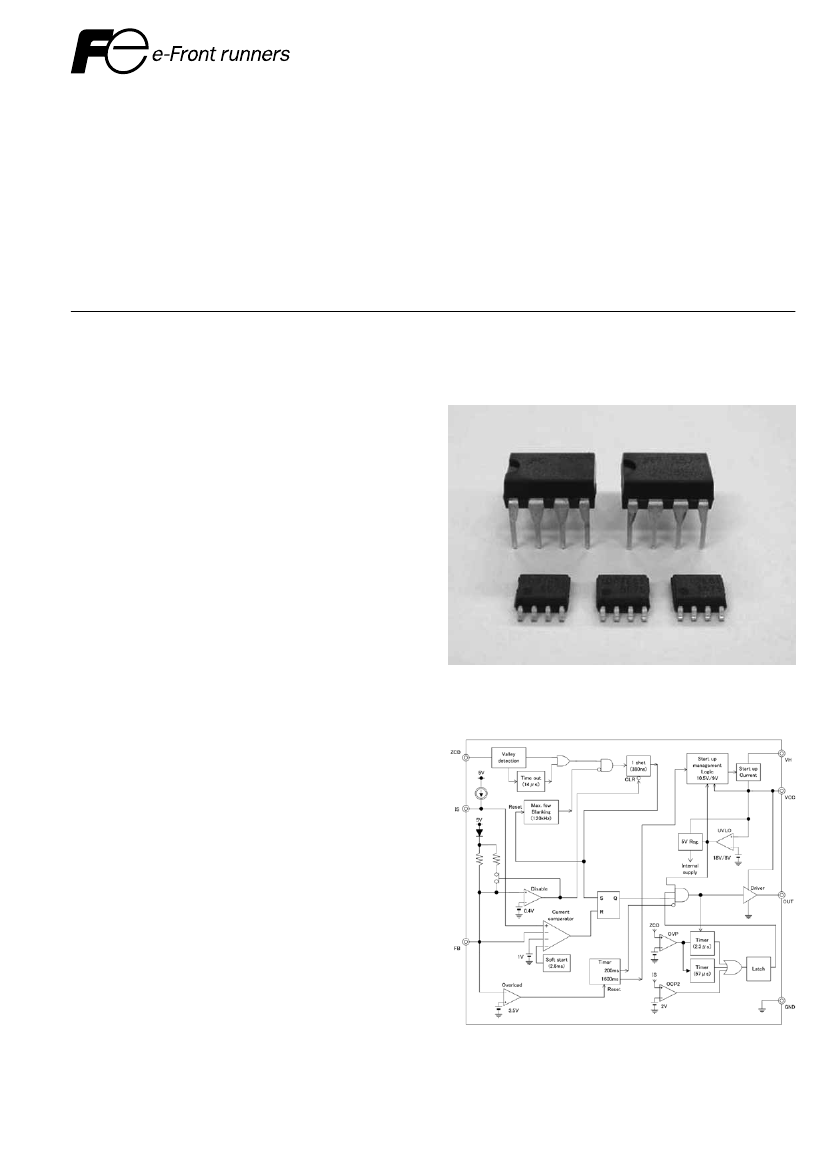

Features

・Internal

500V high voltage startup current source

・Realized

less than 1W input at 0.7W load by intermitting

・Quasi-resonant

operation, low noise and high efficiency

・Numerous

kind of protect functions

■

Applications

・LCD

TV/Monitor Main and Standby SMPS

・Note

PC Adapter

■

Specifications

・Startup

current source 7mA, 1.6mA at VCC=0V, 30uA at off

・VCC

voltage range 9 to 26V

・Soft-start

time 2.6ms

・OUT

pin peak current sink 500mA, source -250mA

・IS

current limiter 1V±0.1V, Windings shorted protection 2V

・ZCD

OVP protection 7.2V ( Latched)

O

・

LP timer auto-recovery switching on/off is 0.2/1.4 sec

■

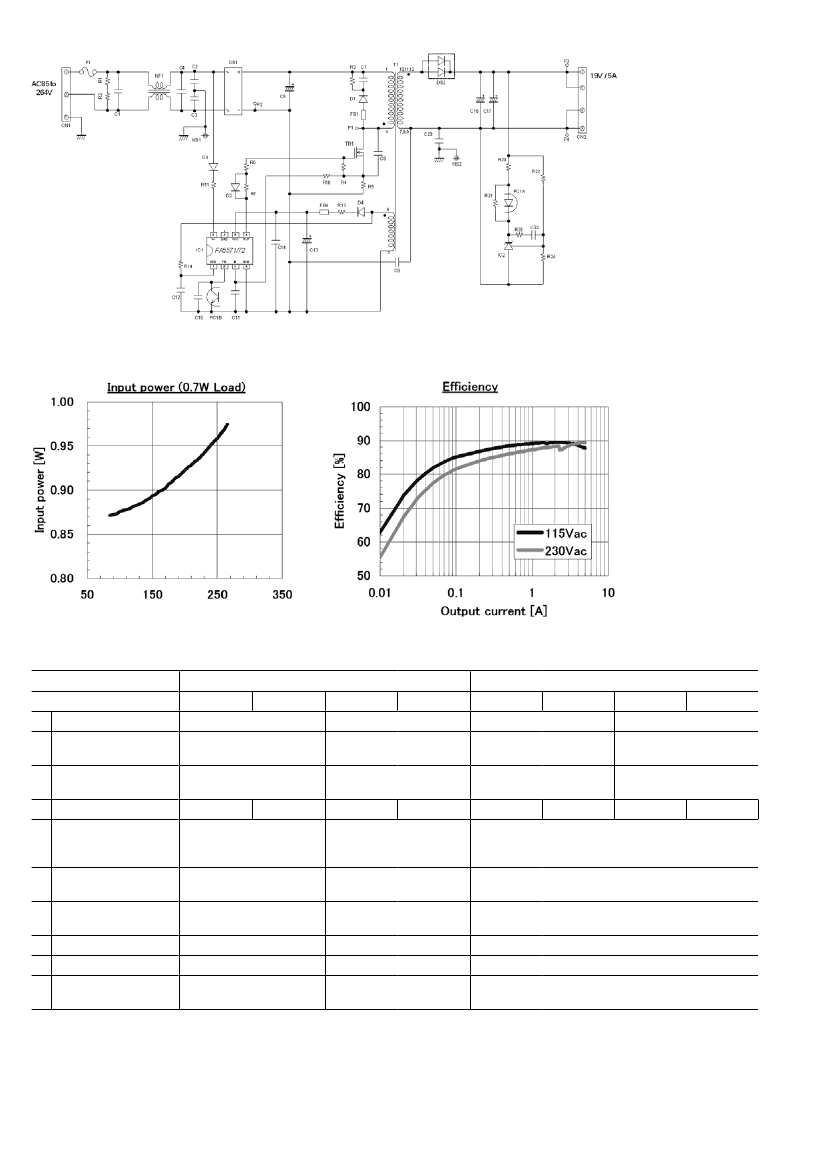

Circuit block

(Prepared in FA5571 series OLP auto-recovery and latched)

FA5542 Related Products

	FA5542	FA5531	FA5532	FA5541	FA5571	FA5572	FA5574	FA55771
Description	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller	Low Standby Power Quasi-Resonant Controller
