90HBJ02SR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 90HBJ02SR

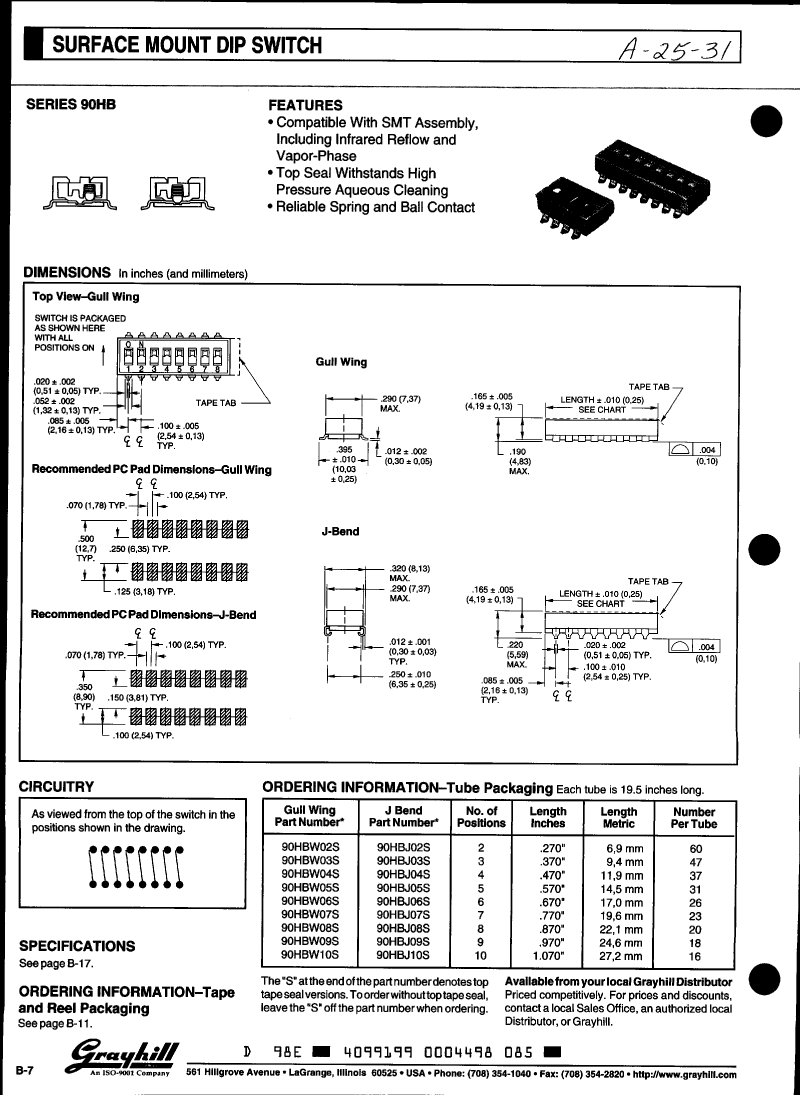

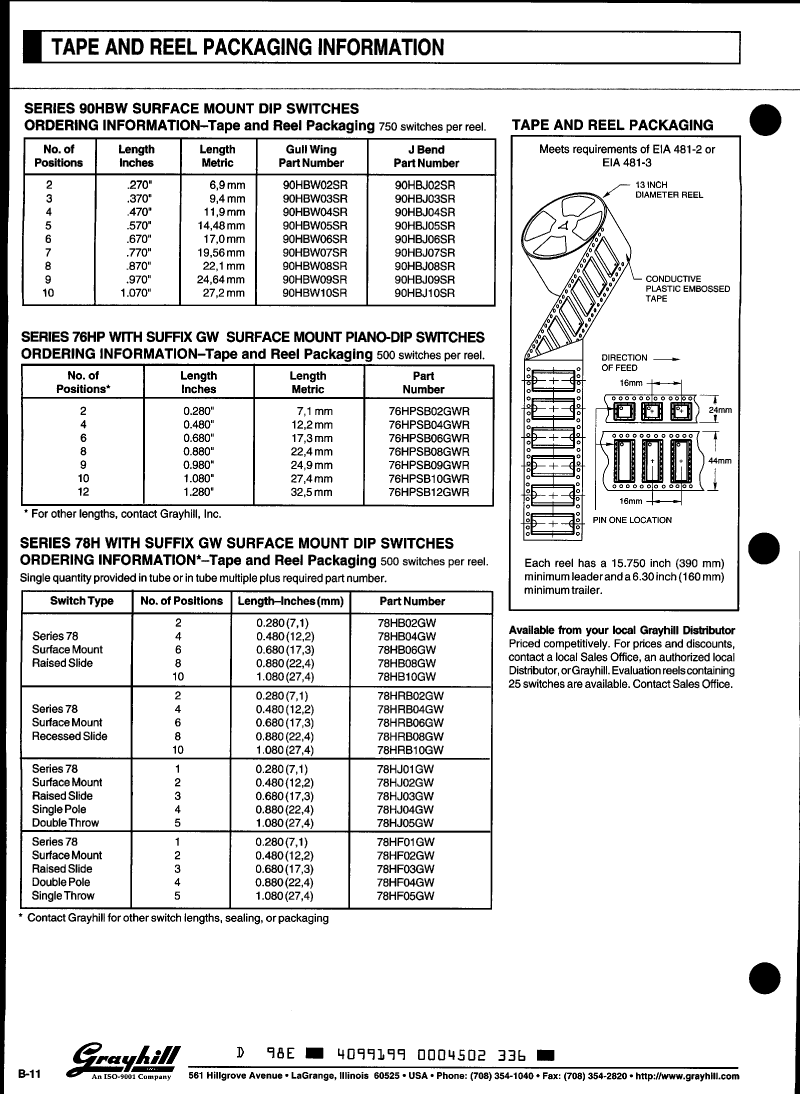

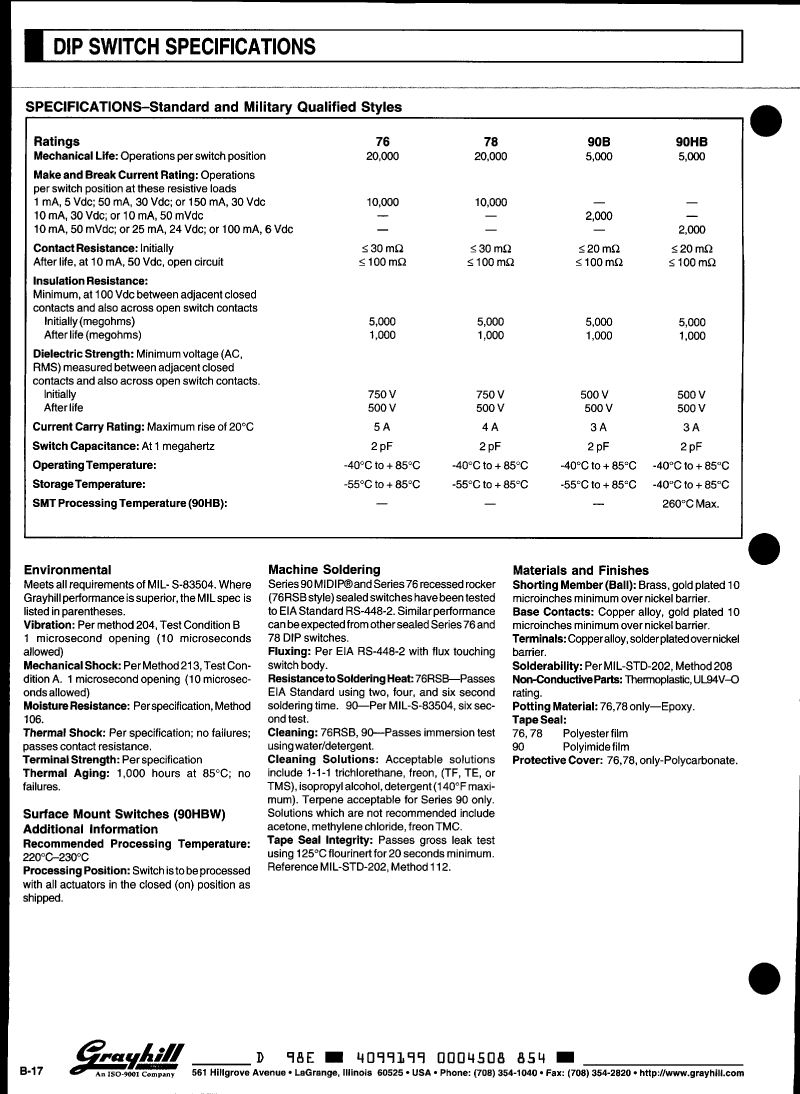

90HBJ02SR: DescriptionSwitch, SPST, Vertical, 0.05A, 30VDC, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size333KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

90HBJ02SR Overview

Switch, SPST, Vertical, 0.05A, 30VDC, Surface Mount-straight

90HBJ02SR Parametric

Parameter Name	Attribute value
Maker	Grayhill
Reach Compliance Code	unknown
Actuator angle
Actuator type	SLIDE
Other features	Environmetal per MIL-S-85304
body width	7.366 mm
body height	5.588 mm
Body length or diameter	6.858 mm
center contact material	BRASS
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@30VDC
Contact function	ON-OFF
Contact resistance	0.02 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	30 V
Electrical life	5000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	5000000000 Ω
Manufacturer's serial number	90HB
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	4
Solderability	WAVE
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal surface	TIN/NICKEL
Terminal material	COPPER ALLOY
Termination type	SOLDER
Washability	SOLVENT
