XRA5100DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> XRA5100DN

XRA5100DN: DescriptionPeizoresistive Sensor, Differential, 0Psi Min, 100Psi Max, 3.5-8.5V, Rectangular, Through Hole Mount; CategoryThe sensor; File Size36KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

XRA5100DN Overview

Peizoresistive Sensor, Differential, 0Psi Min, 100Psi Max, 3.5-8.5V, Rectangular, Through Hole Mount

XRA5100DN Parametric

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
body height	27.43 mm
Body length or diameter	27.94 mm
Linearity(%)	0.5 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	3.50V
Output interface type	5-WIRE INTERFACE
Output range	3.5-8.5V
Output type	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR
port type	BARBED
Maximum pressure range	100 Psi
Minimum pressure range
Pressure sensing mode	DIFFERENTIAL
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	24 V
Minimum supply voltage	7 V
surface mount	NO
Termination type	SOLDER

XRA5100DN Preview

Installation Instructions for the

Fixed Output, Amplified Calibrated with Internal

Voltage Reference Pressure Sensors

XRA5 Series

WARNING

PERSONAL INJURY

DO NOT USE these products as safety or

emergency stop devices, or in any other

application where failure of the product could

result in personal injury.

Failure to comply with these instructions could

result in death or serious injury.

GENERAL INFORMATION

The XRA5 Series uses state-of-the-art silicon

micromachined pressure sensors in conjunction

with stress-free packaging techniques to provide

highly accurate, amplified, calibrated and

temperature compensated pressure sensors for

the most demanding applications.

Unique to this series is the internal voltage

reference that provides a fixed internal voltage

when using variable supply voltage.

All other features are the same for the entire

family, incorporating stress isolation and factory

calibration to achieve optimum accuracy in this

industry standard package.

SOLDERING/ASSEMBLY

Limit soldering to 315 °C [600 °F] maximum,

with duration of five seconds maximum. Leads

must be adequately supported during any

forming/shearing operation to ensure that the

leads are not stressed inside the plastic case.

ISSUE 2

PK 80166

ELECTRICAL SPECIFICATIONS

@ 25 °C, 12 VDC (UNLESS OTHERWISE

NOTED)

Pressure Range

0 in to 4 in H

0 in to 10 in H

1.0 psi to 150 psi

1.0 Vdc Typ.

3.5 Vdc Typ.

5.0 Vdc Typ.

±2.50

Vdc Typ.

7.0 Vdc to 24.0 Vdc

Offset - Gage and Absolute

Offset - Differential

Span -Gage and Absolute

Span - Differential

(with

pressure applied)

Supply Voltage

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Storage Temperature

Hysteresis and

Linearity

Repeatability

Media Compatibility

-25

°C

to 85

°C

[-13

°F

to 185

°F]

-40

°C

to 125°C

[-40

°F

to 257

°F]

0.3% Span, Typ.

±0.1

%Span, Typ.

P1 Port (Dry Gases Only):

Media must be compatible

with epoxy-based

adhesive.

P2 Port:

Media must be

compatible

with nylon

housing, epoxy adhesive

and silicon.

EQUIVALENT CIRCUIT

PIN DESIGNATIONS

1. V Reference

2. V Excitation

3. Common

4. V Output

5. V Offset

6. N/C

Sensing and Control

XRA5 Series

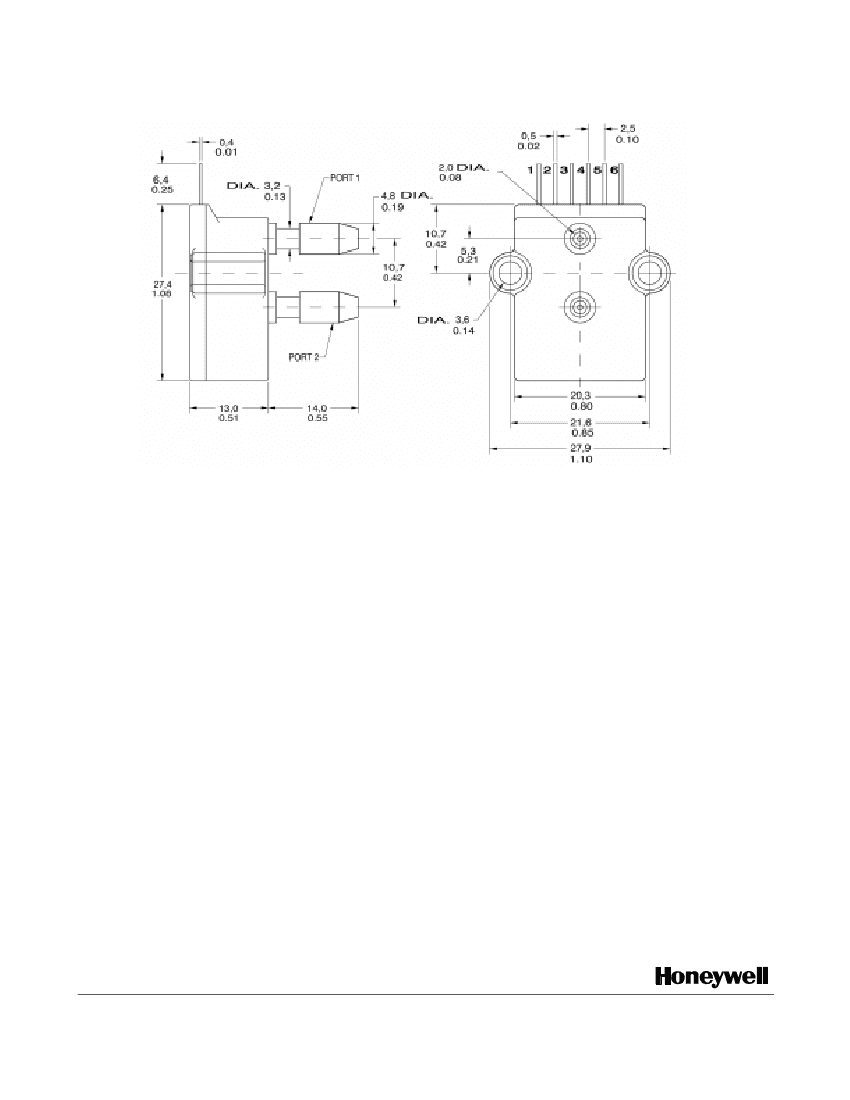

MOUNTING DIMENSIONS

(for reference only) mm/in

ISSUE 2

PK 80166

WARRANTY/REMEDY

Honeywell warrants goods of its manufacture

as being free of defective materials and faulty

workmanship. Contact your local sales office for

warranty information. If warranted goods are

returned to Honeywell during the period of

coverage, Honeywell will repair or replace without

charge those items it finds defective. The

foregoing is Buyer’s sole remedy and is

in lieu of

all other warranties, expressed or implied,

including those of merchantability and fitness

for a particular purpose.

Specifications may change without notice. The

information we supply is believed to be accurate

and reliable as of this printing. However, we

assume no responsibility for its use.

While we provide application assistance

personally, through our literature and the

Honeywell web site, it is up to the customer to

determine the suitability of the product in the

application.

For application assistance, current

specifications, or name of the nearest Authorized

Distributor, contact a nearby sales office. Or call:

1-800-537-6945 USA

1-800-737-3360 Canada

1-815-235-6847 International

FAX

1-815-235-6545 USA

INTERNET

www.honeywell.com/sensing

info.sc@honeywell.com

Sensing and Control

Honeywell

11 West Spring Street

Freeport, Illinois 61032

P80166-2-EN IL50 GLO 303 Printed in USA

www.honeywell.com/sensing

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
