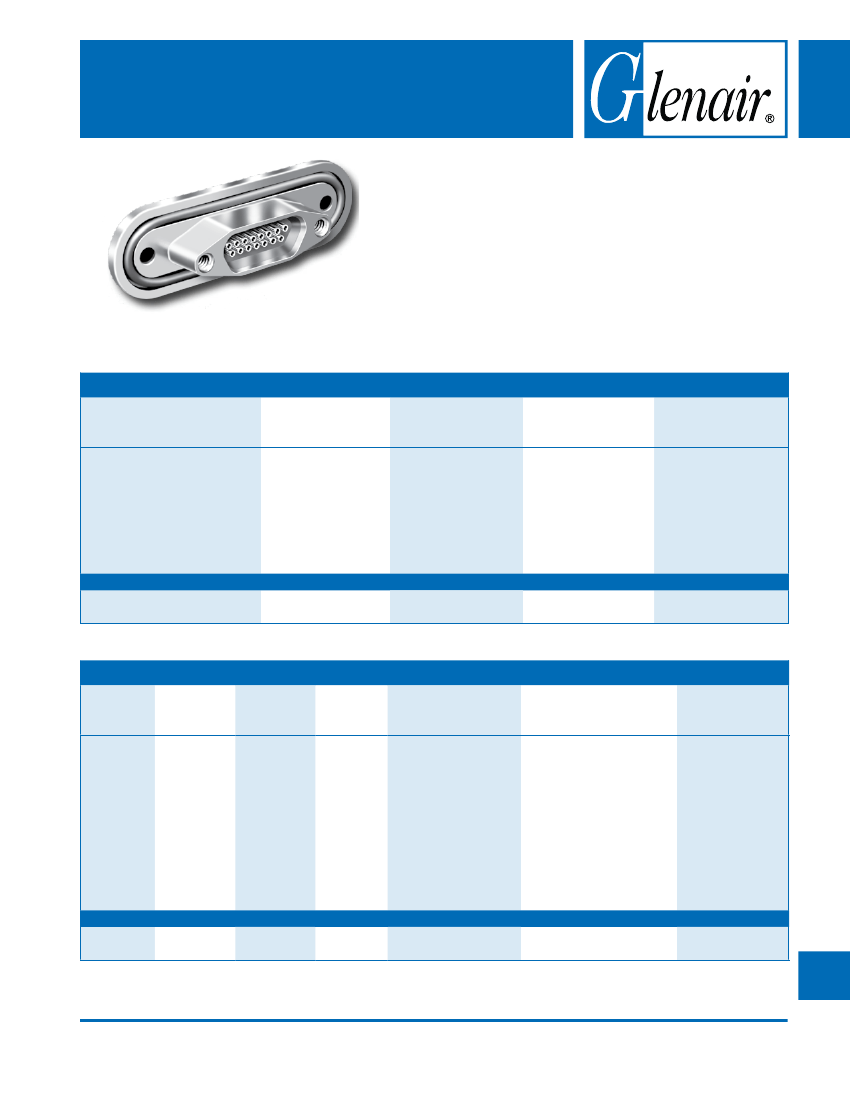

177-705h and 177-706h
MIL-DtL-83513 type Micro-D hermetic Connectors
Rear panel Mount with o-Ring
Fluorosilicone O-Ring
eliminates the cost of soldering or
welding the connector to a bulkhead.
Kovar
®
Shells and Contacts
comply with applicable MIL-
DTL-83513 requirements and are 100% intermateable
with standard connectors.
Solder Cup, PC Tail or Pre-Wired and Fully Potted
Suitable for #26 gage wire or smaller, solder cup
versions feature gold-plated contacts. Choose PC tails
for attachment to flex circuits or rigid boards. Solder
cup versions are also available pre-wired and potted.
hoW to oRDER soLDER Cup AND pC tAIL CoNNECtoRs
series
177-705h
Micro-D Hermetic Socket
Receptacle, Rear Panel Mount with
O-Ring, Solder Cup or PC Tail
Layout
Number of Contacts
9
15
21
25
31
37
51
100
Contact type
s
– Socket
termination type
s
–
Solder Cup
p
–
PC Tail
Mounting threads
u
–
#4 - 40 UNC
M
–
M3 Metric
Sample Part Number
177-705h
15
s
p
u
hoW to oRDER pRE-WIRED CoNNECtoRs
series
177-706h
Layout
9
15
21
25
31
37
51
100
Contact
type
s
–
Socket
Wire Gage
(AWG)
6
– #26
8
– #28
0
– #30
Wire type
K
–
M22759/11
600 Vrms Teflon
(TFE) (Not Available
in #30 AWG)
Wire Color
1
–
White
2
–
Yellow
5
–
Color-Coded Stripes Per
MIL-STD-681
(#26 gage only)
Wire Length
Inches
18
Wire Length In Inches.
“18” Specifies 18 Inches.
J
–
M22759/33
600 Vrms Modified
Cross-Linked Tefzel
(ETFE)
7
–
Ten Color Repeat
Sample Part Number
177-706h
25
s
6
K
1
– 18
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
I-7
MIL-DTL-83513
Connectors
I
MIL-DTL-83513
Connectors
A
B
C
D
E
F
9-69 CONTACTS
#2-56 THREADS
100 CONTACTS
#4-40 THREADS
G
H
J
LK
177-705H and 177-706H
MIL-DTL-83513 Type Micro-D Hermetic Connectors
Rear Panel Mount with O-Ring
TWO ROW .180 (4.57)
MAX.
BLIND TAPPED
MTNG HOLES
#4-40
THREE, FOUR ROW
.260 (6.60) MAX.
SOLDER CUP
WIRE LENGTH +1.0
(2.54)/-0.0
.094 ± .005
(2.39 ± 0.13)
EPOXY
.500 (12.7) MAX.
PRE-WIRED
.125 ± .015
(3.18 ± 0.38)
.021/.018
(0.53/0.46)
PC TAIL
DIMENSIONS
A Max.
Layout
9S
15S
21S
25S
31S
37S
51S
2 row
51S
3 row
100S
B
In. mm.
C MAX.
D
In . mm.
E MAX.
F Max.
G
In. mm.
4.95
4.95
4.95
4.95
4.95
4.95
4.95
4.95
4.95
H Max.
J
K
In. mm.
6.45
6.45
6.45
6.45
6.45
6.45
6.45
6.45
6.45
L Max.
In. mm.
± .005 ± 0.13
In . mm.
± .003 ± 0.08
In. mm. In. mm.
± .004 ± 0.10
In. mm. In. mm.
± .004 ± 0.10
In. mm.
1.488
37.80
1.011 25.67 .728 18.49 .565 14.35 .250
1.638 41.61 1.161 29.48 .878 22.30 .715 18.16 .250
1.788 45.42 1.311 33.29 1.028 32.51 .865 21.97 .250
1.888 47.96 1.411 35.83 1.128 28.65 .965 24.51 .250
2.038 51.76 1.561 39.64 1.278 32.46 1.115 28.32 .250
2.188 55.57 1.711 43.45 1.428 36.27 1.265 32.13 .250
2.538 64.47 2.061 52.35 1.778 45.16 1.615 41.02 .250
2.138 54.30 1.661 42.19 1.378 35.00 1.215 30.86 .310
2.820 71.63 2.312 58.72 2.002 50.85 1.800 45.72 .330
6.35
6.35
6.35
6.35
6.35
6.35
6.35
7.87
8.38
.675 17.14 .195
.675 17.14 .195
.675 17.14 .195
.675 17.14 .195
.675 17.14 .195
.675 17.14 .195
.675 17.14 .195
.715 18.16 .195
.795 20.19 .195
.526 13.36 1.254 31.85 .254
.526 13.36 1.414 36.91 .254
.526 13.36 1.564 39.72 .254
.526 13.36 1.664 42.26 .254
.526 13.36 1.814 46.07 .254
.526 13.36 1.984 50.39 .254
.526 13.36 2.334 59.28 .254
.526 13.36 1.920 48.77 .254
.599 15.21 2.569 65.25 .254
.358
.358
.358
.358
.358
.358
.358
.358
.358
9.09
9.09
9.09
9.09
9.09
9.09
9.09
9.09
9.09
I
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
I-8
177-705H and 177-706H
MIL-DTL-83513 Type Micro-D Hermetic Connectors
Rear Panel Mount with O-Ring
PANEL CUTOUT DIMENSIONS FOR 177-705 AND 177-706
A
B
C
FULL RADIUS
Ø .134 ± .004 (3.40 ± 0.10) 2 PLCS
A
Layout
9
15
21
25
31
37
51
2 row
51
3 row
100
In.
± .003
1.011
1.161
1.311
1.411
1.561
1.711
2.061
1.661
2.312
B
mm.
± 0.08
25.69
29.50
33.31
35.85
39.66
43.47
52.35
42.19
58.72
C
mm.
± 0.13
18.56
22.37
26.18
28.72
32.53
36.34
45.24
35.08
50.93
In.
± .005
.731
.881
1.031
1.131
1.281
1.431
1.781
1.381
2.005
In.
+ .005/ -0.0
.252
.252
.252
.252
.252
.252
.252
.310
.330
mm.
+ 0.13/ -0.0
6.40
6.40
6.40
6.40
6.40
6.40
6.40
7.87
8.38
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
I-9
MIL-DTL-83513
Connectors
I
