This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0643261009
Active
cmc_connectors
2.50 mm (.098"), 4.20mm (.165") and 8.40mm, Power CMC Receptacles, 22 Circuits,
Right Wire Output, Black Coding with Rear Seal Cover
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Housings
64326
* Current tested on a fully loaded connector, current
for temperature increase of 40°C. Current max = 26.0A
for 2.8mm Terminal (5.0mm² wire), 4.5A for 0.635mm
Terminal (0.75mm² wire)
cmc_connectors
CMC
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Overview
Product Name
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
22
2 x 2.80mm (.110") terminals high current, 20 x
0.635mm (.025") terminals signal pin
Blue
Female
No
Yes
Yes
Polyester
4
Carton
No
0.098 In, 0.165 In, 0.330 In
2.50 mm, 4.20 mm, 8.40 mm
Yes
No
-40°C to +125°C
Search Parts in this Series
64326Series
Mates With
No free available mating header, please
contact Product Manager
Use With
Terminals 64322 CP 0.635mm (.025”),
64324 CP 2.80mm (.110”), 643251010
Blind Plugs for CP 0.635mm (.025”) cavity
643251091 Seal Plug for CP 2.80mm (.110”)
cavity, Wire Cap 643191201
Electrical
Current - Maximum per Contact
26A, 4.5A
Material Info
Reference - Drawing Numbers
Application Specification
Sales Drawing
AS-64326-001

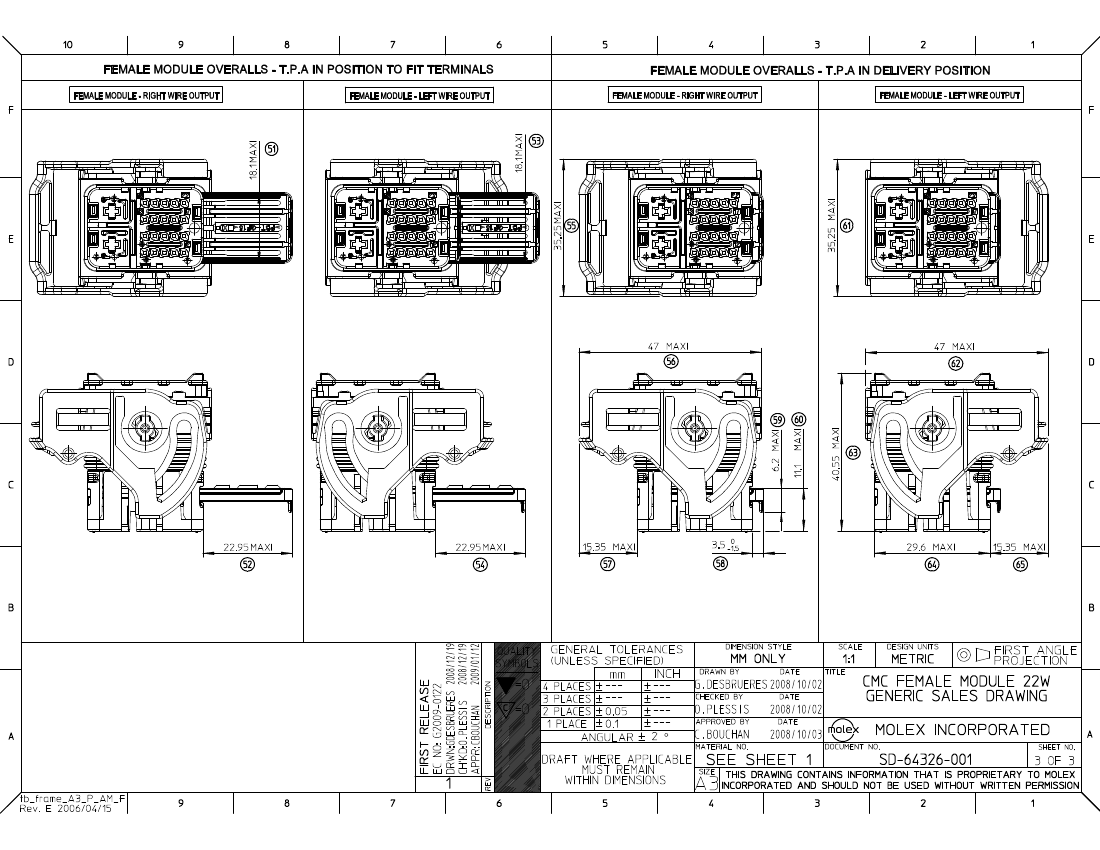

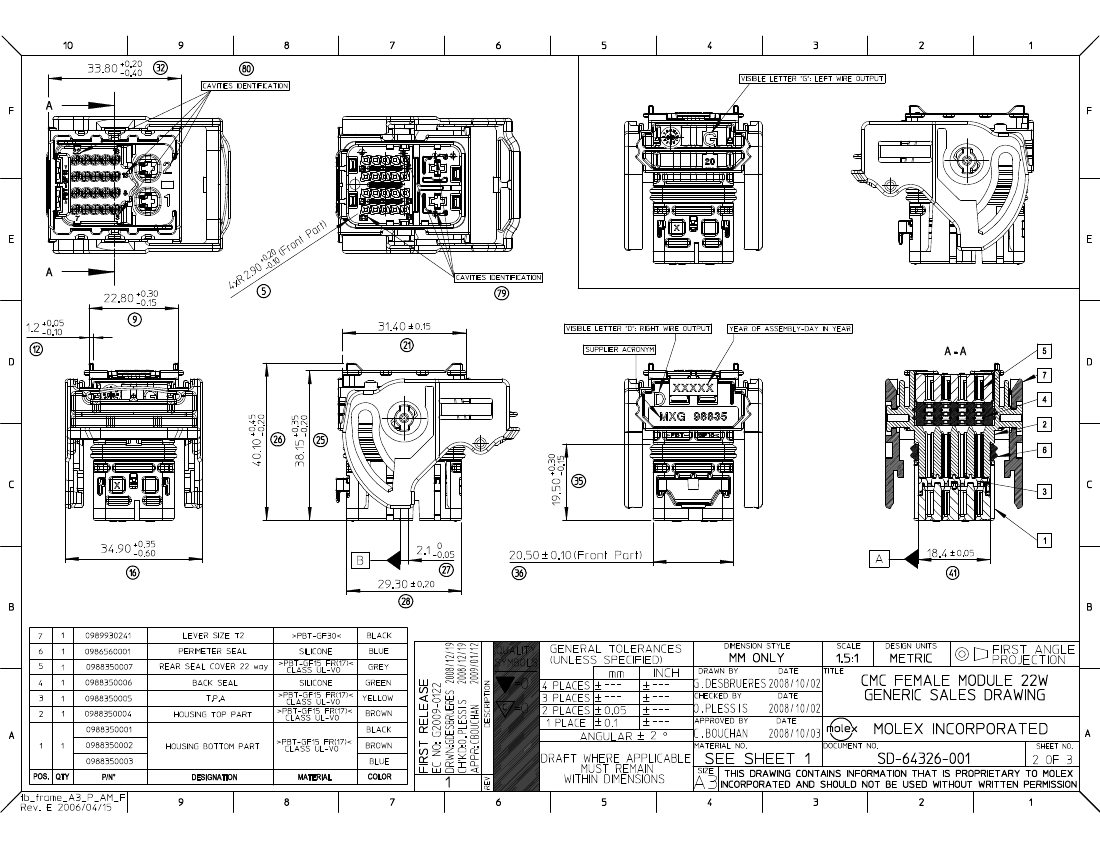

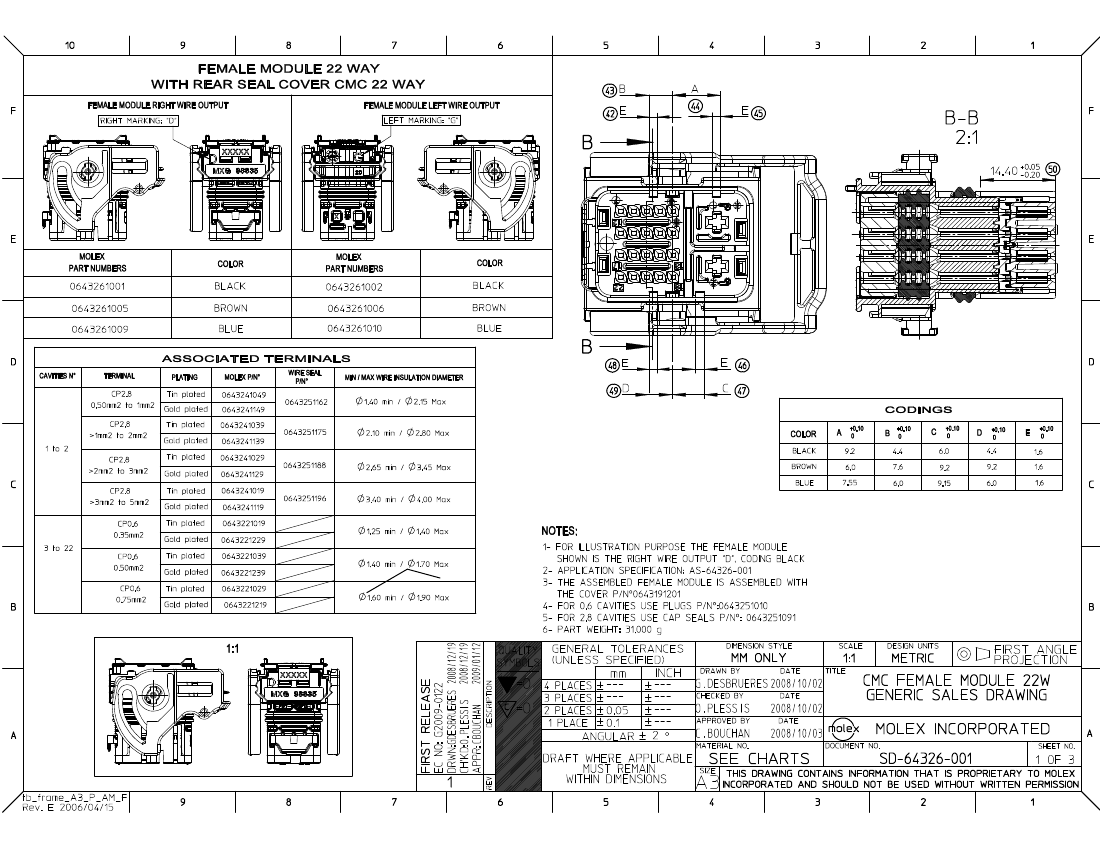

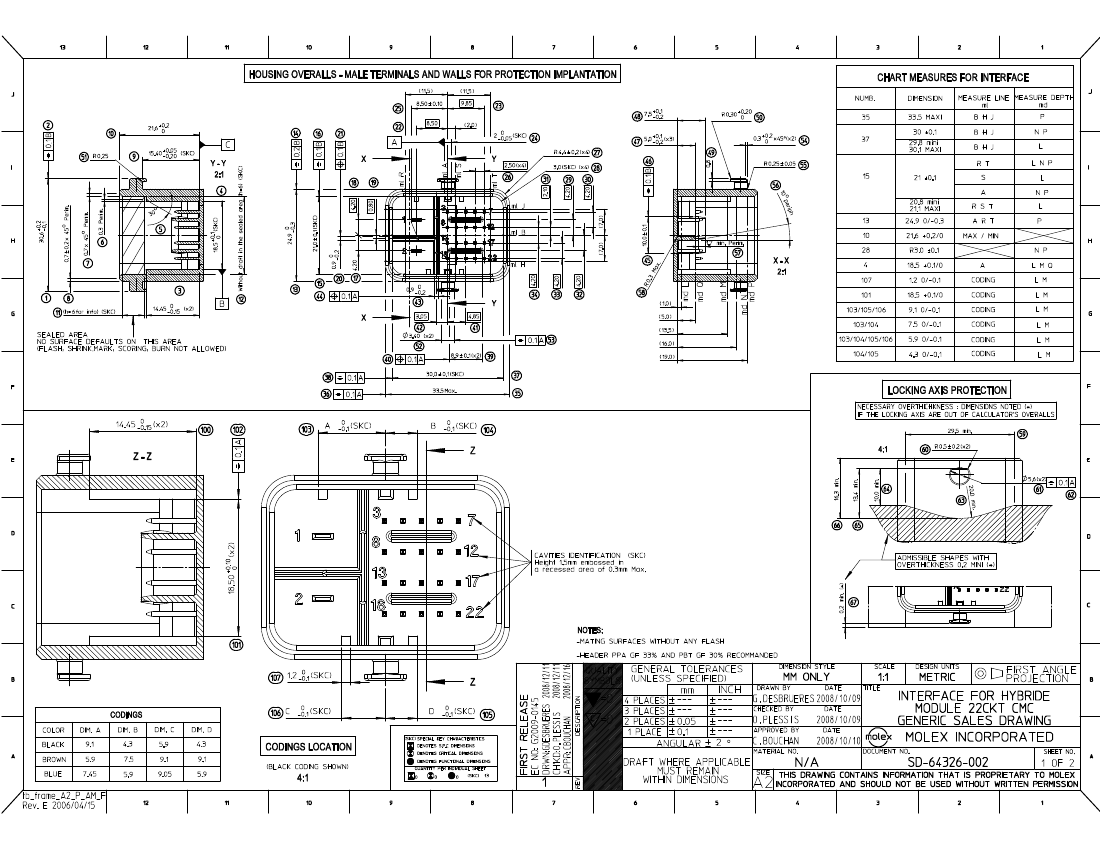

SD-64326-001, SD-64326-002
