87759-4466 datasheet, PDF - EEWORLD Datasheet

87759-4466: Description2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 34 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap; File Size302KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

87759-4466 Overview

2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 34 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap

Preview

Download Datasheet

View All

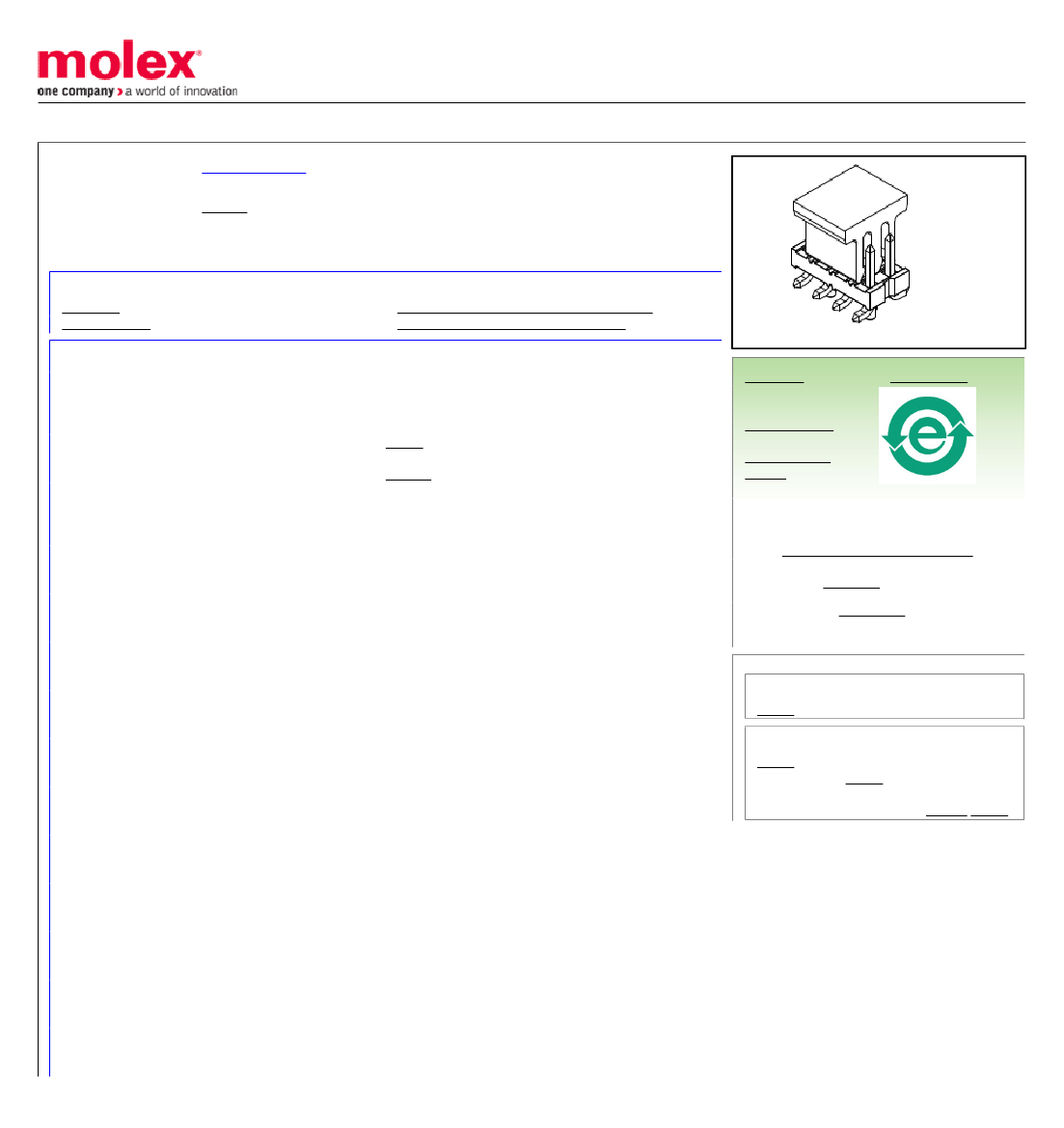

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877594466

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, 34 Circuits, 0.76µm

(30µ") Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap,

Tube Packaging, Lead-free

Documents:

3D Model

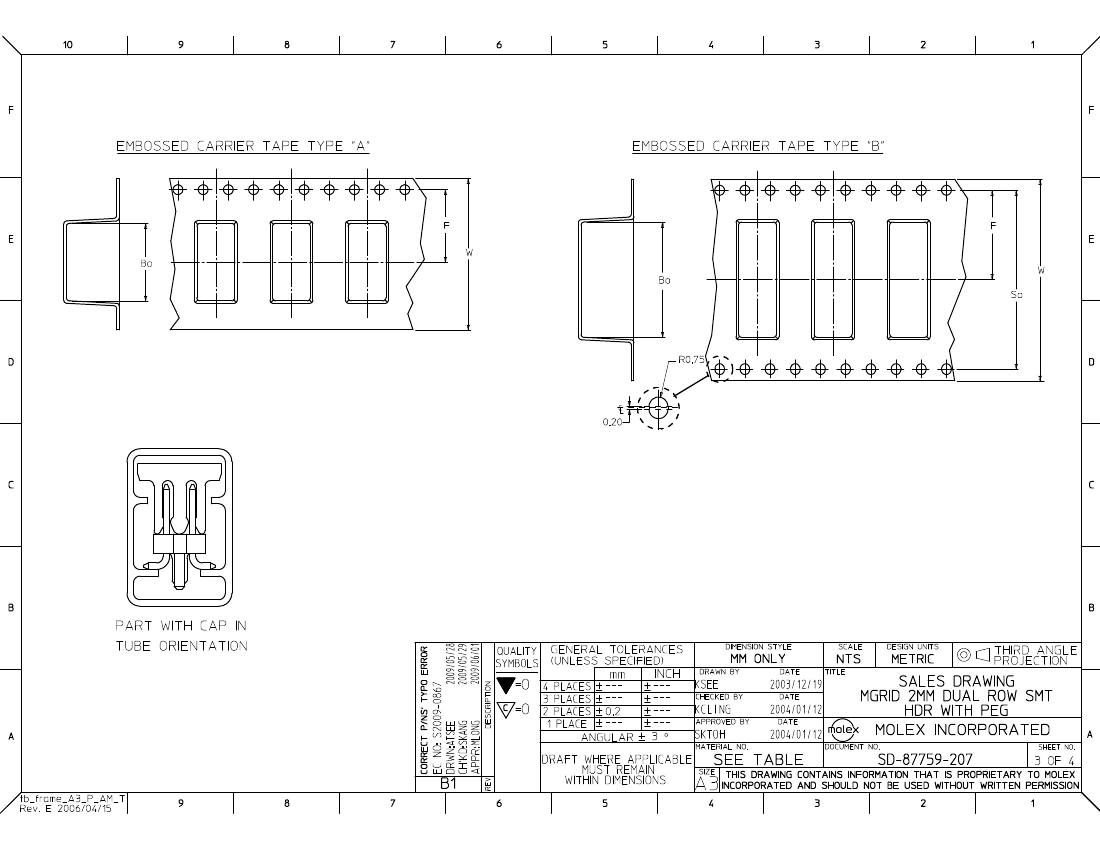

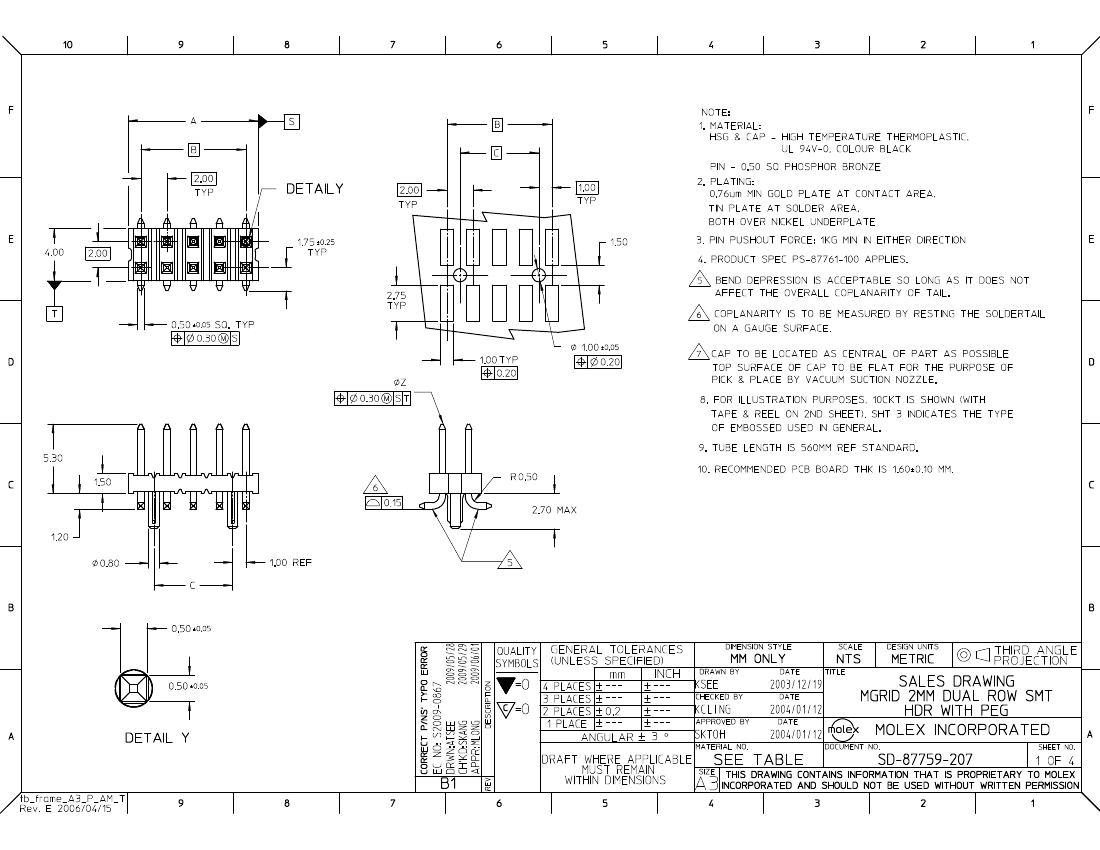

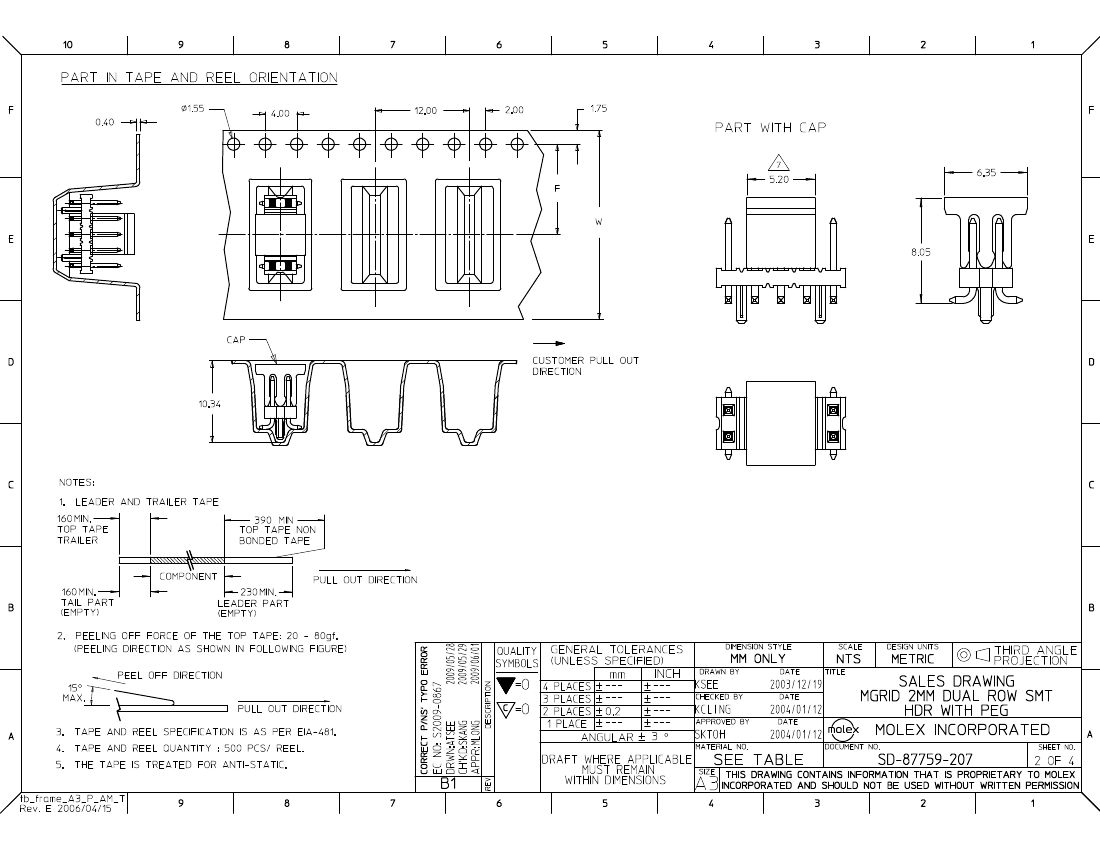

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87759

Board-to-Board

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Yes

Black

100

94V-0

None

0.150 In

3.80 mm

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

Yes

None

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.76

74.8

1.90

Pick and Place Cap

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87759Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381

87759-4466 Related Products

	87759-4466	0877594466
Description	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 34 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, 34 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating, with Press-fit Plastic Pegs, Pick-and-Place Cap
