Part Number:
Status:
Overview:
Description:
0878351643
Active
cgrid__sl_products

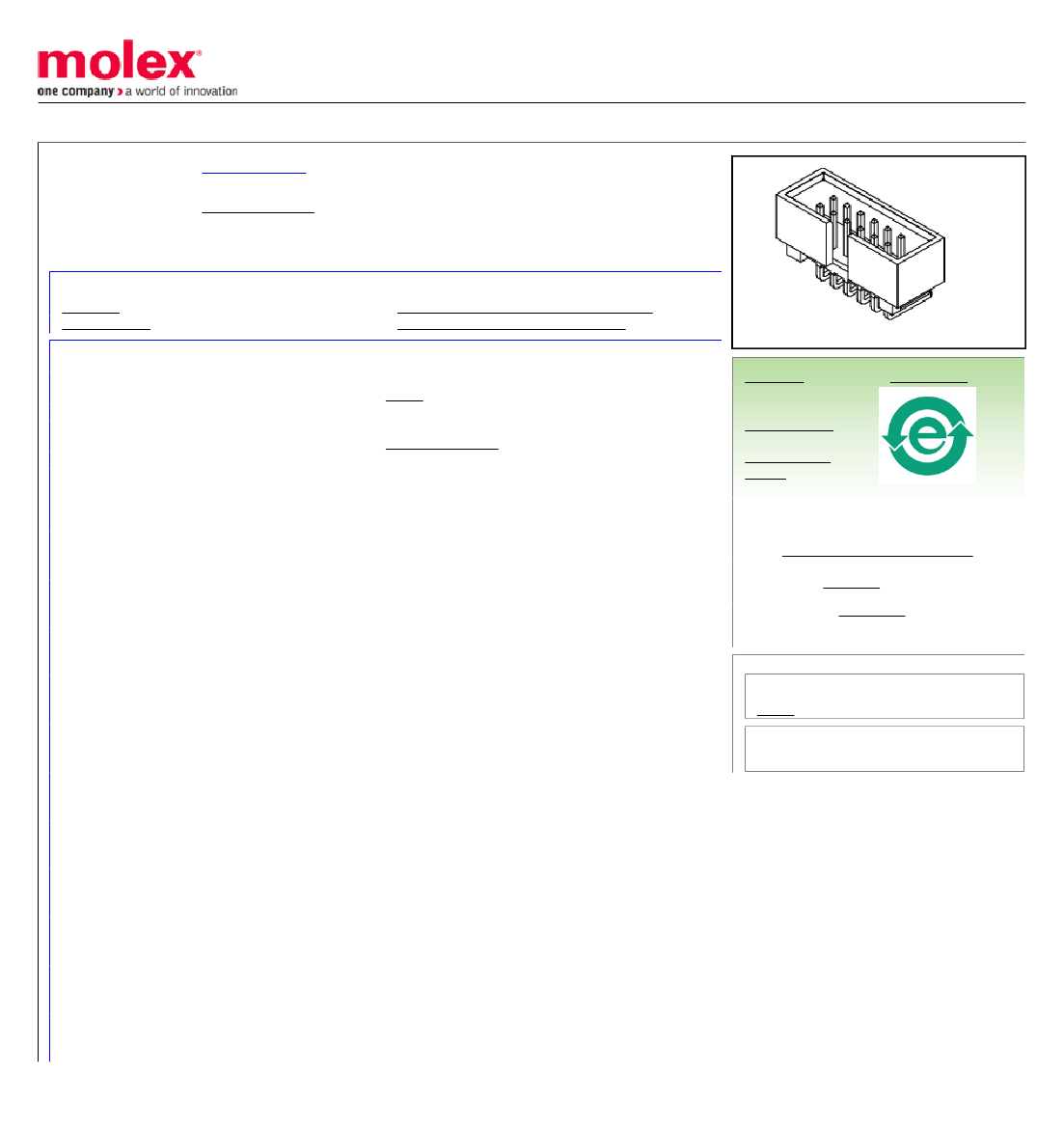

2.54mm (.100") Pitch C-Grid® Header, Right Angle, Through Hole, Dual Row, Low
Profile, Shrouded, 16 Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Center
Polarization Slot, with Two End Slots, Kinked PC Tails, Lead-free
Documents:
3D Model

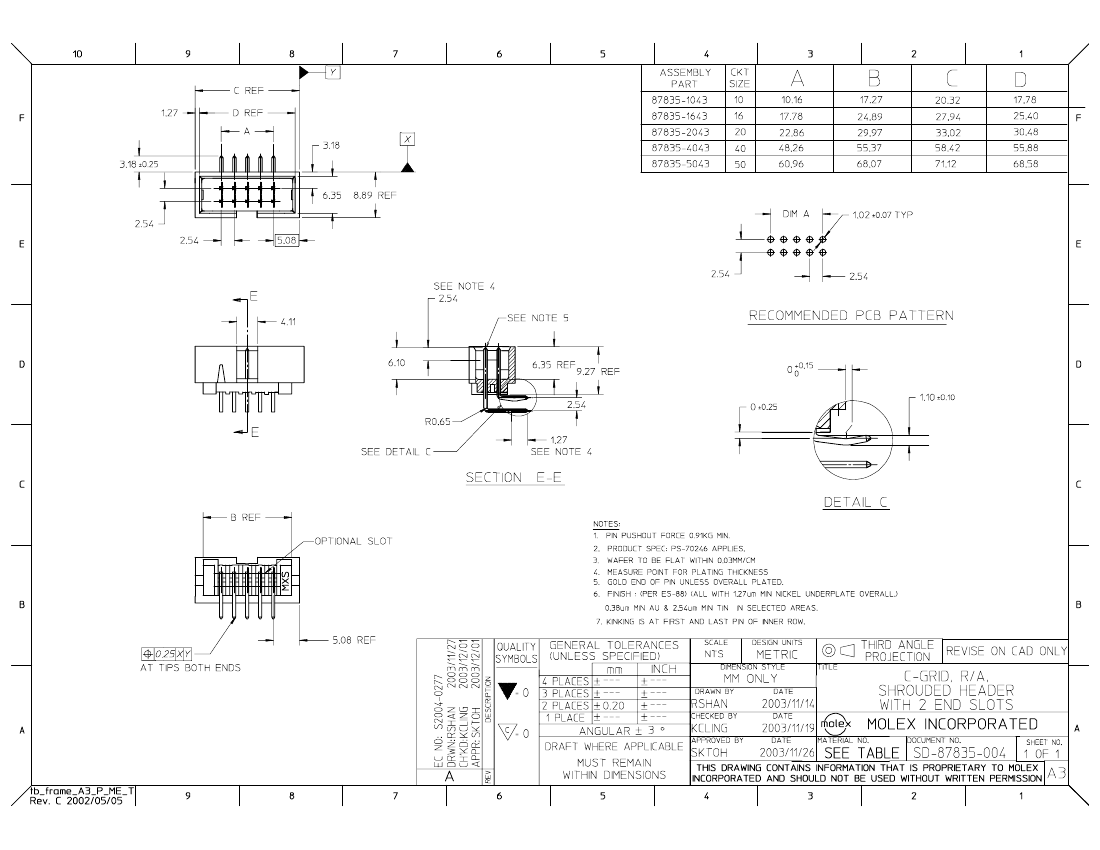

Drawing (PDF)
Product Specification PS-70246-100 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
87835
Wire-to-Board
<LI>Kinking at First and Last Pin of Inner Row
cgrid__sl_products
C-Grid®
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
16
16
Natural
50
No
No
No
None
Yes
Gold
Tin
Nylon
2
Right Angle
0.125 In
3.18 mm
No
None
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
15.2
0.38
100
2.5
Center Slot
No
Fully
No
Yes
-55°C to +120°C
Through Hole
Search Parts in this Series
87835Series
Mates With
.050" pitch ribbon cable connectors
