0026202022
Active
kk
3.96mm (.156") Pitch KK® Wire-to-Board Header, Vertical Round Pin, 2 Circuits, Tin
(Sn) Plating, with Mating Pin Length of 16.18mm (.637")
Documents:
3D Model

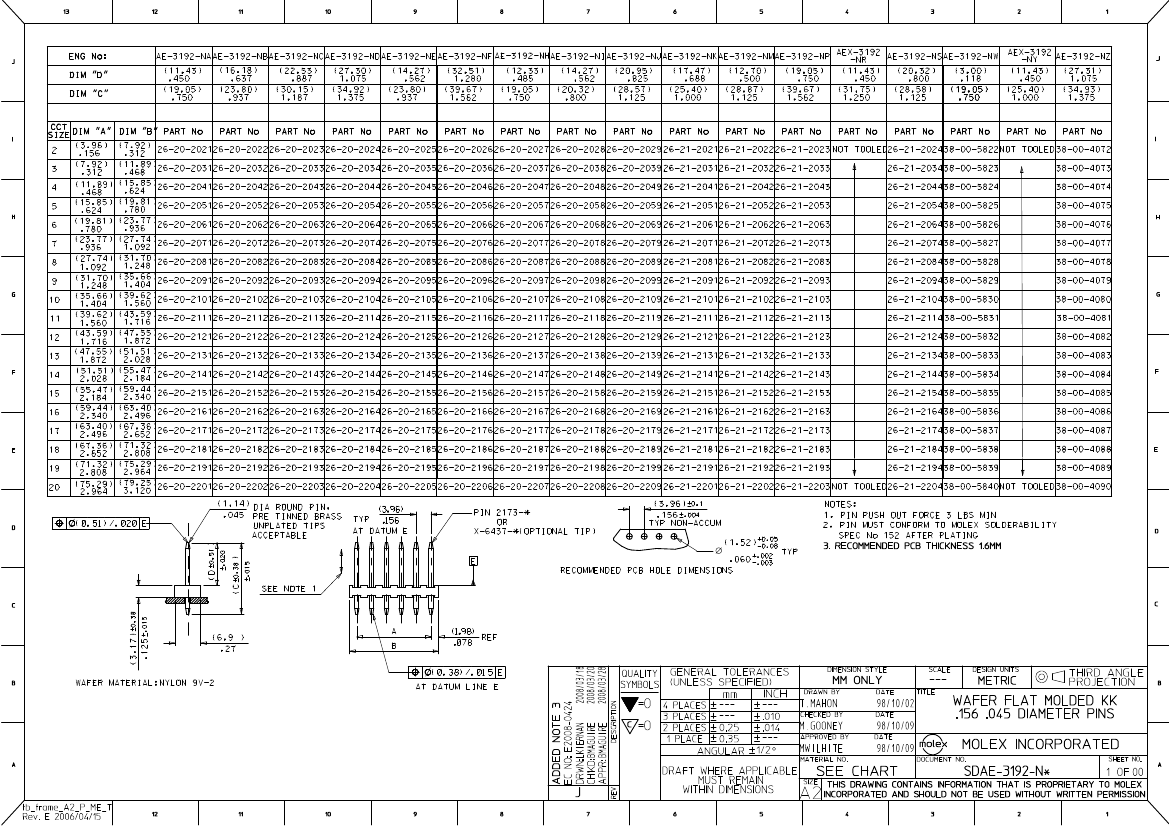

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
3192
Board-to-Board, Wire-to-Board
kk
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
No
2
2
Natural
25
No
94V-2
No
No
None
None
Brass
Tin
Tin
Nylon
1
Vertical
0.175 In
4.45 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
200
5
200
5
No
No
No
Yes
0°C to +75°C
Search Parts in this Series
3192Series
Mates With
3069 KK® Crimp Terminal Housing. 3215
KK® PC Board Connector
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Material Info
Old Part Number
319202B
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-99020-0087
SDAE-3192-N*
