3003-10A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3003-10A

3003-10A: Description10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector; File Size298KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

3003-10A Overview

10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

3003-10A Parametric

Parameter Name	Attribute value
Total number of contacts	10
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	3003
Contact surface matching	Tin(197)
Contact coated terminals	Tin(197)
Connection Type	power connector
Connector male and female	Pin
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD
Shell material	Polyamide
Terminal type	welding
UL flammability code	94V-2

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0010081101

Active

5.08mm (.200") Pitch KK® Header, Vertical, Round Pin, 10 Circuits, Tin (Sn) Plating,

Pin Length 19.05mm (.750")

Documents:

3D Model

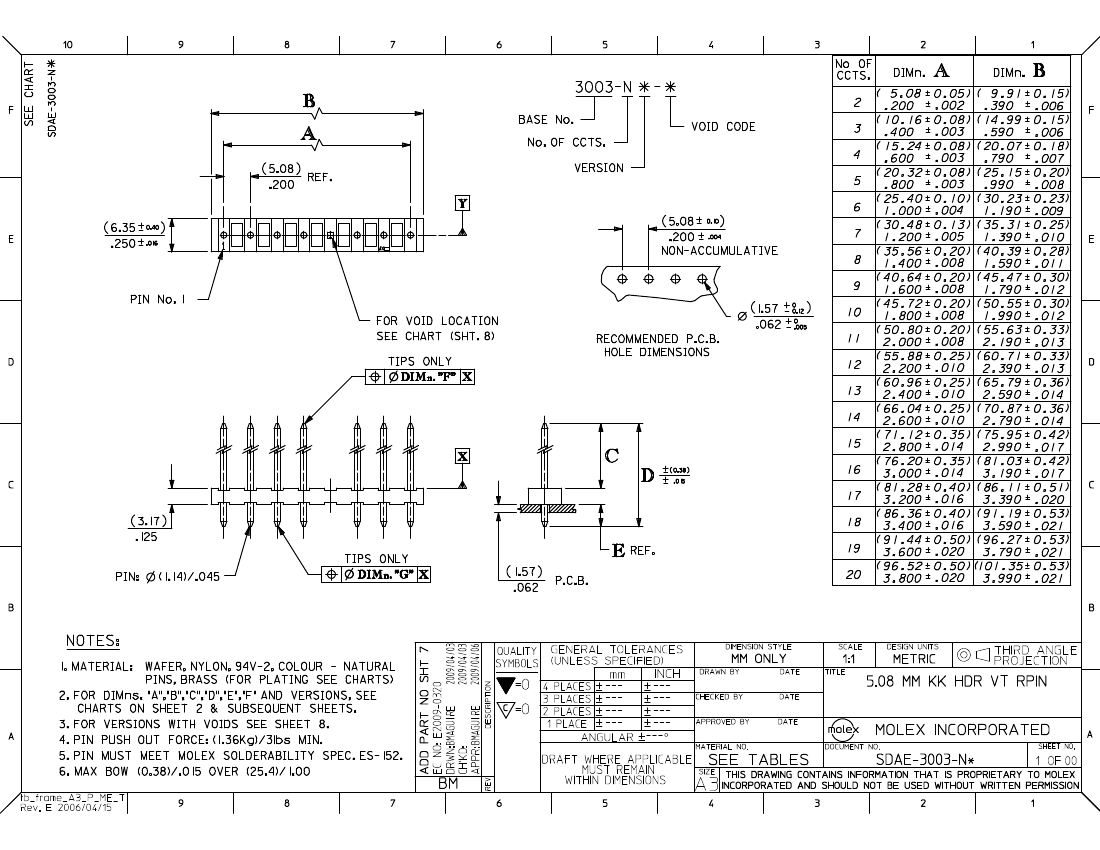

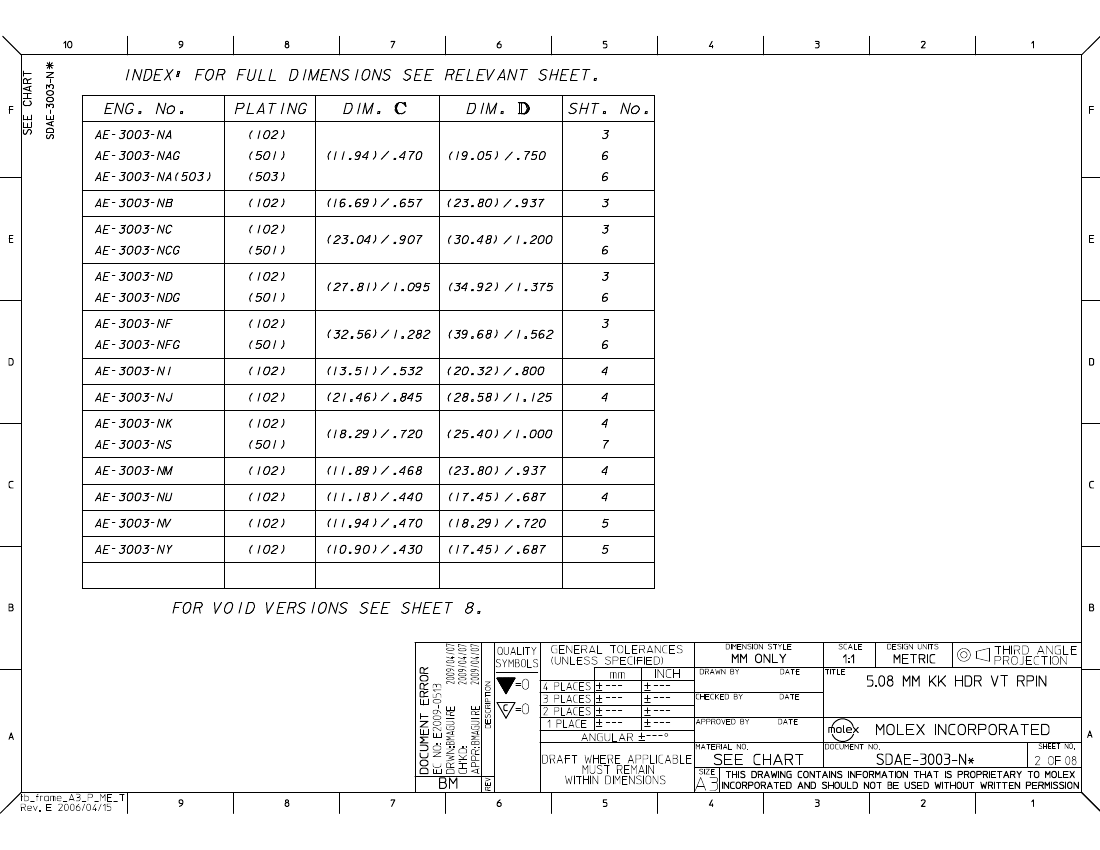

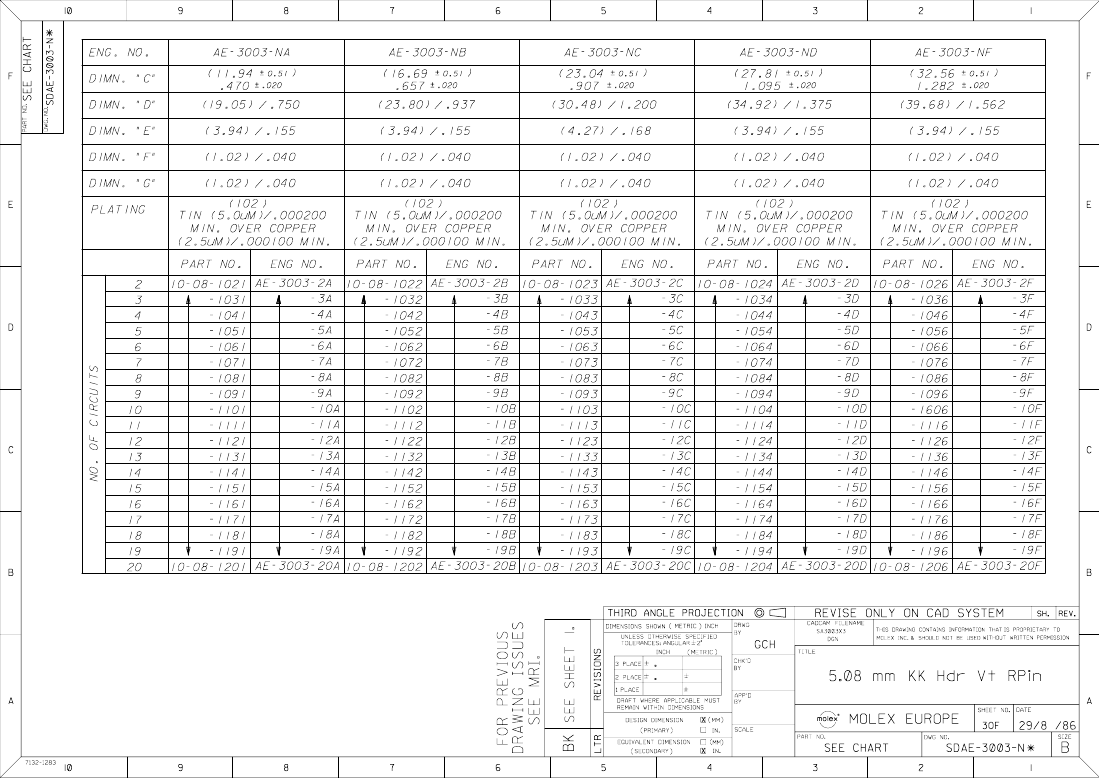

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

3003

Board-to-Board, Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Natural

94V-2

None

Brass

Tin

Nylon

Vertical

0.155 In

3.94 mm

None

0.062 In

1.60 mm

Bag

0.200 In

5.08 mm

0.200 In

5.08 mm

200

Search Parts in this Series

3003Series

Mates With

KK® Crimp Housing 3001 , 5058. 3002 KK®

PC Board Connector

3003-10A Related Products

	3003-10A	AE-3003-10A
Description	10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
Total number of contacts	10	10
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Manufacturer Series	3003	3003
Contact surface matching	Tin(197)	Tin(197)
Contact coated terminals	Tin(197)	Tin(197)
Connection Type	power connector	power connector
Connector male and female	Pin	Pin
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD	BOARD
Shell material	Polyamide	Polyamide
Terminal type	welding	welding
UL flammability code	94V-2	94V-2
