A-7478-23A102

Description
2.54mm (.100) Pitch KK® Solid Header, Right Angle, with Friction Lock, 23 Circuits, Tin (Sn) Plating
File Size333KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A-7478-23A102 Overview

2.54mm (.100) Pitch KK® Solid Header, Right Angle, with Friction Lock, 23 Circuits, Tin (Sn) Plating

This document was generated on 04/09/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0022053231
Active
2.54mm (.100") Pitch KK® Solid Header, Right Angle, with Friction Lock, 23 Circuits,
Tin (Sn) Plating
Documents:
3D Model

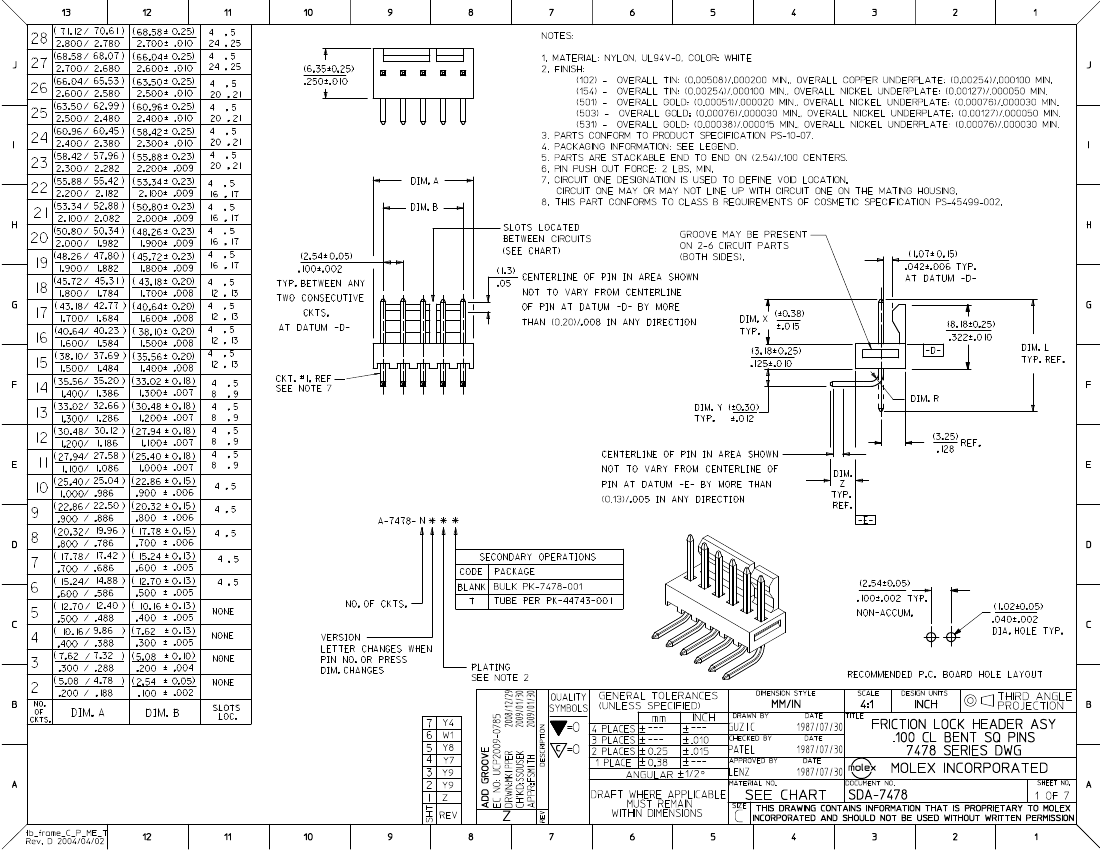

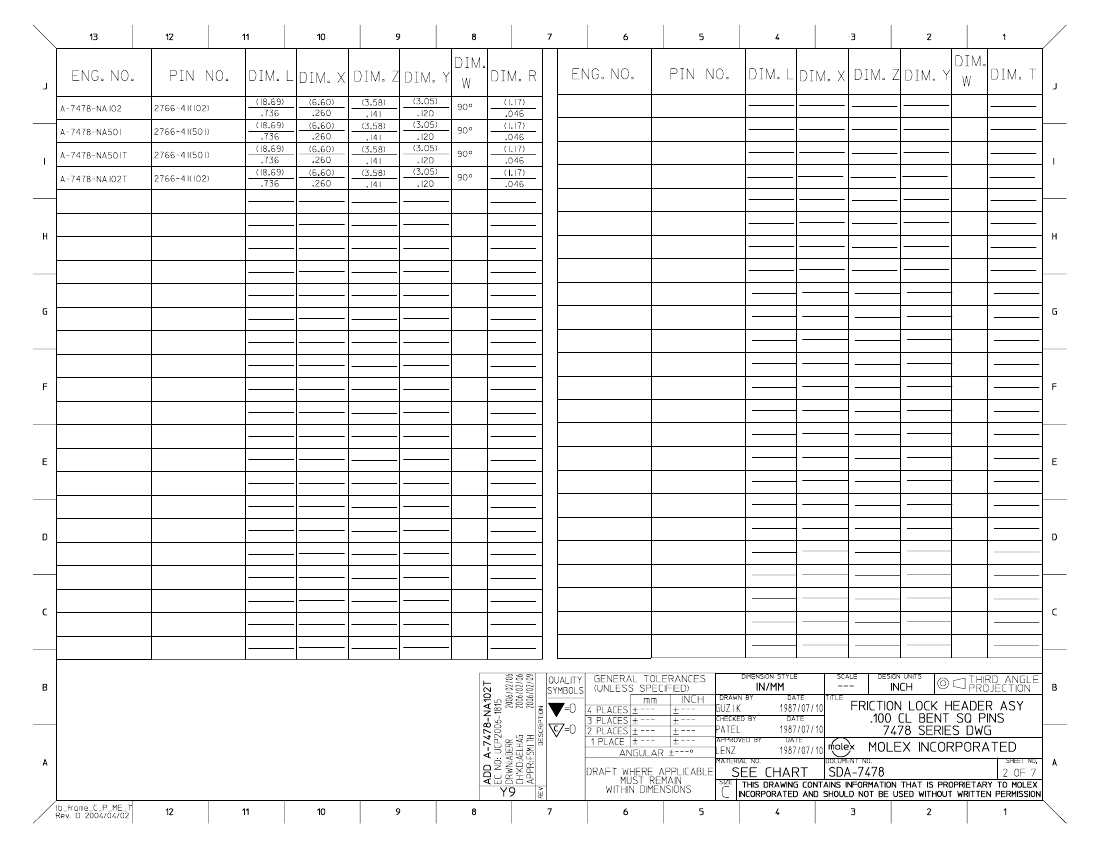

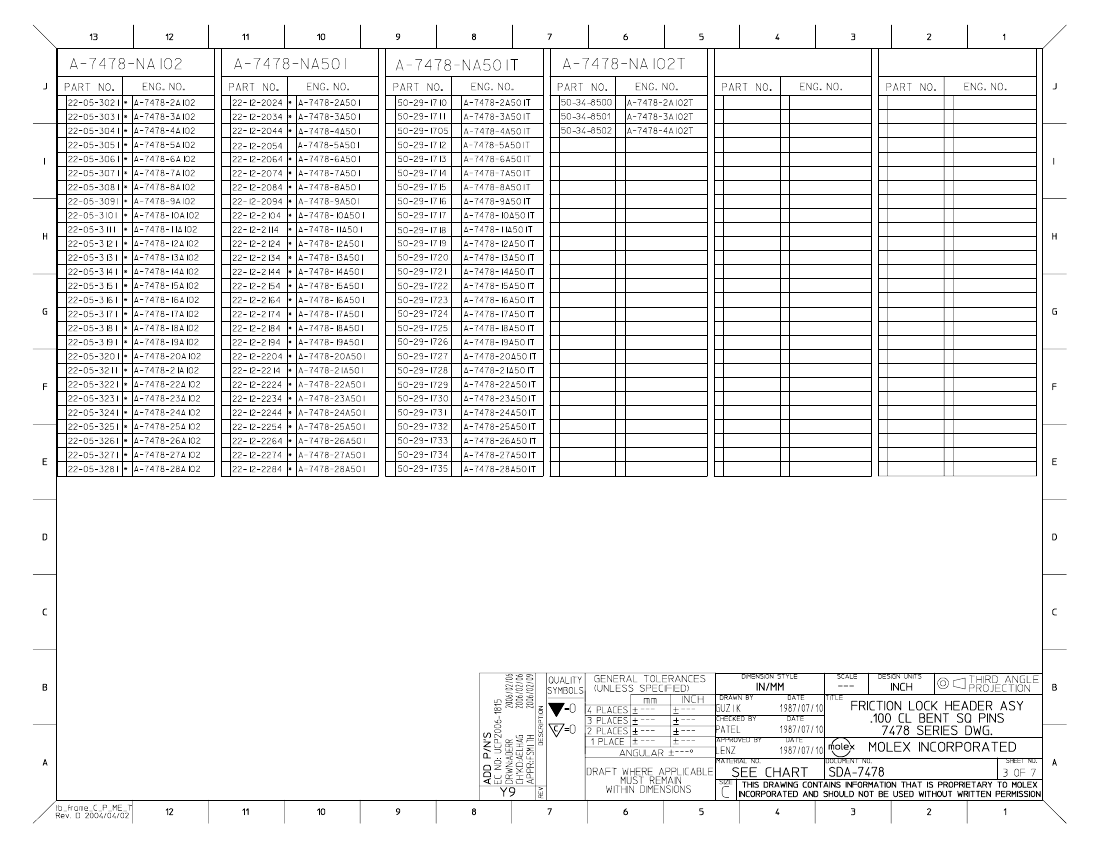

Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
7478
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
23
23
Natural (White)
25
94V-0
No
Yes
Brass
Tin
Nylon
1
Right Angle
0.141 In
3.58 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
Yes
Yes
Partial
Yes
0°C to +75°C
Through Hole
Search Parts in this Series
7478Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
5
Wave Capable (TH only)
1
