50700020213F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 50700020213F

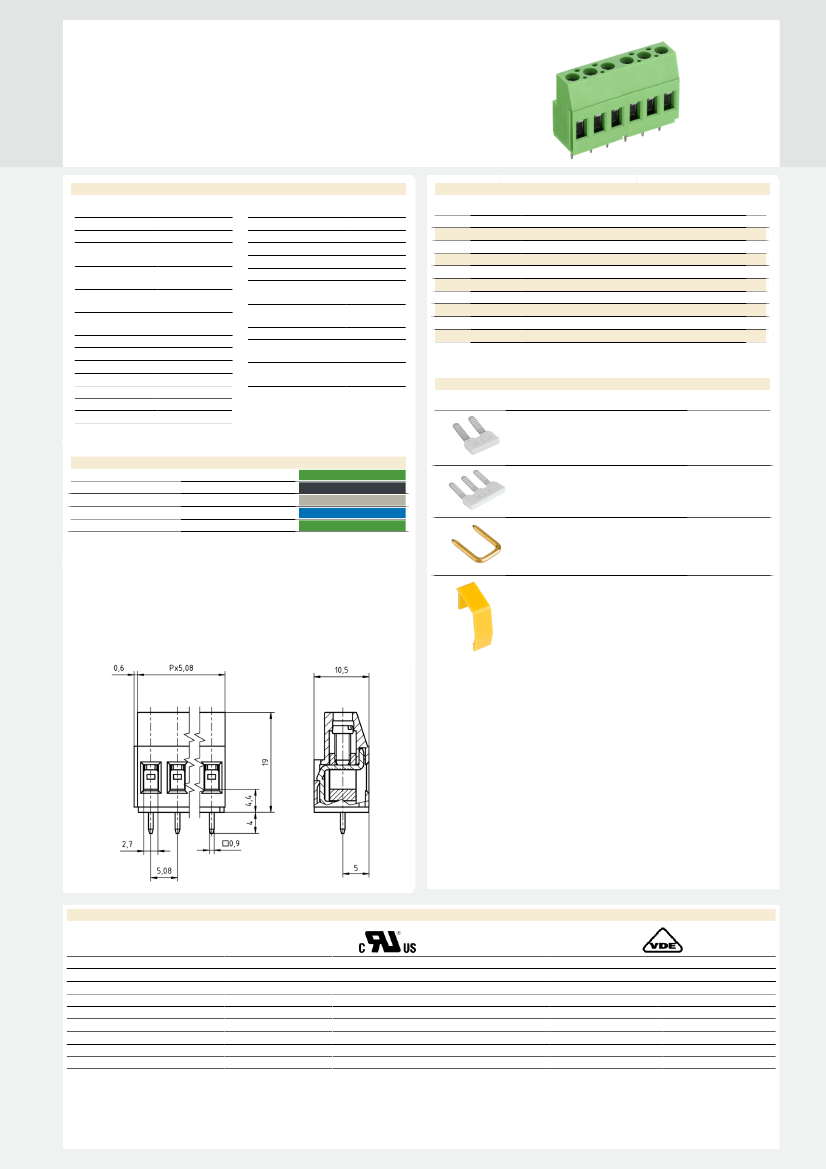

50700020213F: DescriptionBarrier Strip Terminal Block; CategoryThe connector; File Size300KB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

50700020213F Overview

Barrier Strip Terminal Block

50700020213F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Lift |

Spacing 5.08 mm

AKZ700/..-5.08-V-GREEN

Technical Data

Wire Sizes

Solid min

solid max

Stranded (flexible)

min

Stranded (flexible)

max

0.2 mm²

4.0 mm²

0.2 mm²

2.5 mm²

Insulating Material

Material

Flammability Class

Temperatures

Operating Temperature

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Leere Zeile

265 °C

3-4 s

-30 °C - 105 °C

PA 6.6

UL 94 V-0

Order Data (Spacing mm)

Poles

Width (mm)

10.76

15.84

20.92

26.00

31.08

36.16

41.24

46.32

51.40

56.48

61.56

Article Designation

AKZ700/2-5.08-V-GREEN

AKZ700/3-5.08-V-GREEN

AKZ700/4-5.08-V-GREEN

AKZ700/5-5.08-V-GREEN

AKZ700/6-5.08-V-GREEN

AKZ700/7-5.08-V-GREEN

AKZ700/8-5.08-V-GREEN

AKZ700/9-5.08-V-GREEN

AKZ700/10-5.08-V-GREEN

AKZ700/11-5.08-V-GREEN

AKZ700/12-5.08-V-GREEN

Article Number

50700020213F

50700030213F

50700040213F

50700050213F

50700060213E

50700070213E

50700080213E

50700090213E

50700100213D

50700110213D

50700120213D

200

100

Stranded with Ferrule 0.25 mm²

min

Stranded with Ferrule 2.5 mm²

max

Dimensions

Stripped Length

PCB Hole Diameter

Materials

Clamp

Screw

Solder Tag

Brass

Steel

Copper Alloy

8.0 mm

1.3 mm

Accessories

Figure

Designation

Bridge, 2-pole, insulated, BRI/2-5.0/5.08-

LIGHT GREY

Article Number

50000000006

Colours

GREEN

GREY

PEBBLE GREY

BLUE

LIGHT GREEN

RAL6018

RAL7016

RAL7032

RAL5015

similar RAL 6018

RAL6018

Bridge, 3-pole, insulated, BRI/3-5.0/5.08-

LIGHT GREY

50000000007

RAL7016

RAL7032

RAL5015

similar RAL 6018

Bridge, 2-pole, BR/2-5.0/5.08-L7.0

50000000008

Colours according to RAL, there may be variations on colour due to production conditions.

Special colours on request.

Screw cover SC-AK700-YELLOW

50700000004

Ratings

Usegroup

Rated Voltage

Rated Current

Rated Wire Size

solid

stranded

Torque

Screw Size

Test Voltage

300 V

20 A

AWG 30-12

0.45 Nm

1.6 kV

300 V

10 A

AWG 30-12

0.45 Nm

1.6 kV

min

0.5 mm²

250 V

24 A

max

4.0 mm²

2.5 mm²

0.50 Nm

2.0 kV
