09-07-0089 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09-07-0089

09-07-0089: Description3.96mm; CategoryThe connector The connector; File Size212KB，14 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

09-07-0089 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09-07-0089	-	-	View	Buy Now

09-07-0089 Overview

3.96mm

09-07-0089 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	TRIFURCON, POLARIZED
body width	0.37 inch
subject depth	0.685 inch
body length	1.266 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN (200) OVER COPPER (100)
Contact completed and terminated	TIN (200) OVER COPPER (100)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	2000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	11.12 N
Minimum insulation diameter	0.045 inch
Insulation resistance	200000000 Ω
Insulator color	YELLOW
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	7674
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-2
Maximum wire diameter	18 AWG
Minimum wire diameter	18 AWG
Evacuation force-minimum value	5.3376 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0009070089

Active

3.96mm (.156") KK® IDT Trifurcon™ Contact, 8 Circuits, Tin (Sn), Feed-Through, 18

Solid or Fused Stranded, Yellow ID Strip

Documents:

3D Model

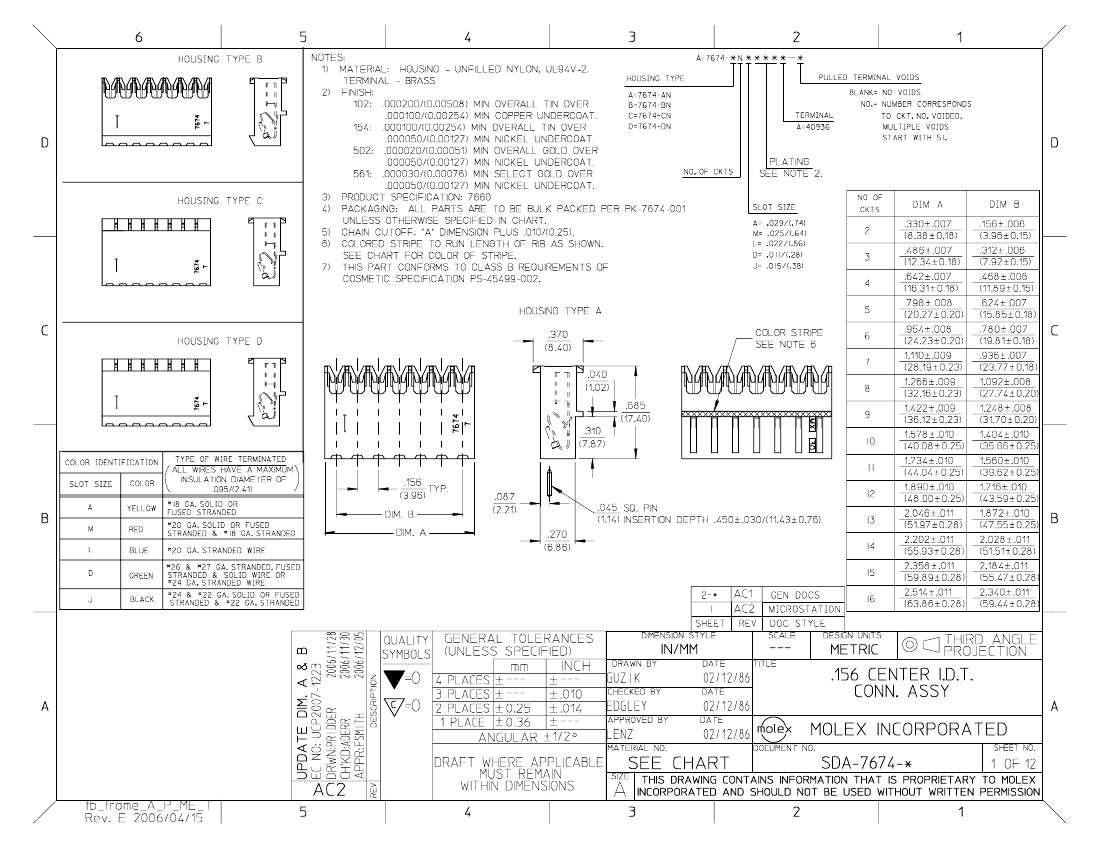

Drawing (PDF)

Product Specification PS-7660 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

IDT and Solder Connectors

7674

Trifurcon™ contact

Yes

KK®, Trifurcon™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

Physical

Circuits (Loaded)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

Female

None

Brass

Tin

Nylon

Bag

0.156 In

3.96 mm

200

0°C to +75°C

IDT or Pierce

18 Solid, 18 Stranded Topcoat

Search Parts in this Series

7674Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Tool for

0638133503

3.96mm (.156") Pitch

KK® IDT Crimp

Terminals

IDT - Manual Press 0011200314

For Ribbon Cable

IDT - Semi-automatic 0011200418

- Bench-Top

Terminator

IDT - Manual -

0011215196

Handtool

IDT Manual Handtool0621000400

Electrical

Voltage - Maximum

250V

Material Info

Old Part Number

A-7674-A08A102A

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-7674-001

PS-7660

SDA-7674-*

09-07-0089 Related Products

	09-07-0089	A-7674-A08A102A
Description	3.96mm	3.96mm
