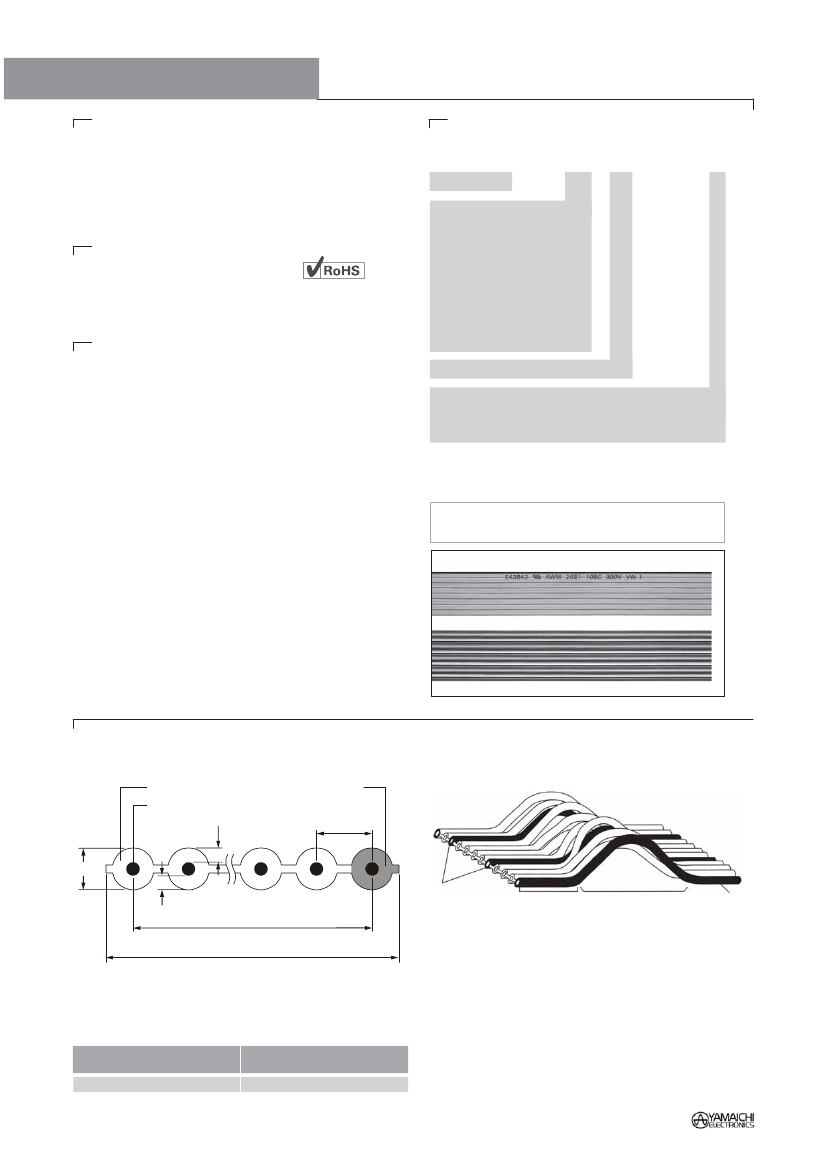

Flat Cables
Specifications
Conductor Resistance:
Insulation Resistance:
Dielectric Strength:
Flame Resistance:
222Ω/km max.
10MΩ min. (km)
2,000V AC / minute
VW-1
50MIL
(1.27mm)
OKIFLEX-S Type
(300V, 105°C)
Part Number
(Details)
FLEX
Cable Series
Colour Arrangement:
S4 = 10 colours repeated
brown, red, orange,
yellow, green, blue,
violet, grey, white,
black
S = Grey colour with a red
edge for polarity and
coloured green every
fifth conductor
Number of Conductors
Interval Style:
3030 = 30mm Unbonded / 30mm Bonded
7030 = 70mm Unbonded / 30mm Bonded
-
S*
** - 7/0.127 *
Materials and Finish
Insulation: PVC
Conductor: 28 AWG (7/0.127mm) stranded copper wire
Features
Identical to 50 MIL (1.27 mm) OKIFLEX-B type except that
it is intermittently bonded or unbonded at precise intervals
Greater cable flexibility is achieved within the unbonded
section
UL Style No. 2651
Standard Cable Length
61 meters per reel
Colour Arrangement S
Colour Arrangement S4
Cable Dimensions
Insulation
Conductor
Min 0.16
Red Edge
1.27
0.98
Green
Min 0.16
(Number of conductors –1) x 1.27
Number of conductors x 1.27
Bonded
(30mm)
Unbonded
(30mm / 70mm)
Red edge
Other versions from 8 to 64 conductors available on request,
minimum order quatity may be required
Part Number
FLEX-S4 16-7/0.127 (3030)
FLEX-S4 20-7/0.127 (3030)
Sockets and Connectors
No. of Conductors
16
20
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
