39-31-4068 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-31-4068

39-31-4068: Description6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size213KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-31-4068 Overview

6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

39-31-4068 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Board mount options	HOLE .125-.137
body width	0.449 inch
subject depth	0.764 inch
body length	0.937 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	100u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	8 A
Guideline	CSA,TUV,UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.973 N
Base Number Matches	1

Preview

Download Datasheet

View All

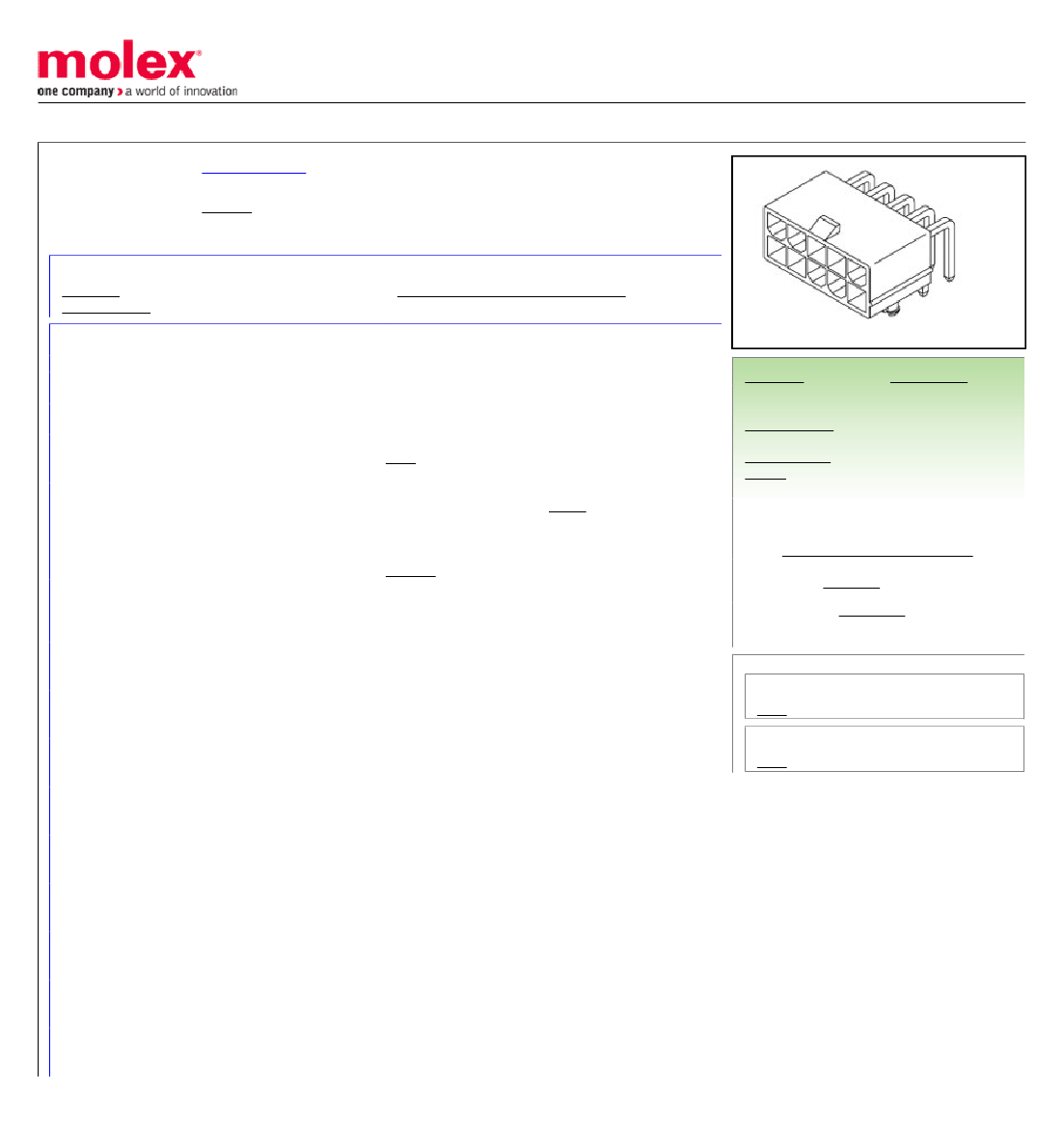

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039314068

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with PCB Mounting

Flanges, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) over Nickel (Ni)

Documents:

3D Model

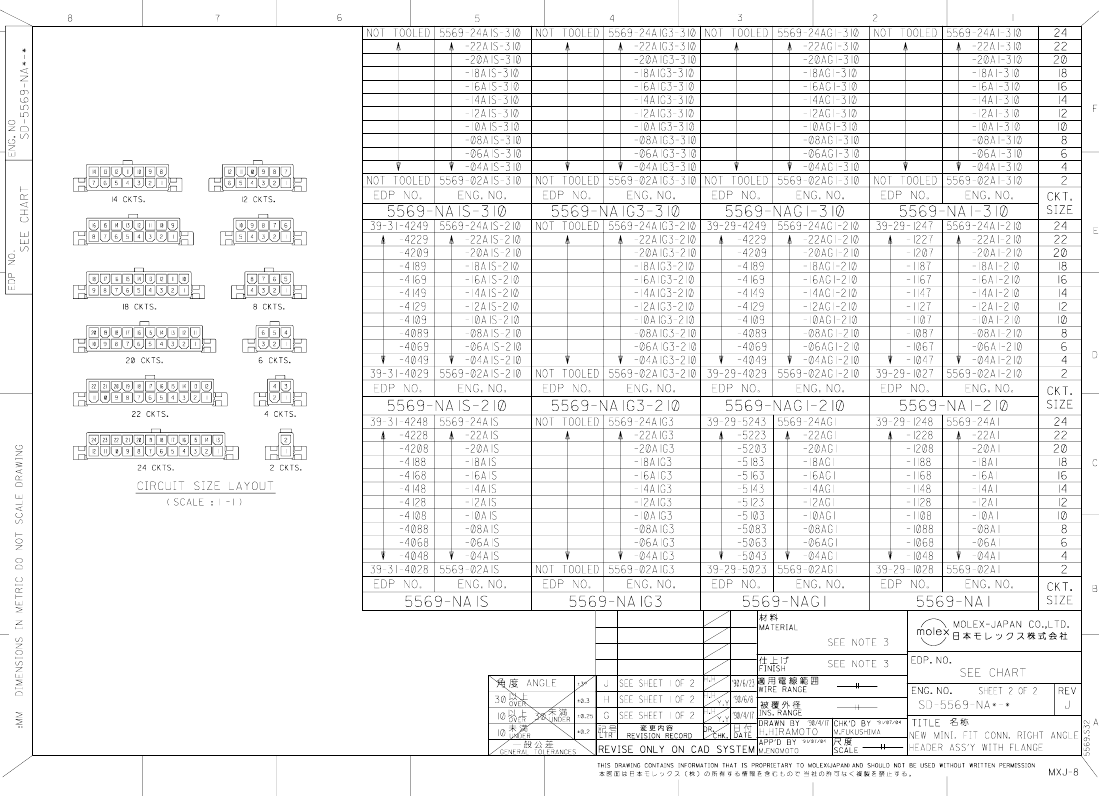

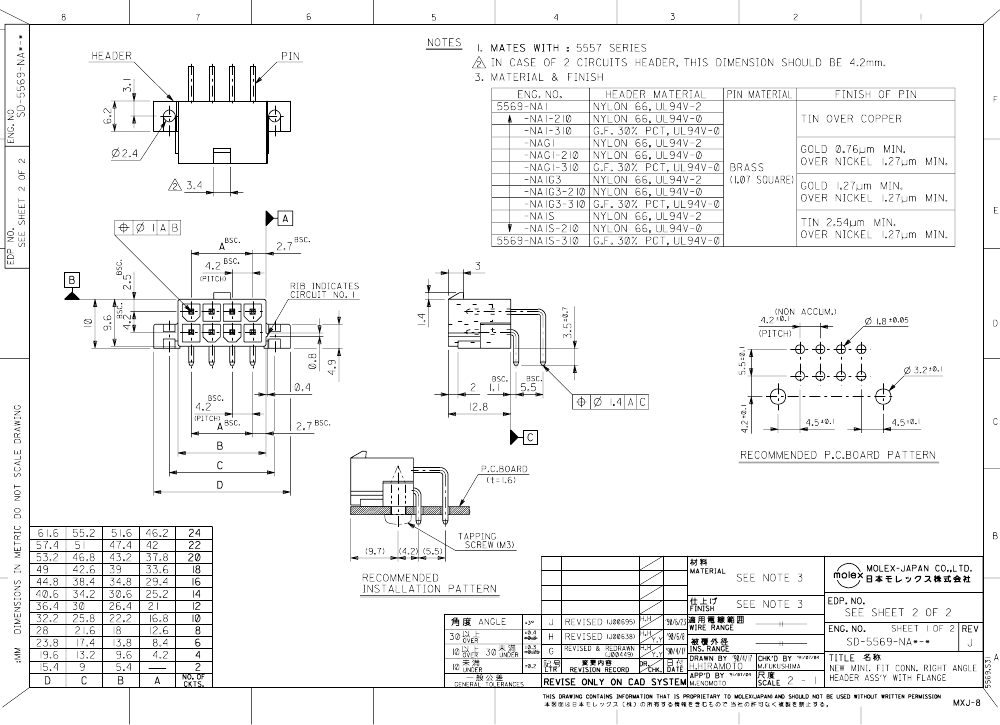

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

PCB Headers

5569

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex Product specification PS-5556-001 for additional

current de-rating information.

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Natural

94V-2

None

Yes

Brass

Tin

Nickel

Nylon

Right Angle

0.142 In

3.60 mm

Yes

0.070 In

1.78 mm

Bag

0.165 In

4.20 mm

0.165 In

Search Parts in this Series

5569Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

39-31-4068 Related Products

	39-31-4068	5569-06A1S	0039314068
Description	6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
Reach Compliance Code	compli	-	compliant
Connector type	RECTANGULAR POWER CONNECTOR	-	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN	-	NOT SPECIFIED
Contact completed and terminated	Nickel (Ni)	-	NICKEL
Contact point gender	MALE	-	MALE
Contact material	BRASS	-	NOT SPECIFIED
DIN compliance	NO	-	NO
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation type	BOARD AND PANEL	-	BOARD
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell material	POLYAMIDE66	-	POLYAMIDE
Termination type	SOLDER	-	SOLDER
Total number of contacts	6	-	6
UL Flammability Code	94V-0	-	94V-2
Base Number Matches	1	-	1
