394210010

Description
3.96mm (.156
File Size121KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

394210010 Overview

3.96mm (.156

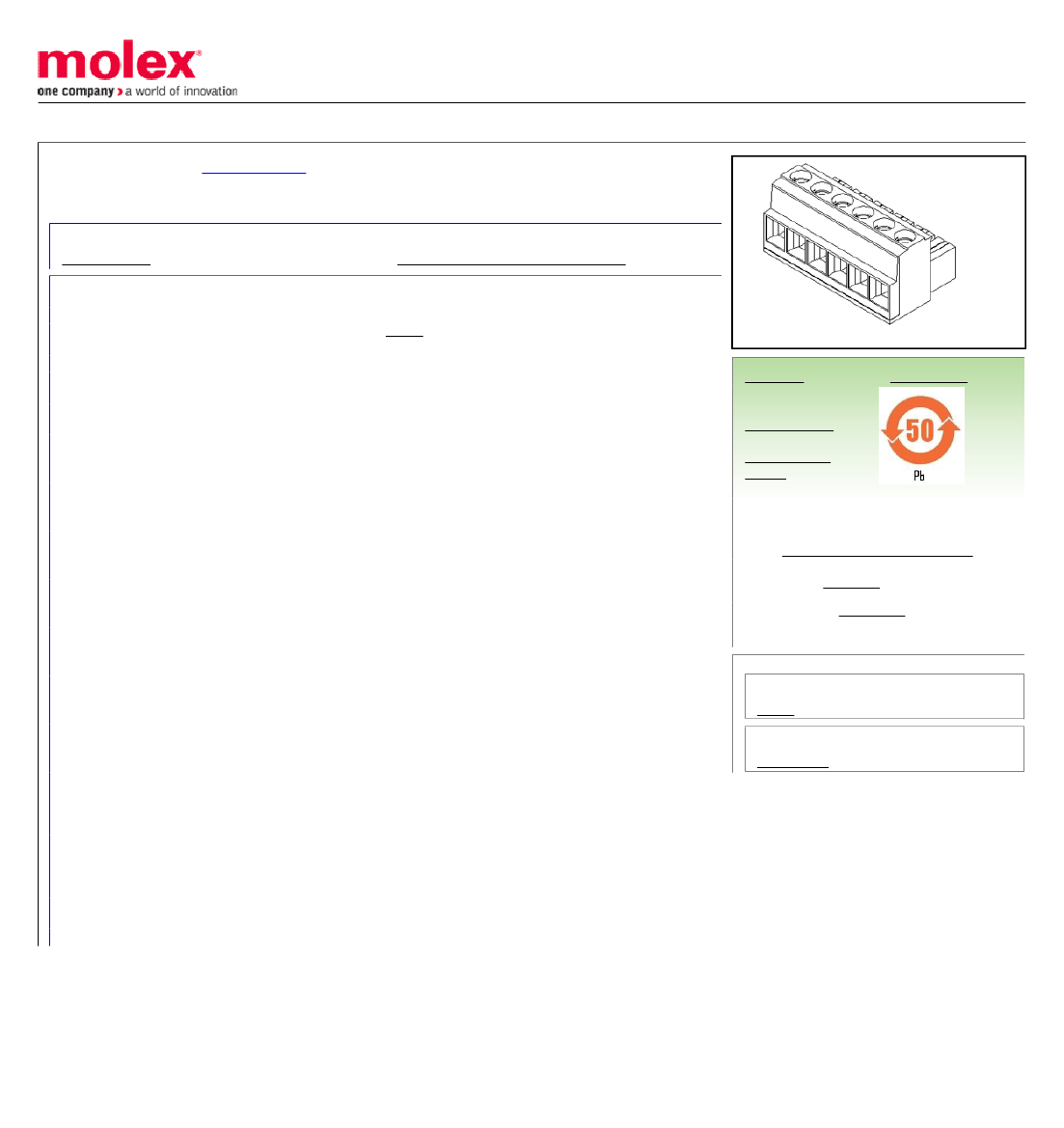

This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:

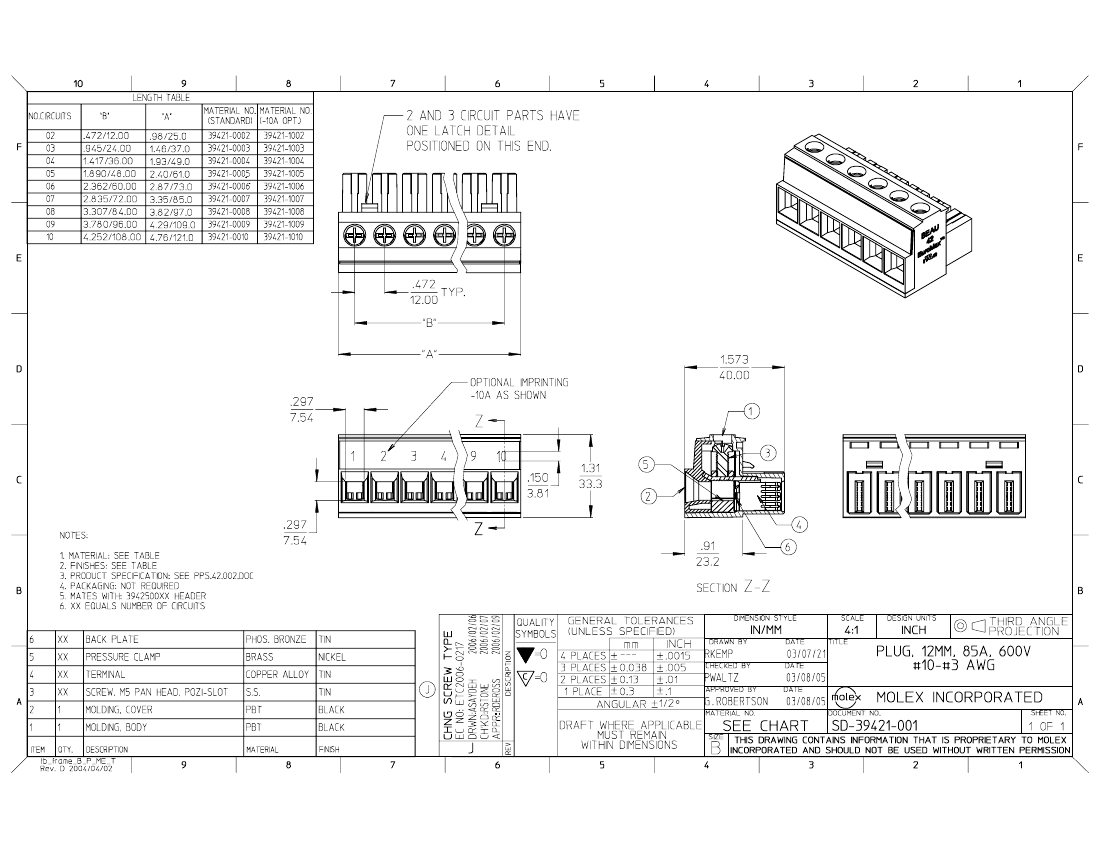

Drawing (PDF)
0394210010
Active
12.00mm (.472") Pitch Beau™ EuroMax™ Horizontal Plug, 10 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39421
Wire-to-Board
Plug
EuroMax™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
10
Black
180° Angle
Yes
Brass
Tin
Tin
Polyester
1
Horizontal
N/A
No
0.472 In
12.00 mm
150
3.75
150
3.75
Yes
No
130°C
10, 12, 14, 3, 4, 6, 8
Search Parts in this Series
39421Series
Mates With
39425-0010 Horizontal PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
85A
600V
Material Info
Old Part Number
420510
Reference - Drawing Numbers
Sales Drawing
SD-39421-001
