015-47-4083 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 015-47-4083

015-47-4083: Description8 CONTACT(S), FEMALE, FFC/FPC CONNECTOR; CategoryThe connector The connector; File Size144KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

015-47-4083 Overview

8 CONTACT(S), FEMALE, FFC/FPC CONNECTOR

015-47-4083 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.139 inch
subject depth	0.6 inch
body length	0.799 inch
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

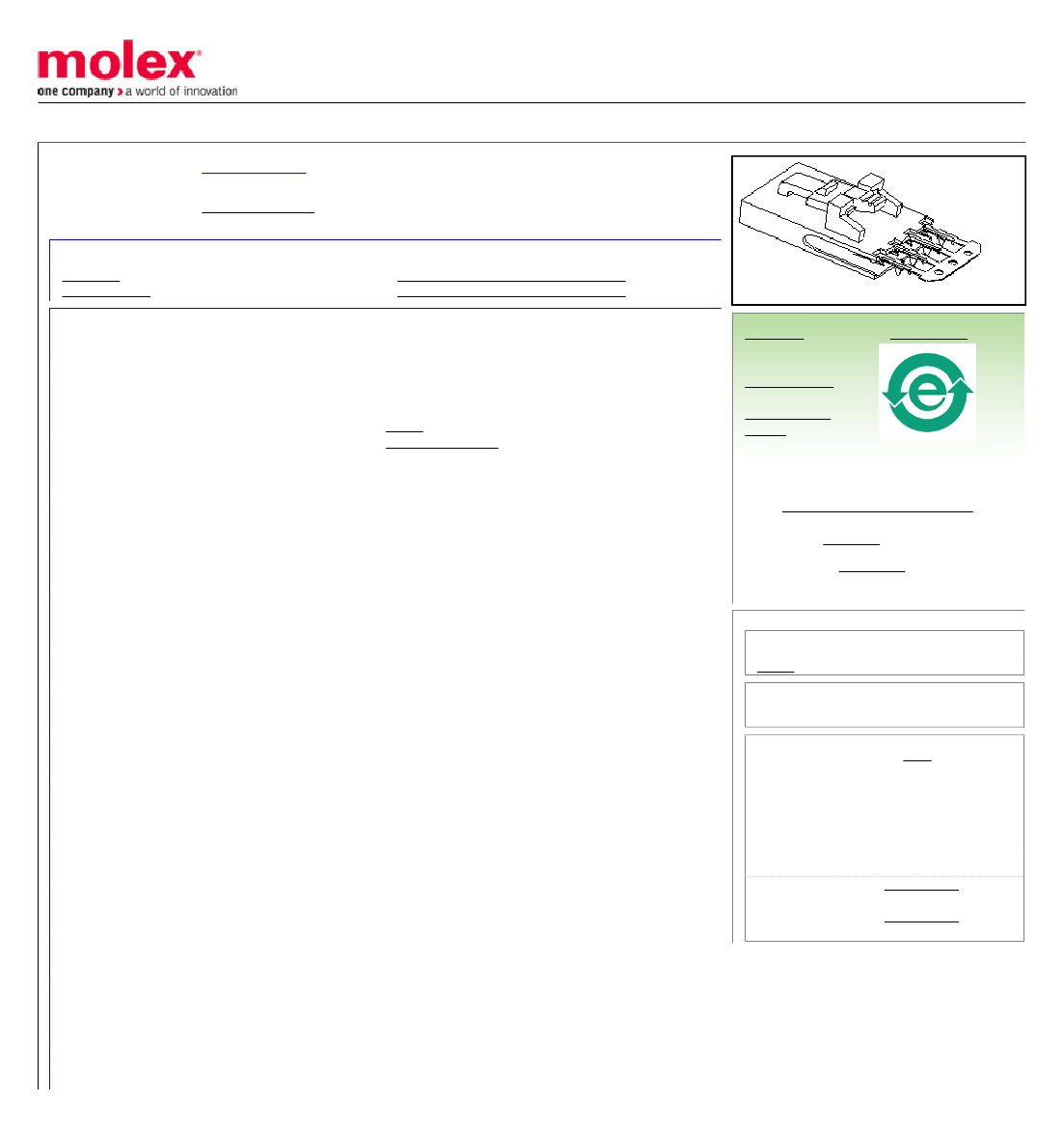

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

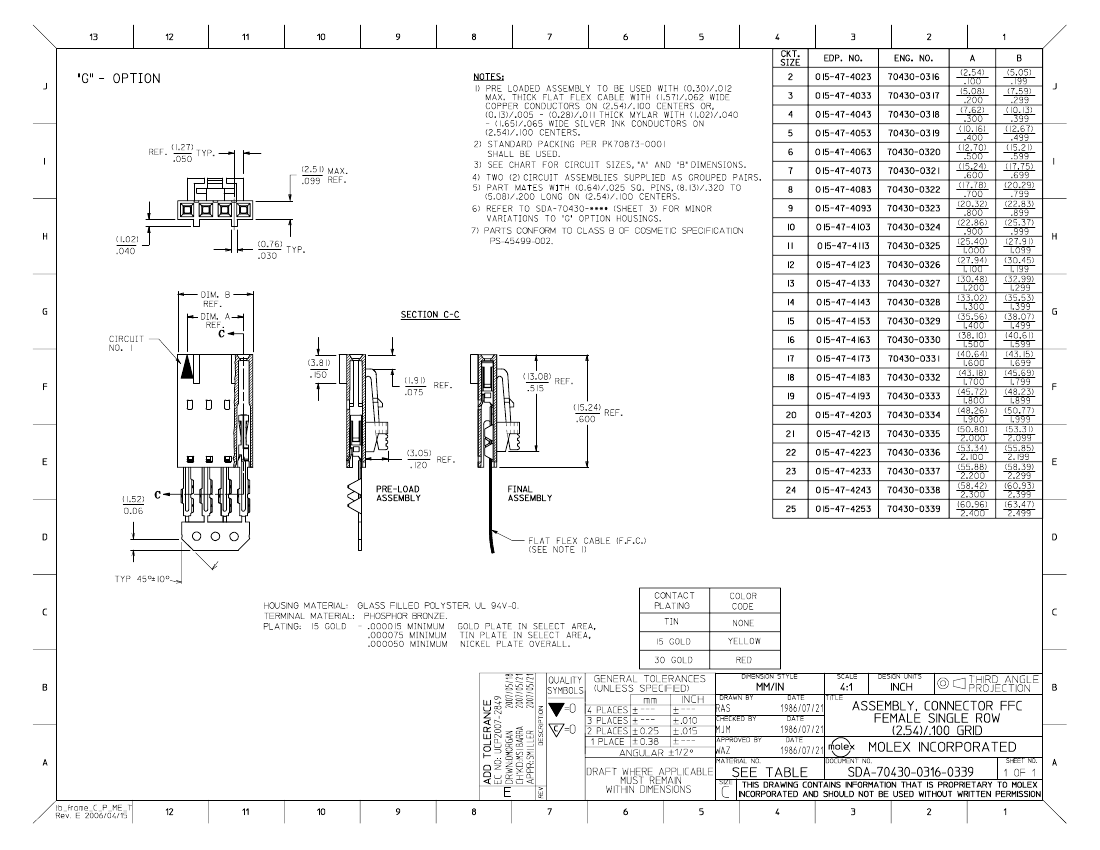

Drawing (PDF)

0015474083

Active

cgrid__sl_products

2.54mm (.100") C-Grid SL™ Single Row, Female, Version G Receptacle, 8 Circuits

Product Specification PS-70430 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19880

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

70430

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black

N/A

Vertical

94V-0

Phosphor Bronze

Gold

Tin

Polyester Alloy

Vertical

0.130 In

3.30 mm

None

0.062 In, 0.093 In

1.60 mm, 2.40 mm

Tube

0.100 In

2.54 mm

0.100 In

2.54 mm

0.375

1.875

N/A

Yes

-40°C to +105°C

IDT or Pierce

FFC/FPC

Search Parts in this Series

70430Series

Mates With

C-Grid® locking headers and panel mounts

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Tool Kit for Standard 0622007400

Manual Press FFC

Standard Manual

0622007800

Press for FFC

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 2A

250V

Material Info

015-47-4083 Related Products

	015-47-4083	A-70430-0322	0015474083
Description	8 CONTACT(S), FEMALE, FFC/FPC CONNECTOR	8 CONTACT(S), FEMALE, FFC/FPC CONNECTOR	8 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
Is Samacsys	N	-	N
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	-	GOLD
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	-	TIN
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	PHOSPHOR BRONZE
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
JESD-609 code	e4	-	e3
MIL compliance	NO	-	NO
Mixed contacts	NO	-	NO
Installation type	CABLE	-	CABLE
Number of rows loaded	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Termination type	IDC	-	IDC
Total number of contacts	8	-	8
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
