387006315 Overview

8.26mm

387006315 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Manufacturer's serial number38700
Installation typeBOARD
Number of layers1
Rows1
Number of channels15
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1

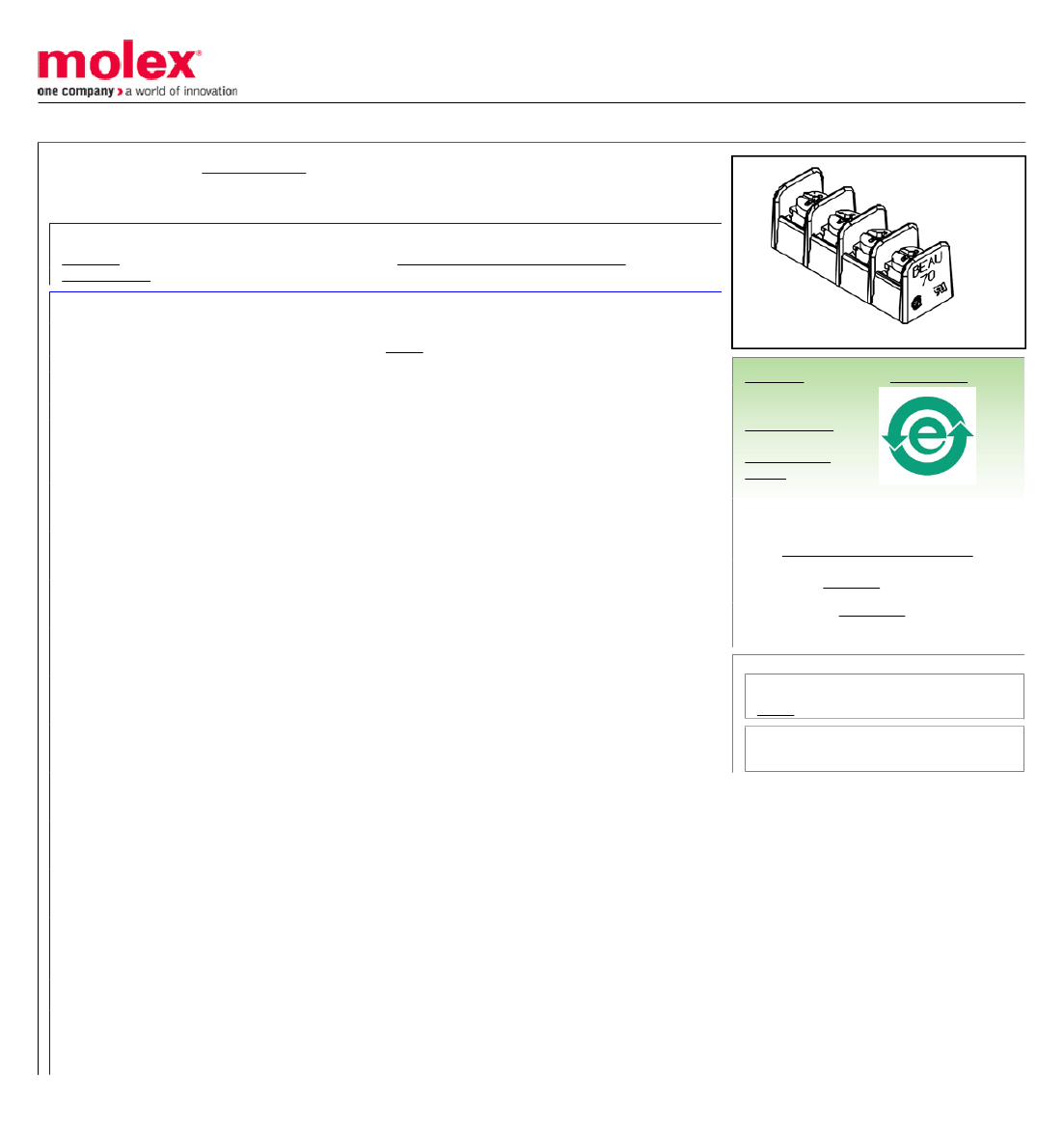

This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0387006315
Active
8.26mm (.325") Pitch Beau™ PCB Terminal Strip, without Mounting Ends, 15 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
38700
Wire-to-Board
One Piece
Fixed Mount Barrier
Barrier Strip
image - Reference only
Series
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
15
15
Horizontal
None
Brass
Tin
Tin
1
Horizontal
0.140 In
3.56 mm
None
No
0.325 In
8.26 mm
0.325 In
8.25 mm
150
3.75
150
3.75
No
Dual-Barrier
Yes
No
-40°C to +130°C
Through Hole
14, 16, 18, 20, 22
0.50 - 1.50
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
38700Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
70515-C
Reference - Drawing Numbers
Sales Drawing
SD-38700-001

387006315 Related Products

387006315 70515-C
Description 8.26mm 8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 15 circuits
Reach Compliance Code compli unknow
ECCN code EAR99 EAR99
Other features THERMOPLASTIC PLASTIC, 94V-0
Fastening method SCREW SCREW
Manufacturer's serial number 38700 70
Installation type BOARD BOARD
Number of layers 1 1
Rows 1 1
Number of channels 15 15
safety certificate UL; CSA UL; CSA
Terminal and terminal strip types BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK
Base Number Matches 1 1
