39-03-6012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-03-6012

39-03-6012: Description2.36mm; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-03-6012 Overview

2.36mm

39-03-6012 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex STANDARD .093 Series 1 Way 1 Row Male Straight PCB Housing 3191
body width	0.321 inch
subject depth	1.187 inch
body length	0.321 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P1
Contact point gender	MALE
insulator material	NYLON
Manufacturer's serial number	3191
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

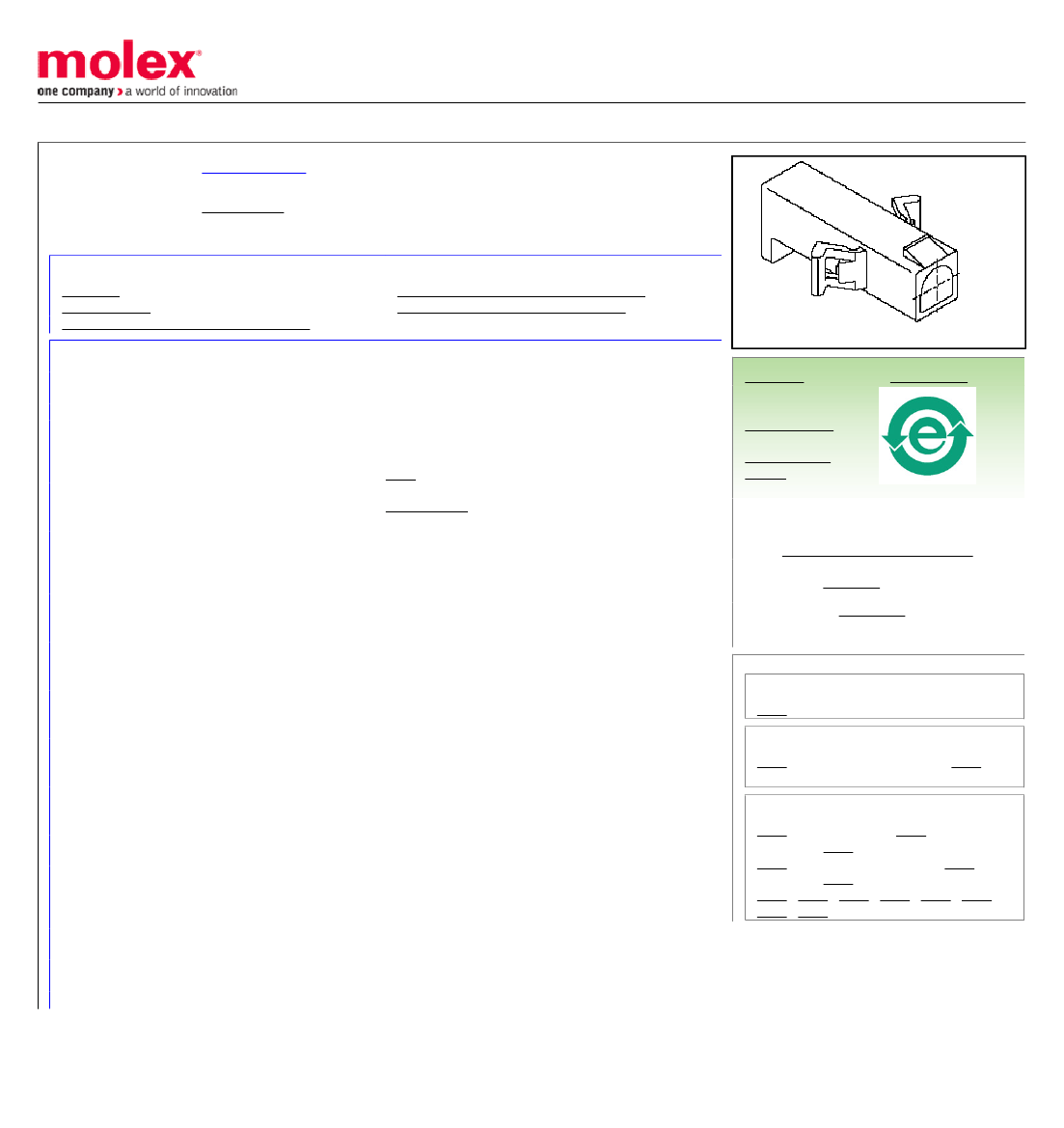

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039036012

Active

standard_093

2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing With Positive

Latch, UL 94V-2, 1 Circuit

Documents:

3D Model

Drawing (PDF)

Product Specification PS-3191-001 (PDF)

Product Specification PS-3191-005 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

3191

Polarized to Mating Part

standard_093

Standard .093"

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Dual

None

Yes

Nylon

Bag

0.264 In

6.71 mm

Yes

-40°C to +105°C

Search Parts in this Series

3191Series

Mates With

3191 Pin and Socket Recptacle, 5219

Vertical PCB Header

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1380 Male Crimp Terminals,

1381 Female Crimp Terminals, 1433 Crimp

Terminals, 1434 Male Crimp Terminals,

2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,

2871 , 4272 , Lin

Electrical

Current - Maximum per Contact

12A

Material Info

Old Part Number

3191-01P1

Reference - Drawing Numbers

Packaging Specification

Product Specification

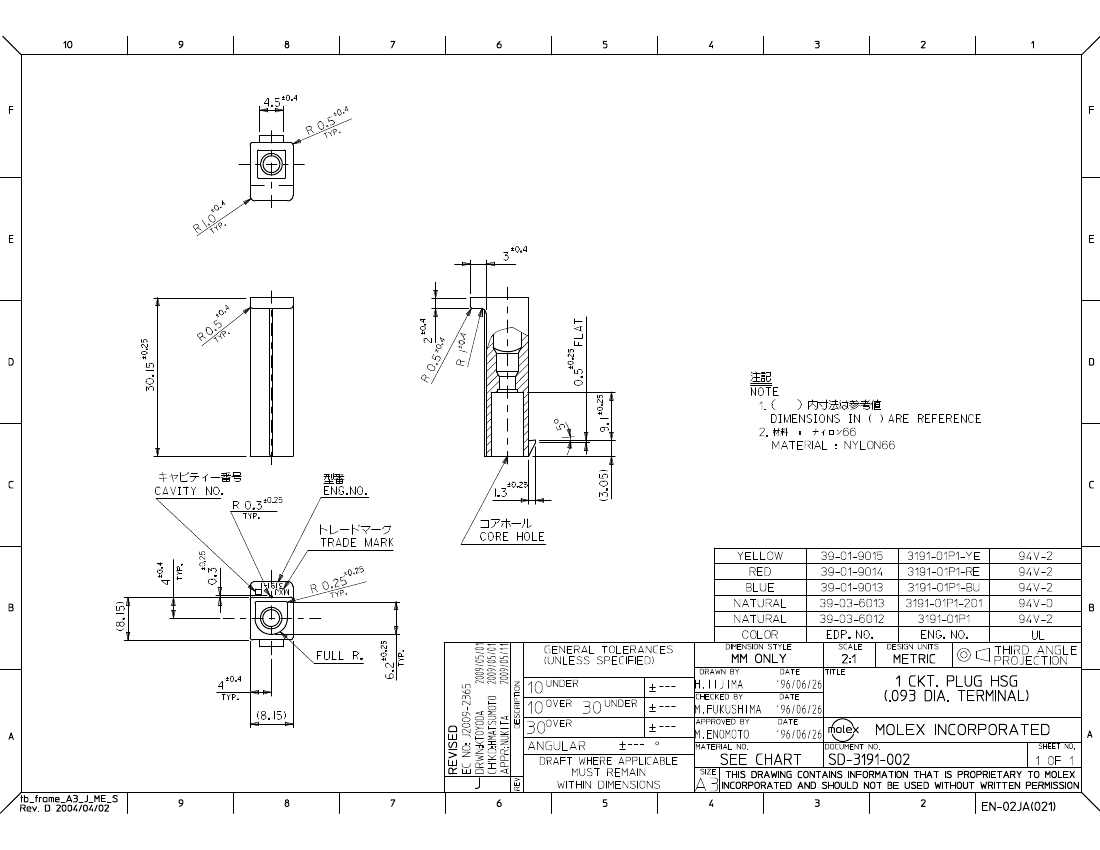

Sales Drawing

SPK-3191-001

PS-3191-001, PS-3191-005, RPS-3191-001

SD-3191-002

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

39-03-6012 Related Products

	39-03-6012	0039036012	3191-01P1
Description	2.36mm	2.36mm	2.36mm (.093") diameter Standard .093" pin and socket plug housing with positive latch, UL 94v-2, 1 circuit
Is it Rohs certified?	conform to	conform to	-
Maker	Molex	Molex	-
Reach Compliance Code	compliant	compli	-
Body/casing type	PLUG	PLUG	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact arrangement	S0P1	S0P1	-
Contact point gender	MALE	MALE/FEMALE	-
insulator material	NYLON	NYLON	-
Mixed contacts	YES	YES	-
Installation option 1	LOCKING	LOCKING	-
Installation type	CABLE	CABLE	-
Number of connectors	ONE	ONE	-
reliability	COMMERCIAL	COMMERCIAL	-
Termination type	CRIMP	CRIMP	-
Total number of contacts	1	1	-
