366480003 Overview

3 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0366480003
Active
mlx
2.13mm (.084") Diameter MLX™ Power Crimp Housing Plug, Nylon, 94V-2, 3 Circuit
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
General
Product Family
Series
Overview
Product Name
Crimp Housings
42021
mlx
MLX™
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
3
3
Black
94V-0
Male
No
None
Yes
Nylon
1
Bag
No
0.000 In
0.00 mm
Yes
No
-55°C to +105°C
Search Parts in this Series
42021Series
Mates With
42002 MLX™ Power Connector Header,
42022 MLX™ Pin and Socket Receptacle,
43255 MLX™ Power Connector Header
Use With
MLX Crimp Terminal 42023 , 42024
Electrical
Current - Maximum per Contact
13.5A
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

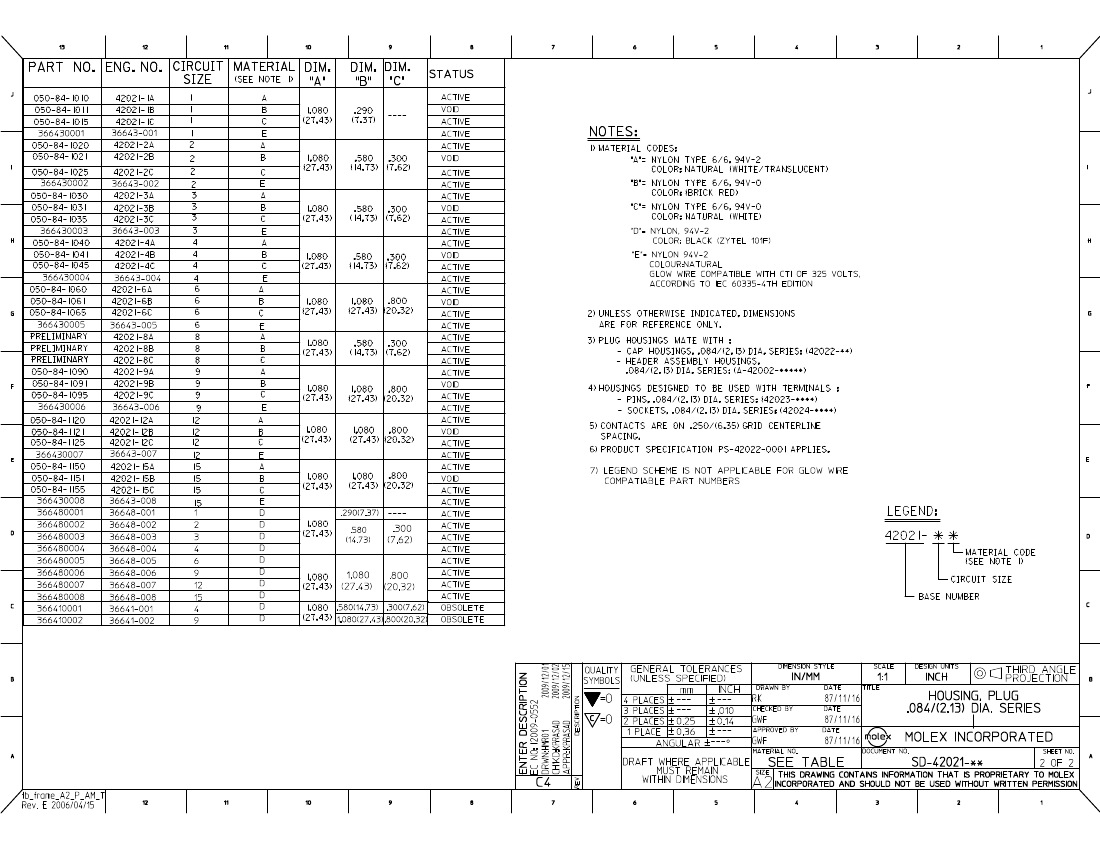

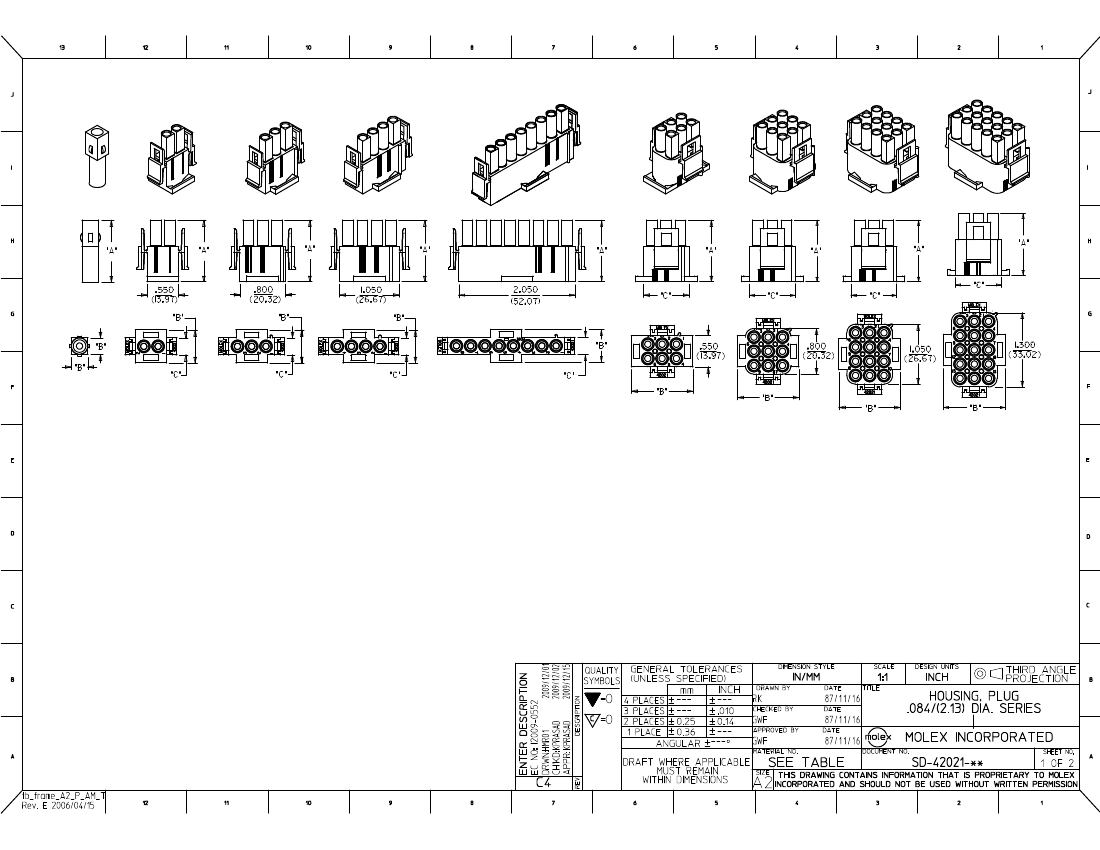

Sales Drawing
PK-42021-**
PS-42022-0001
SD-42021-**
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
