359780270 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 359780270

359780270: Description3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size102KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

359780270 Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

359780270 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35978
Plug information	35977-0400
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0359780270

Planned for Obsolescence

3.96mm (.156") Pitch Wire-to-Board Header, Vertical, Low Profile, 3 Circuits, 4 Postions

with Pin 2 Voided, Natural, Nylon

Documents:

3D Model

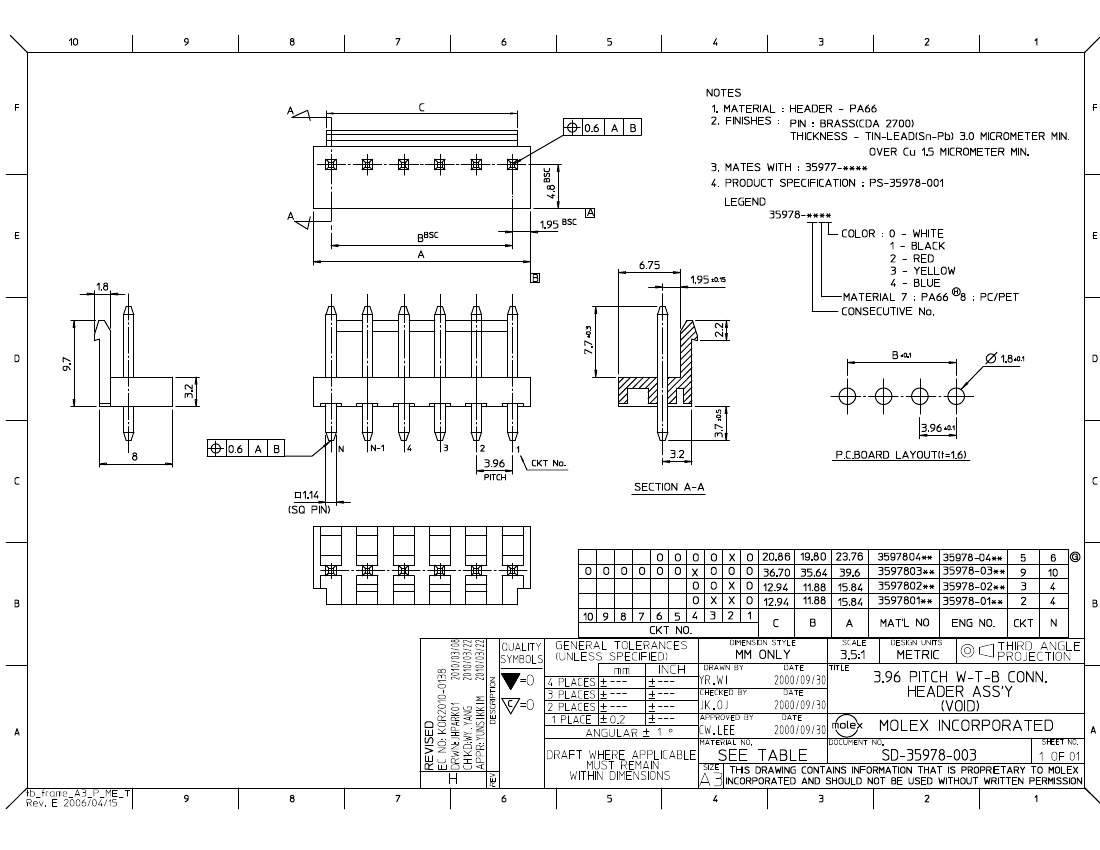

Drawing (PDF)

Product Specification PS-35978-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72090224

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Product Name

PCB Headers

35978

Wire-to-Board

MV-396™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Brass

Tin-Lead

Nylon

Vertical

0.146 In

3.70 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.156 In

3.96 mm

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

35978Series

Mates With

35977 Wire-to-Board Housing
