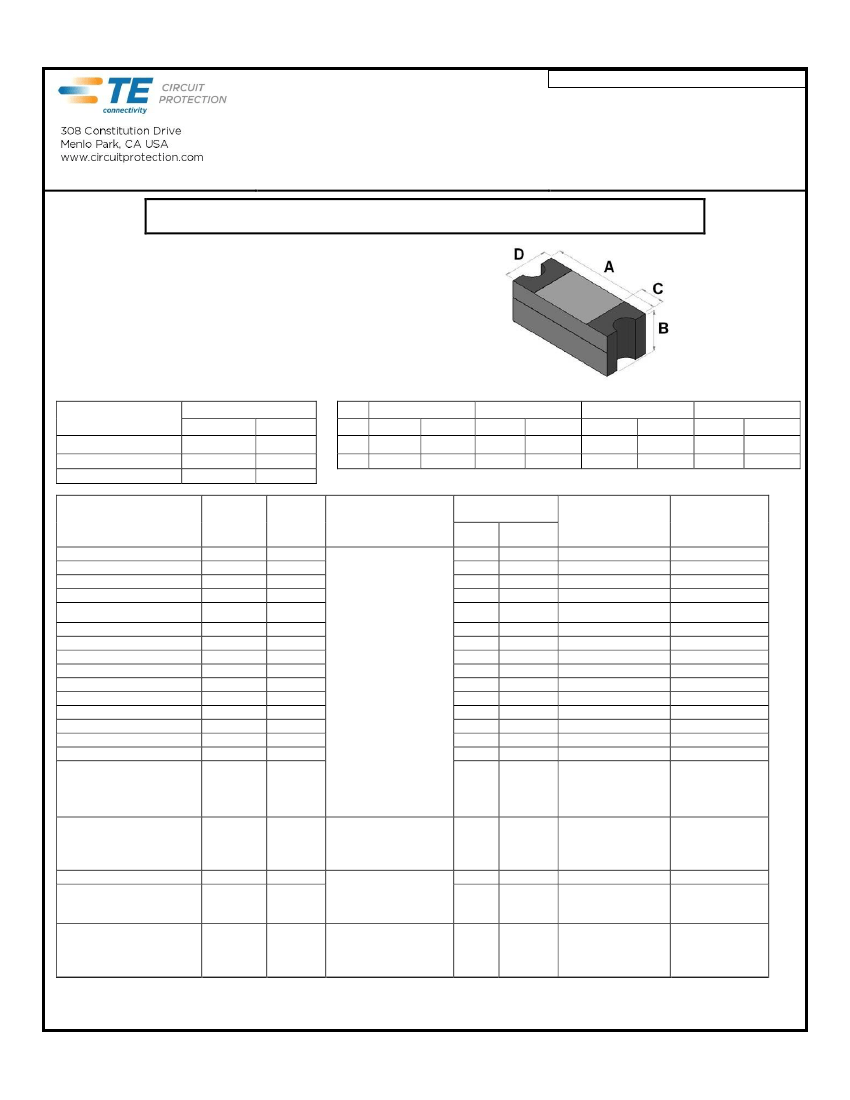

Surface Mount Fuse
Very Fast Acting
PRODUCT: 2410SFV Family (Marked)
DOCUMENT: SCD27651
REV LETTER: F
REV DATE: JANUARY 11, 2013
PAGE NO.: 1 OF 7
Specification Status:
Released
Termination Material: Copper, Ni, Tin
Fuse Element: Copper/Copper alloy
Body Material: Fiberglass/Epoxy
Operating Temperature：
-55
°C
to +125
°C
(with de-rating)

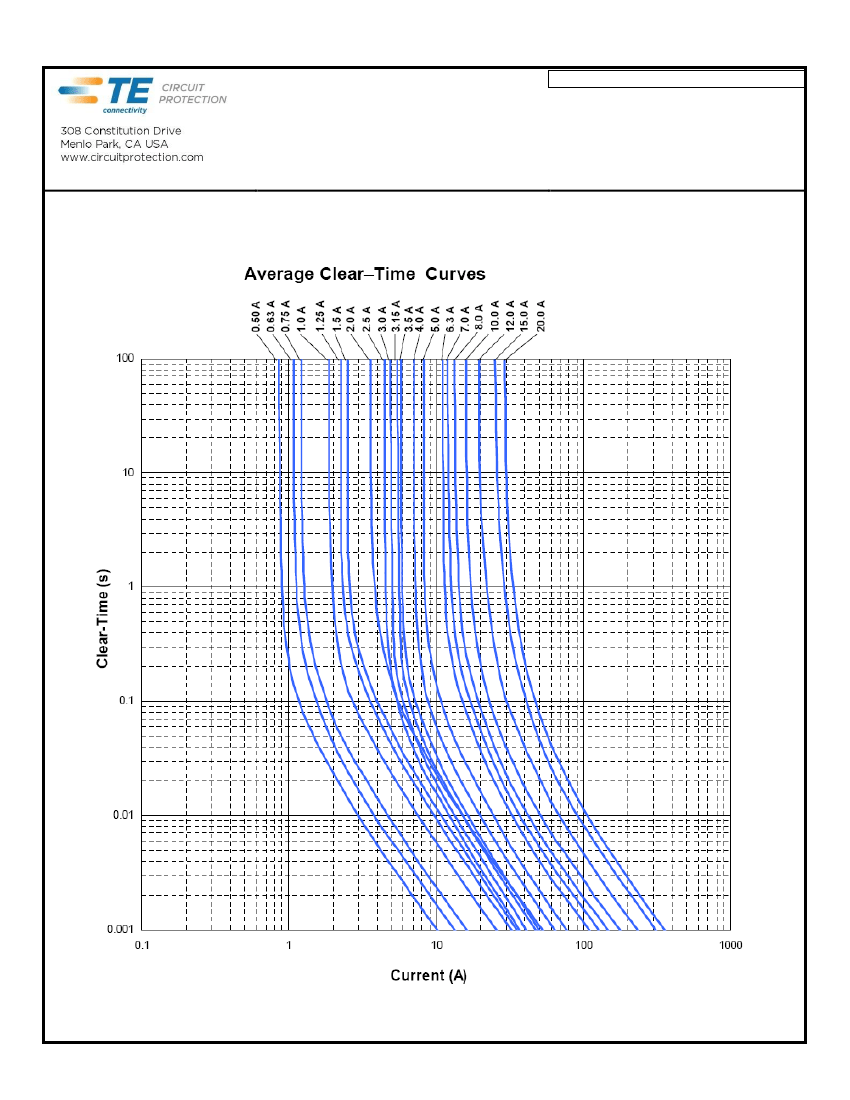

Clear Time Characteristics
% of current rating
100%
200% (0.5A-10.0A)
200% (12.0A-20.0A)
Clear time at 25°C
Min.
Max.
4 hours
0.01 sec
5 sec
0.01 sec
20 sec
Marking
Code
C
S
D
E
F
G
I
J
K
V
L
M
N
O
P
R
Rated
Current
(A)
0.50
0.63
0.75
1.00
1.25
1.50
2.00
2.50
3.00
3.15
3.50
4.00
5.00
6.30
7.00
8.00
A
MIN
mm
5.95
in (0.234)
Dimensions
B
MAX
MIN
6.25
1.96
(0.246) (0.077)
MAX
2.36
(0.093)
MIN
0.97
(0.038)
C
MAX
1.73
(0.068)
MIN
2.34
(0.092)
D
MAX
2.64
(0.104)
Part Number
2410SFV0.50FM/125
2410SFV0.63FM/125
2410SFV0.75FM/125
2410SFV1.00FM/125
2410SFV1.25FM/125
2410SFV1.50FM/125
2410SFV2.00FM/125
2410SFV2.50FM/125
2410SFV3.00FM/125
2410SFV3.15FM/125
2410SFV3.50FM/125
2410SFV4.00FM/125
2410SFV5.00FM/125
2410SFV6.30FM/125
2410SFV7.00FM/125
2410SFV8.00FM/125
Interrupt Rating
UL:
0.5~2A
100A @250V
AC
2.5~8A
50A @ 125V
AC
0.5~8A
50A @ 125V
DC
300A @ 32V
DC
TUV:
0.5~2A
100A @250V
AC
50A @125V
DC
CQC:
0.5A、1A、2A
100A @250V
AC
50A @125V
DC
Voltage Rating
(V)
AC
250
250
250
250
250
250
250
125
125
125
125
125
125
125
125
125
DC
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
Nominal Cold DC
Resistance
(DCR) (Ω)*
0.2310
0.1740
0.1480
0.0930
0.0700
0.0620
0.0420
0.0310
0.0249
0.0232
0.0220
0.0172
0.0143
0.0100
0.0094
0.0086
Nominal I t
2 2
(A s)
0.1
0.16
0.23
0.59
0.96
1.19
2.75
1.21
1.73
2.2
2.5
4.1
5.9
12.5
14.2
20.3
2
UL:
35A@125V
AC
2410SFV10.0FM/125
Q
10.00
50A @ 125V
DC
300A @ 32V
DC
2410SFV12.0FM/065
X
12.00
UL:
50A @ 65V
AC
50A @ 65V
DC
2410SFV15.0FM/065
Y
15.00
300A @ 32V
DC
UL:
50A @ 65V
AC
2410SFV20.0FM/065
Z
20.00
100A @ 65V
DC
300A @ 32V
DC
* Measured at ≤10% of rated current and 25°C
ambient
125
65
65
125
65
65
0.0066
0.0053
0.0038
29.2
49.2
102.5
65
65
0.0034
126.2

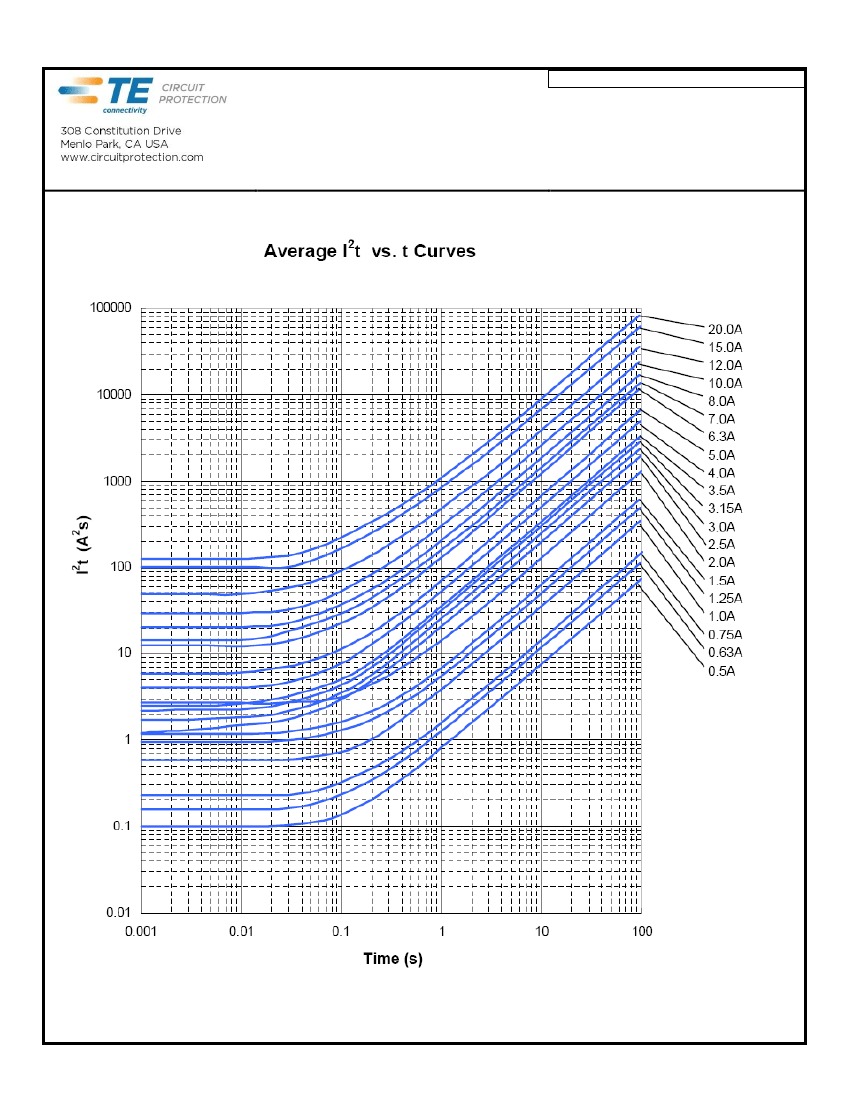

Surface Mount Fuse
Very Fast Acting
PRODUCT: 2410SFV Family (Marked)
DOCUMENT: SCD27651
REV LETTER: F
REV DATE: JANUARY 11, 2013
PAGE NO.: 4 OF 7
Product Characteristics for 2410 Devices
Reliability Test
Reflow & Bend
Solderability
Soldering Heat Resistance
Life
Thermal Shock
Mechanical Vibration
Mechanical Shock
Salt Spray
Moisture Resistance
Test Condition and Requirement
3 reflows at 245°C followed by a 2 mm bend, 20% DCR change max. (10% for ≤1A), no
mechanical damage
245°C, 5 seconds, new solder coverage 90% minimum
260°C (according to MIL-STD-202, Method 210, Test condition B)
25°C, 2000 hours, 80% rated current (75% for <1A), voltage drop change ≤±20%
-65°C to +125°C, 100 cycles, 10% DCR change max., no mechanical damage
5 – 3000 Hz, 0.4 inch double amplitude or 30 G peak, 10% DCR change max., no mechanical
damage
1500 G, 0.5 milliseconds, half-sine shocks, 10% DCR change max., no mechanical damage
5% salt solution, 48 hour exposure, 10% DCR change max., no excessive corrosion
10 cycles, 15% DCR change max., no excessive corrosion

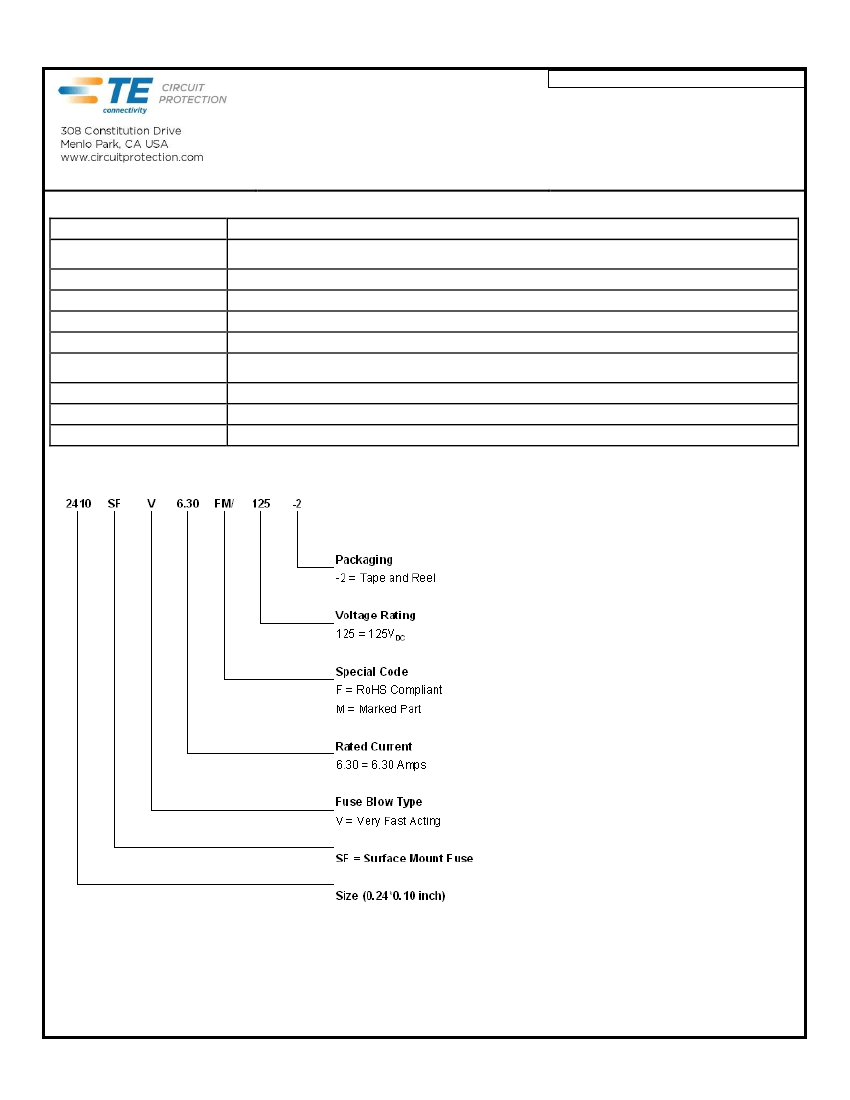

Part Naming for 2410 Devices
Surface Mount Fuse
Very Fast Acting
PRODUCT: 2410SFV Family (Marked)
DOCUMENT: SCD27651
REV LETTER: F
REV DATE: JANUARY 11, 2013
PAGE NO.: 5 OF 7

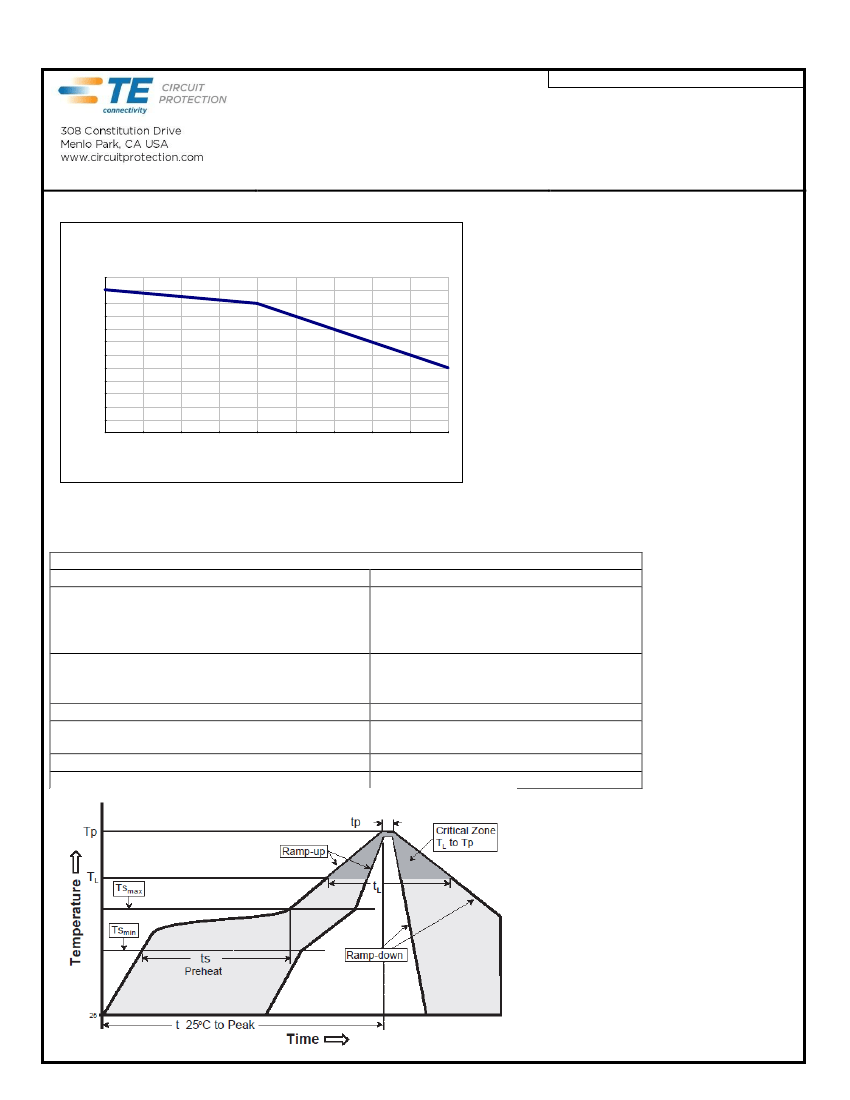

Temperature De-rating Curve for 2410 Devices
Temperature Effect On Current Rating
110
105
100
95
% De-rating
90
85
80
75
70
65
60
55
50
-55
-35
-15
5
25
45
65
85
105
125
Maximum Operating Temperature(℃)
Solder Reflow Recommendation for 2410 Devices
Profile Feature
Average ramp up rate (Ts
MAX
toTp)
Preheat
• Temperature min. (Ts
MIX
)
• Temperature max. (Ts
MAX
)
• Time (ts
MIN
to ts
MAX
) 60-180 seconds
Time maintained above:
• Temperature (T
L
)
• Time
(t
L
)
Peak/Classification temperature (Tp)
Time within 5°C of actual peak temperature
Time (tp)
From 25C to preheating (150C)
Ramp down rate
3°C/second max.
150°C
200°C
40 – 100 Seconds
200°C
30 Seconds Min.
250°C Max.
30 – 40 Seconds
40 – 100 seconds
